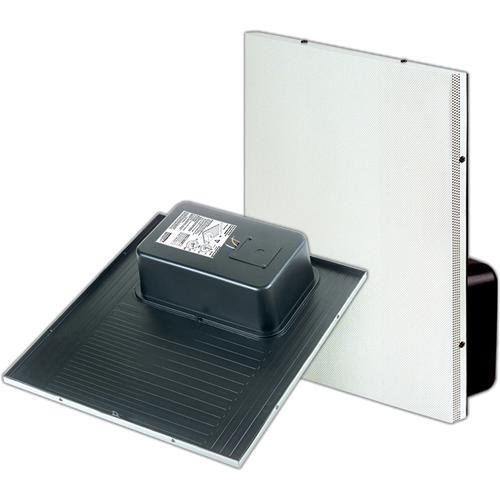

Product description The Bogen ACD2X2U Self-Amplified Drop-In Ceiling Speaker With Back Can and Recessed Volume Control is a full-range speaker that allows for fast and easy installation, which saves installation time, effort, and cost.
The 2' x 2' speaker fits perfectly into place in 2' x 2' ceiling grids, without needing to cut ceiling tiles or requiring the use of tile support rails. The ACD2X2 can also be easily installed in 2' x 4' ceiling grids. Just make one cut to the ceiling tile, position the support rail (included), and drop the speaker into place. - Features:
-
- Finely perforated grille over the entire front of speaker
- Fully enclosed, industrial grade steel construction
- Enclosed back can
- Self-contained 1-watt amplifier
- 8'' main cone with secondary high-frequency cone
- Available in off-white and bright white (“U” versions) grille finish
- Recessed Volume Control (front-mounted)
- Complies with Requirements of UL-2043
- Support Rail Crossbar (included)
- Seismic attachment points
In the Box Bogen Communications ACD2X2U Self-Amplified Drop-In Ceiling Speaker With Back Can and Recessed Volume Control (Pair) Tile Rail Limited 1-Year Warranty Guides & Manuals wdxrvfvbtecwrtdfustrzctabuvevzadwtfw Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications ACD2X2U Self-Amplified Drop-In Ceiling Speaker With Back Can and Recessed Volume Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Bogen Communications ACD2X2U Self-Amplified Drop-In Ceiling Speaker With Back Can and Recessed Volume Control can be downloaded in PDF format at the link stated below.
Technical parametersBogen Communications CSD2X2 Specs | Frequency Response | 95 Hz - 12 kHz | | Max SPL Level | 94 dB @ 1 W / 1 m | | Dispersion | 100° @ 2 kHz (6 dB down) | | Cone Material | Treated paper | | Speaker | 8" main cone with secondary high frequency cone | | Max Output Power | 1 W | | Typical Operational Current | 1 CU (50 mA) | | Input Impedance | 2000 ohms | | Input Sensitivity | 125 mV rms | | Supply Voltage | 24 V DC | | Magnet Weight | 10 oz. | | Connection | Via wire nuts (included in electrical box) | | Dimensions | 23.9 x 5 x 23.9" (61 x 12.7 x 61 cm) | | Weight | 12 lb (5.44 kg) | | | | Package Weight | 30.5 lb | | Box Dimensions (LxWxH) | 26.8 x 26.5 x 7.3" |
