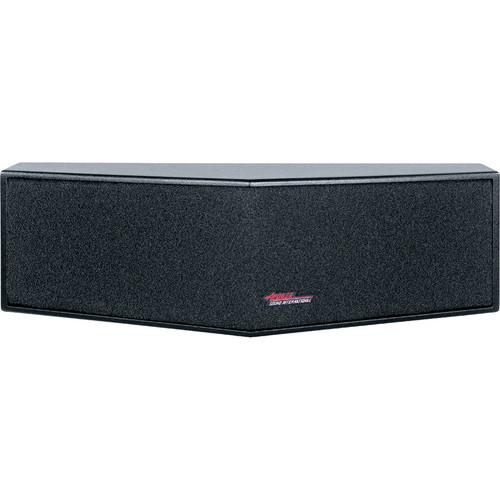

User Manual for Bogen Communications AE-2s2 Wide-Angle Loudspeaker System Click to enlarge the picture
Contents of the user manual for the Bogen Communications AE-2s2 Wide-Angle Loudspeaker System
- Product category: PA Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications PA Speakers
|
User manual for the Bogen Communications AE-2s2 Wide-Angle Loudspeaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The white Bogen Communications AE-2s2 Wide-Angle Loudspeaker System from Apogee Sound International is a wide-angle, two-way, single-amped system designed for extended horizontal dispersion and high-fidelity response. The shape of the enclosure produces a wide coverage angle (165°) while minimizing sight-line obstructions. - Low Frequency
- Dual Apogee 8" (204mm) permanent magnet cone-type drivers are treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters
- High Frequency
- Dual Apogee 1" (25mm) horn-loaded compression drivers
- Input Connectors
- Neutrik NL4MP Speakon connectors
- Compatible Processors
- DLC24 Digital Controller
- Grille
- Powder-coated, diamond-punched steel with acoustic foam covering
- Finish
- Textured high-strength white epoxy paint
- Enclosure Type
- Compound angular trapezoidal, optimally vented bass
- Cabinet Construction
- Multi-ply birch with stainless-steel fasteners
In the Box Bogen Communications AE-2s2 Wide-Angle Loudspeaker System (White) Limited 1-Year Warranty Data Sheet PDF 274.6kbddexqvrrcdsefvbtawsyfzzbvbbrvssuffs Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications AE-2s2 Wide-Angle Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications AE-2s2 Specs | Format | Single-amped / 2-way / Electronically-coupled | | Dispersion | 165° x 45° (H x V) | | Frequency Response | 63 Hz to 19 kHz ± 3 dB (1 m on axis) | | Maximum SPL | 114 dB continuous / 120 dB peak (@ 1 m) | | PTML (Peak Transient Mechanical Limit) | 131 dB | | Sensitivity | 97.4 dB / 200 Hz to 4 kHz (1 W @ 1 m) | | Nominal Impedance | 16 Ω | | Maximum Power Handling | 120 W continuous / 480 W peak | | Dimensions | Front (W x H): 32.0 x 9.9" (813.0 x 252.0 mm)
Rear (W x H): 32.0 x 8.5" (813.0 x 216.0 mm)
Depth: 10" (254 mm) | | Weight | 38.0 lb (17.3 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
