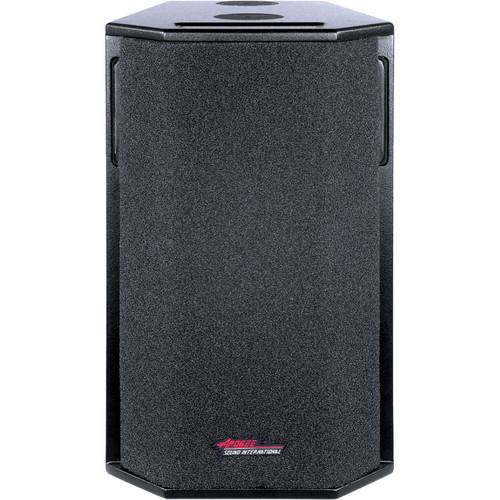

Product description The Bogen Communications white AE-5 Arrayable Loudspeaker System from Apogee Sound International is a two-way, bi-amped system, and is the flagship of the Apogee line. This fully arrayable system functions brilliantly when used alone or as a building block for a large sophisticated system. - Low Frequency
- One Apogee 12" (305mm) permanent magnet cone-type driver is treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters
- High Frequency
- One Apogee 1" (25mm) throat composite diaphragm compression driver is treated with Ferrofluid for greater power handling capability, lower distortion, and control of short-term impedance rise
- Input Connectors
- Neutrik NL4MP Speakon connectors
- Compatible Processors
- DLC24 Digital Controller
- Handles
- Four handles designed as an integral part of the enclosure (no moving parts)
- Grille
- Powder-coated, diamond-punched steel with acoustic foam covering
- Rigging Hardware
- Four 12-gauge steel nut plates, mounted two on top and two on bottom, recessed, nominally flush; accepts 3/8"-16 thread (10mm nut plate or Aeroquip Pan fittings sold separately); nut plates are backed with 12-gauge steel internal brackets
- Finish
- Textured high-strength white epoxy paint
- Enclosure Type
- 20° trapezoidal, optimally vented bass
- Cabinet Construction
- Multi-ply birch with stainless-steel fasteners
In the Box Bogen Communications AE-5 Arrayable Loudspeaker System (White) Limited 1-Year Warranty Data Sheet PDF 256.8kbddexqvrrcdsefvbtawsyfzzbvbbrvssuffs Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications AE-5 Arrayable Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications AE-5 Specs | Format | Bi-amped / 2-way / Electronically-coupled | | Dispersion | 90° x 45° (H x V) | | Frequency Response | 53 Hz to 17 kHz ± 3 dB (1 m on axis) | | Maximum SPL | 125 dB continuous / 131 dB peak | | PTML (Peak Transient Mechanical Limit) | 144 dB | | Sensitivity | LF: 99 dB/100 Hz to 1 kHz (1 W @ 1 m)
HF: 106 dB/1 kHz to 20 kHz (1 W @ 1 m) | | Nominal Impedance | 8 Ω each driver | | Maximum Power Handling | LF: 300 W continuous / 1200 W peak
HF: 150 W continuous / 600 W peak | | Dimensions | Front (W x H): 14 x 23" (356 x 584 mm)
Rear (W x H): 9.3 x 23.0" (236.0 x 584.0 mm)
Depth: 16.5" (419.0 mm) | | Weight | 76.0 lb (34.5 kg) |
