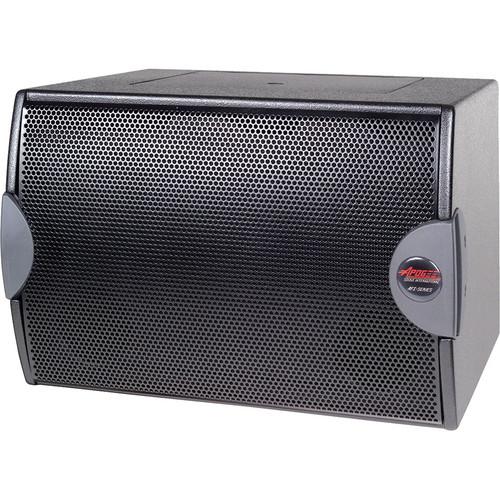

User Manual for Bogen Communications AFI-110 Subwoofer System Click to enlarge the picture
Contents of the user manual for the Bogen Communications AFI-110 Subwoofer System
- Product category: PA Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications PA Speakers
|
User manual for the Bogen Communications AFI-110 Subwoofer System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The Bogen Communications white AFI-110 Subwoofer System from Apogee Sound International is a compact yet powerful dual voice coil, long excursion subwoofer capable of extending the range of any small loudspeaker. The AFI-110 is small enough to fit just about anywhere allowing it to easily integrate into interiors. For smaller facilities, the dual voice coils allow a single unit to produce left and right low frequency signals. - Frequency
- One Apogee 10" (254mm) dual voice coil permanent magnet cone-type driver
- Input Connectors
- Barrier strip, screw type #8
- Compatible Processors
- AFI-110 Controller or DLC24
- Recommended Crossover
- LF cutoff 40 Hz, HF cutoff 200 Hz, 12 to 48 dB per octave
- Handles
- Two handles - one at the top, one at the bottom, designed as an integral part of the enclosure (no moving parts)
- Grille
- Powder-coated, perforated steel
- Trim
- Protective steel trim pieces on top and bottom edges (sold separately; powder-coated for durability)
- Rigging Hardware
- Yoke: Two rigging points, one on each side, to accept a yoke; points are backed with 16-gauge steel and can be type 3/8" - 16 or M10 thread
OmniMount: Bolt pattern on back panel accepts 60.0 series mount - Finish
- Textured high-strength black or white epoxy paint
- Enclosure Type
- Rectangular, band-pass bass
- Cabinet Construction
- Multi-ply hardwood with stainless steel fasteners
In the Box Bogen Communications AFI-110 Subwoofer System (White) Limited 1-Year Warranty Data Sheet PDF 376.9kbddexqvrrcdsefvbtawsyfzzbvbbrvssuffs Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications AFI-110 Subwoofer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications AFI-110 Specs | Format | Band-pass | | Dispersion | Omni-directional | | Frequency Response | 48 Hz to 145 kHz ± 3 dB | | Maximum SPL | 114 dB continued / 120 dB peak | | PTML (Peak Transient Mechanical Limit) | 131 dB | | Sensitivity | 93 dB (1W @ 1m) | | Nominal Impedance | 8 Ω per voice call | | Maximum Power Handling | 150 W continued / 600 W peak | | Dimensions (W x H x D) | 12.70 x 18.70 x 16.25" (232.00 x 475.00 x 413.00 mm) | | Weight | 40 lb (18 kg) |
