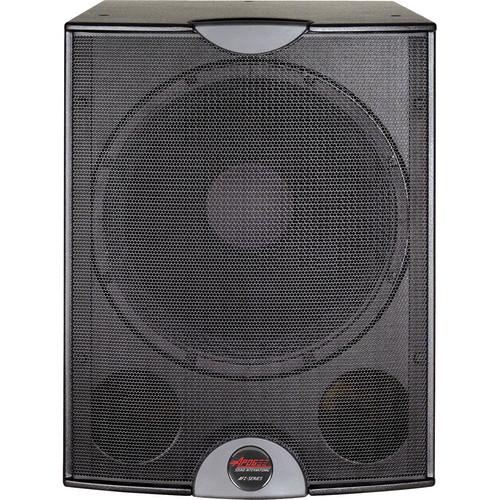

User Manual for Bogen Communications AFI-118 Subwoofer System Click to enlarge the picture
Contents of the user manual for the Bogen Communications AFI-118 Subwoofer System
- Product category: PA Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications PA Speakers
|
User manual for the Bogen Communications AFI-118 Subwoofer System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The Bogen Communications white AFI-118 Subwoofer System from Apogee Sound International features a high-power, long-excursion, 18" (460mm) cone driver capable of deep, rich, and powerful bass. It works well in combination with the AFI-8 or other AFI full-range speakers. The AFI-118 is suitable for multi-media presentations, clubs, places of worship, discos, concert halls, and theaters. - Frequency
- Apogee 18" (460mm) permanent magnet cone-type driver is treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters
- Input Connectors
- Barrier strip, screw type #8
- Compatible Processors
- AFI Main Frame Controller Chassis (using AFI-118 Module) or DLC24
- Recommended Crossover
- Contact Apogee for full technical data on other DSP-based processors
- Handles
- Two handles - one at the top, one at the bottom, designed as an integral part of the enclosure (no moving parts)
- Grille
- Highly durable, quality finish on perforated steel
- Rigging Hardware
- Fourteen rigging points; four each on top and bottom, two each on both sides and rear, all backed with 16-gauge steel; points can be type 3/8"-16 or M10 thread
- Finish
- Textured high-strength white epoxy paint
- Enclosure Type
- Rectangular, band-pass bass
- Cabinet Construction
- Multi-ply hardwood
In the Box Bogen Communications AFI-118 Subwoofer System (White) Limited 1-Year Warranty Data Sheet PDF 372kbwfzddzfdwezytcuuuresefzutcayztvd Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications AFI-118 Subwoofer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications AFI-118 Specs | Format | Front loaded | | Dispersion | Omnidirectional | | Frequency Response | 30 Hz to 70 Hz ± 3 dB (1 m on axis) | | Maximum SPL | 125 dB continuous / 131 dB peak (@ 1 m) | | PTML (Peak Transient Mechanical Limit) | 154 dB | | Sensitivity | 98 dB SPL (1 W @ 1 m) | | Nominal Impedance | 8 Ω | | Maximum Power Handling | 600 W continuous / 2400 W peak | | Dimensions (W x H x D) | 21.0 x 27.0 x 27.1" (534.0 x 686.0 x 689.0 mm) | | Weight | 97 lb (44 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
