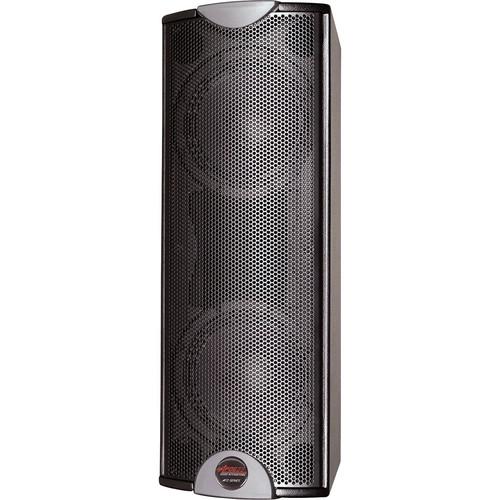

User Manual for Bogen Communications AFI-2s2 Contractor Series Loudspeaker System Click to enlarge the picture
Contents of the user manual for the Bogen Communications AFI-2s2 Contractor Series Loudspeaker
- Product category: PA Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications PA Speakers
|
User manual for the Bogen Communications AFI-2s2 Contractor Series Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The Bogen Communications white AFI-2s2 Contractor Series Loudspeaker System from Apogee Sound International is suitable for smaller spaces with poor acoustics with its carefully arranged woofers as it extends vertical pattern control down to 500 Hz. It is well suited for use as the main speaker in mid-sized houses of worship, auditoriums, and meeting rooms. With 120dB max SPL, the AFI-2s2 is powerful enough for bars and small clubs. - Low Frequency
- Dual Apogee 8" (203mm) permanent magnet cone type drivers are treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters
- High Frequency
- Dual Apogee 8" (203mm) permanent magnet cone type drivers are treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters
- Input Connectors
- Barrier strip, screw type #8
- Compatible Processors
- AFI Main Frame Controller Chassis (using AF I-2 Module) or DLC24
- Handles
- Two handles - one at the top, one at the bottom, designed as an integral part of the enclosure (no moving parts)
- Trim
- Protective steel trim pieces on top and bottom edges (sold separately; powder-coated for durability)
- Rigging Hardware
- Yoke: Two rigging points, one on each side, to accept a yoke; points are backed with 16-gauge steel and can be type 3/8" - 16 or M10 thread
OmniMount: Bolt pattern on back panel accepts 60.0 series mount - Finish
- Textured high-strength black or white epoxy paint
- Enclosure Type
- 20° trapezoidal, optimally-vented bass
- Cabinet Construction
- Multi-ply hardwood with stainless steel fasteners
In the Box Bogen Communications AFI-2s2 Contractor Series Loudspeaker System (White) Limited 1-Year Warranty Data Sheet PDF 406.5kbxxaafybuvrzudruyeyfwbfyvzqcbzw Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications AFI-2s2 Contractor Series Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications AFI-2s2 Specs | Format | Passive / 2-way | | Dispersion | 75° x 60° (H x V) rotatable | | Frequency Response | 66 Hz to 15.5 kHz ± 3 dB (1m on axis) | | Maximum SPL | 120 dB continued / 126 dB peak | | PTML (Peak Transient Mechanical Limit) | 135 dB | | Sensitivity | 96 dB (1W @ 1m) | | Nominal Impedance | 16 Ω | | Maximum Power Handling | 225 W continued / 900 W peak | | Dimensions | Front (W x H): 9.7 x 26.4" (247.0 x 671.0 mm)
Rear (W x H): 5.8 x 26.4" (148.0 x 671.0 mm)
Depth: 12.7" (323.0 mm) | | Weight | 36.0 lb (16.3 kg) |
