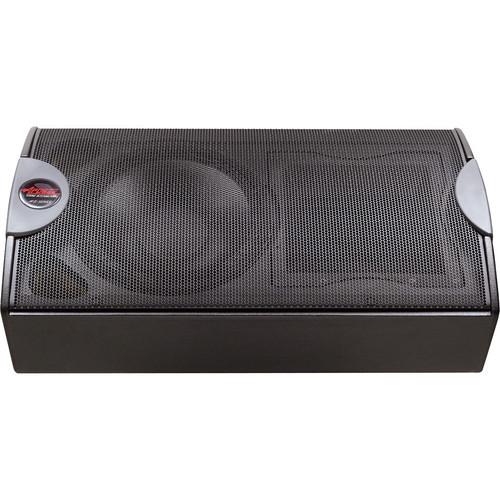

User Manual for Bogen Communications AFI-4MSX Stage Monitor with SX Weather Treatment Click to enlarge the picture
Contents of the user manual for the Bogen Communications AFI-4MSX Stage Monitor with
- Product category: PA Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications PA Speakers
|
User manual for the Bogen Communications AFI-4MSX Stage Monitor with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The black AFI-4MSX Stage Monitor from Bogen Communications is a 2-way multi-angle monitor available in a passive or bi-amplified configuration. Additionally, a high-frequency horn is available in both a 60 x 45° rotatable pattern. This makes the monitor suitable for both flown and floor monitoring applications. Driver Complement - Low Frequency: One Apogee 12.0" (304.8mm) permanent magnet cone-type driver is treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters; also treated with Ferrofluid for greater power handling capability, lower distortion, and control of short-term impedance rise.
- High Frequency One Apogee 1.75" (44.45mm) voice coil, 1.0" (25.4mm) exit horn-loaded compression driver treated with Ferrofluid
Handles - Two handles, one on each end, designed as an integral part of the enclosure (no moving parts)
Finish - Textured high-strength black epoxy paint finish.
In the Box Bogen Communications AFI-4MSX Stage Monitor with SX Weather Treatment (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications AFI-4MSX Stage Monitor with SX Weather Treatment in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications AFI-4 Specs | Format | Passive Two-Way | | Dispersion | H x V: 60 x 45° (rotatable) | | Frequency Response | 3.2' (1.0 m) on Axis: 58 Hz to 20 kHz ±3 dB | | SPL | Maximum at 1m:
121 dB continuous
127 dB peak | | PTML (Peak Transient Mechanical Limit) | 138 dB | | Sensitivity | 1 W at 3.2' (1.0 m): 99 dB SPL/ 100 Hz to 4 kHz | | Nominal Impedance | 8 Ω, each driver | | Maximum Power Handling | 200 W continuous
800 W peak | | Input Connectors | 2 Neutrik NL4 MP Speakon connectors, one on each end | | Grille | Highly durable, quality finish on perforated aluminum | | Enclosure Type | Multi-angle floor monitor; optimally-vented bass | | Trim | 4 steel skids; powder-coated for durability | | Cabinet | Multi-ply hardwood | | Dimensions (W x H x D) | 28.1 x 14.7 x 14.9" (713.7 x 373.3 x 378.4 mm) | | Weight | 53 lb (24 kg) |
