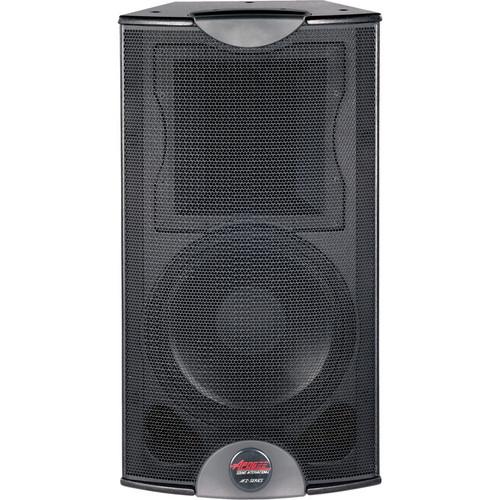

Product description The white AFI-4W 2-Way Loudspeaker System from Bogen Communications is a fully arrayable loudspeaker suitable for clubs, discos, churches, theaters, and theme parks. Much of its versatility comes from the 90 x 45° horn and bi-amplification capabilities. The horns and the logo plate are rotatable to allow alternative hanging positions.
This full range speaker utilizes a 12.0” (304.8mm) Ferrofluid-cooled, moisture-stabilized, neodymium woofer and a 1.0” (25.4mm) exit Ferrofluid-cooled compression driver mounted to a rotatable 90° horizontal by 45° vertical non-resonant urethane horn. The unit also has a frequency response of 58 Hz to 20 kHz ±3 dB and a maximum long term SPL of 121 dB with a sensitivity of 99 dB. It is constructed using 13 ply/in. void-free birch plywood with an input and loop through on number 8 barrier strips.
The speaker also has fourteen 3/8 x 16 steel-backed rigging points, a bolt pattern on the rear panel to accept a third-party articulating mount, and 2 integral handles (cannot be used as fly points). In the Box Bogen Communications AFI-4W 2-Way Passive Loudspeaker System (White) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications AFI-4W 2-Way Passive Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications AFI-4 Specs | Format | Passive / 2-way | | Drivers | LF: 12.0" (304.8 mm) driver
HF: 1.75" (44.45 mm) voice coil, 1.0" (25.4 mm) driver exit | | Dispersion | 90 x 45° (H x V: rotatable) | | Frequency Response | 3.2' (1.0 m) on Axis: 58 Hz to 20 kHz ± 3 dB | | SPL | Maximum at 3.2' (1 m): 121 dB | | Sensitivity | 1 W at 3.2' (1.0 m): 99 dB / 58 Hz to 20 kHz +/-3 dB | | Nominal Impedance | 8 Ω, each driver | | Dimensions | Front (W x H): 15.3 x 28.2" (388.6 x 716.2 mm)
Rear (W x H): 9.9 x 28.2" (251.4 x 716.2 mm)
Depth: 12.1" (307.4 mm) | | Weight | 53 lb (24 kg) |
