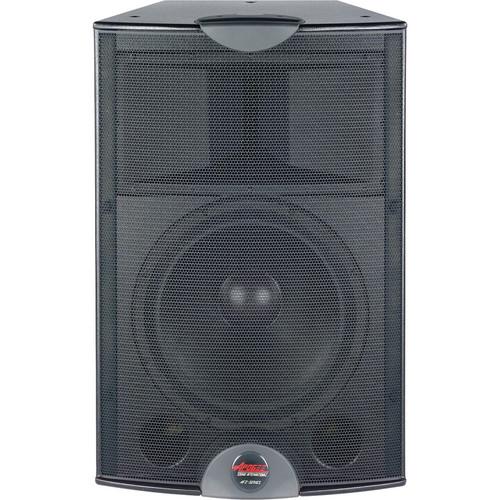

User Manual for Bogen Communications AFI-8 Contractor Series Biamplified Loudspeaker System Click to enlarge the picture
Contents of the user manual for the Bogen Communications AFI-8 Contractor Series Biamplified
- Product category: PA Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications PA Speakers
|
User manual for the Bogen Communications AFI-8 Contractor Series Biamplified contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The white AFI-8 Contractor Series Biamplified Loudspeaker System from Bogen Communications is capable of filling large churches, theaters, sports venues, and theme parks with clean, articulate, full bandwidth sound. This loudspeaker system is available with a 60 x 40° high-frequency horn pattern, insuring that the AFI-8 works efficiently in any room configuration. - Low Frequency
- One Apogee 15" (381mm) permanent magnet conetype driver is treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters; also treated with Ferrofluid for greater power handling capability, lower distortion, and control of short-term impedance rise
- High Frequency
- One Apogee 3" (76mm) voice coil, 2" (51mm) exit horn-loaded compression driver treated with Ferrofluid for efficient power handling capability, lower distortion, and control of shortterm impedance rise
- Input Connectors
- Barrier strip, screw type #8
- Handles
- Two handles - one top, one bottom - designed as an integral part of the enclosure (no moving parts)
- Grille
- Highly durable, quality finish on perforated steel
- Rigging Hardware
- Fourteen rigging points, four each on top and bottom, two each on both sides and rear, all backed with 16-gauge steel; points can be type 3/8"-16 or M10 thread
- Finish
- Textured high-strength white epoxy paint
- Enclosure Type
- 30° trapezoidal, optimally-vented bass
- Cabinet Construction
- Multi-ply hardwood
In the Box Bogen Communications AFI-8 Contractor Series Biamplified Loudspeaker System (White) Limited 2-Year Warranty Data Sheet PDF 413.9kbrvbeuyvcdqefeywxbvtbyqetefvysy Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications AFI-8 Contractor Series Biamplified Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications AFI-8 Specs | Configuration | Bi-amped/Two-way | | Dispersion | 60 x 40° | | Frequency Response | At 1 m on axis: 46 Hz to 20 kHz ± 3 dB | | Maximum SPL | At 1 m: 125 dB cont./131 dB peak | | PTML (Peak Transient Mechanical Limit) | 142 dB | | Sensitivity | At 1W @ 1 m
LF: 99 dB SPL/100 Hz to 900 Hz
HF: 104 dB SPL/900 Hz to 5 kHz | | Nominal Impedance | 8 Ω, each driver | | Maximum Power Handling | LF: 400 W cont./1600 W peak
HF: 150 W cont./600 W peak | | Dimensions (W x H x D) | Front: 20.25 x 30.25 x 15.1" (515 x 769 x 384 mm)
Rear: 13.3 x 30.25 x 15.1" (338 x 769 x 384 mm) | | Weight | 77 lb (35 kg) |
