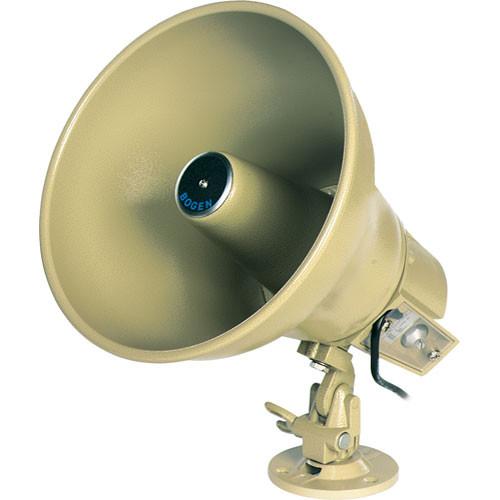

Product description The mocha Bogen Communications AH5A is a 5W amplified paging horn offering extended frequency response and versatile positioning for paging, talkback, background music, and security applications in work sites, schools, parking lots, warehouses, and more. With a built-in amplifier, it delivers a 5W output, a maximum SPL of 116 dB, and a frequency response of 275 Hz to 14 kHz while maintaining low current draw. It operates via a 24 VDC power source. Its weatherproof, all-aluminum housing ensures reliable durability indoors and outdoors, and can be precisely tilted and swiveled via the universal mount. Banding slots allow mounting to a beam or pillar, and alternative mounting options are supported via separately available accessories. The screwdriver-adjustable volume control is protected by a plastic cover, which also provides cable strain relief. The 4-conductor cable is color-coded to ensure simple wiring to audio and power sources. - Screwdriver-adjustable volume control
- 4-conductor, color-coded cable for quick connection to audio and power sources
- Weatherproof, all-aluminum housing
- Plastic cover protects volume control and provides cable strain relief
- Universal tilt-and-swivel mount
- Banding slots allow easy attachment to a beam or pillar
- Self-aligning, field-replaceable diaphragm
- Durable textured mocha enamel finish
- Mount to I-beam flange using Bogen BC1 beam clamp (available separately)
- Mount to electrical box using Bogen HSES10 mounting strap (available separately)
- Bogen TCSPT1 terminal cover (available separately) enables connection of conduit fittings
UPC: 765368310092 In the Box Bogen Communications AH5A Amplified Paging Horn with Volume Control (Mocha, 5W) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications AH5A Amplified Paging Horn with Volume Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications AH5A Specs | Power Rating | 5 W RMS | | Maximum SPL | 116 dB at 4' on axis with rated input at 1 kHz | | Frequency Response | 275 Hz to 14 kHz | | Sensitivity | 32 mV across 600 Ohms | | Input Impedance | 1000 Ohms | | Dispersion | 110° | | Current Consumption | 6 CU / 300 mA typical | | Power Requirement | 24 VDC nominal | | Cable | 4-conductor | | Construction Material | Weatherproof aluminum | | Dimensions (Diam. x Depth) | 9.0 x 9.3" / 22.9 x 23.5 cm | | Weight | 4 lb / 1.8 kg | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 10.2 x 9.1 x 8.8" |
