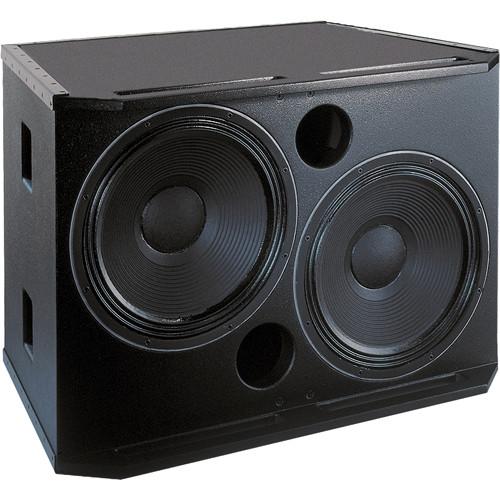

User Manual for Bogen Communications APL-10 Self-Powered Concert Subwoofer System Click to enlarge the picture
Contents of the user manual for the Bogen Communications APL-10 Self-Powered Concert Subwoofer
- Product category: PA Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications PA Speakers
|
User manual for the Bogen Communications APL-10 Self-Powered Concert Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The Bogen Communications white APL-10 Self-Powered Concert Subwoofer System from Apogee Sound International incorporates internal amplifiers and intelligent, front-end signal processing into a robust enclosure designed for concert touring, AV presentations, and fixed installations. The dual cone drivers provide powerful, deep bass with rapid transients for a crisp, clean, and accurate sonic image. - Advanced Technologies
- All-digital amplifier operating at 350 kHz provides high power levels with extremely low distortion. State-of-the-art digital processing circuits render pristine sound quality. Advanced limiter algorithms provide precise system control without harming sound quality at even the most aggressive levels. Universal AC voltage compatibility
- Power Amplifiers
- Dual amplifiers, one per driver, total 2,400W total music power
- Frequency
- Dual Apogee 15" (381mm) permanent magnet cone-type drivers are treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters; also treated with Ferrofluid for greater power handling capability, lower distortion, and control of short-term impedance rise
- Handles
- Four handles designed as an integral part of the enclosure (no moving parts)
- Grille
- Powder-coated, diamond-punched steel with acoustic foam covering
- Rigging Hardware
- Four 12-gauge steel nut plates, mounted two on top and two at the bottom, recessed so as to be nominally flush; accepts 3/8"-16 thread, nut plates are backed with 12-gauge steel internal brackets (10mm nut plate or Aeroquip Pan fittings sold separately)
- Enclosure Type
- 20° trapezoidal, optimally vented bass
- Cabinet Construction
- Multi-ply birch with stainless-steel fasteners
In the Box Bogen Communications APL-10 Self-Powered Concert Subwoofer System (White) Power Cable Limited 3-Year Warranty Data Sheet PDF 226.4kbfuqecafcwtarcbbwwtwdyarr Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications APL-10 Self-Powered Concert Subwoofer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications APL-10 Specs | | | Input | XLR, active balanced 35 kΩ | | Output | Loop-Through: Daisy-chain audio signal, XLR-type connector | | Amplifier Power | 2,400 W total music power, dual amplifiers | | Limiter | RMS: 100 ms long duration protection
Peak: 3 to 5 ms transient protection | | Cooling | Passive using external heat sinks | | Voltage | 115 VAC or 230 VAC selection switch, Neutrik Powercon AC inlet with loop-through; power cable included | | | | Format | Self-contained dual power amplifiers with integrated processing electronics | | Dispersion | Omnidirectional | | Frequency Response | 34 Hz to 100 Hz ± 3 dB (1 m on axis) | | Maximum SPL | 131 dB continuous / 137 dB peak (@ 1 m) | | Dimensions (W x H x D) | 32.0 x 22.5 x 24.0" (813.0 x 572.0 x 610.0 mm) | | Weight | 145.0 lb (65.8 kg) |
