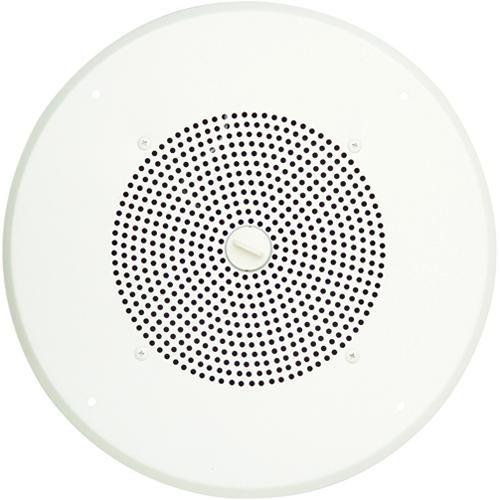

User Manual for Bogen Communications ASUG1DK 8" 1W Amplified Ceiling Speaker with Detachable Volume Knob Click to enlarge the picture
Contents of the user manual for the Bogen Communications ASUG1DK 8" 1W Amplified
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications ASUG1DK 8" 1W Amplified contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description Finished in bright white, the Bogen Communications ASUG1DK is an 8" 1W amplified speaker assembled on a ceiling grille for paging, talkback, background music, and security applications in schools, warehouses, offices, and more. With a built-in amplifier and an 8" cone-type loudspeaker, it delivers a 1W output, a maximum SPL of 92 dB, and a frequency response of 100 Hz to 10 kHz. It operates via a 24 VDC power source. Integrate the ASUG1DK with a standard 600-Ohm telephone line, and adjust the volume via the detachable knob without having to remove the speaker or grille. The grille is constructed of steel to maintain rigidity, and features a durable enamel coating. - Self-contained 1W amplifier
- Interfaces with standard 600-Ohm telephone line
- Adjustable volume via detachable front-mounted knob
- Assembled on a steel ceiling grille for recessed installation
- Finished in semi-gloss enamel
UPC: 765368310320 In the Box Bogen Communications ASUG1DK 8" 1W Amplified Ceiling Speaker with Detachable Volume Knob (Bright White) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications ASUG1DK 8" 1W Amplified Ceiling Speaker with Detachable Volume Knob in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications ASUG1DK Specs | Speaker Size | 8" / 20.3 cm | | Maximum Output | 1 W | | Maximum SPL | 92 dB at 4' on axis with 1 W output at 1 kHz | | Frequency Response | 100 Hz to 10 kHz | | Input Sensitivity | 125 mV | | Input Impedance | 2 kOhms | | Dispersion | 90° | | Current Consumption | 1 CU / 50 mA | | Power Requirement | 24 VDC | | Construction Material | Steel ceiling grille | | Diameter | 12.9" / 32.7 cm | | Weight | 5 lb / 2.3 kg | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 15.0 x 14.0 x 4.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
