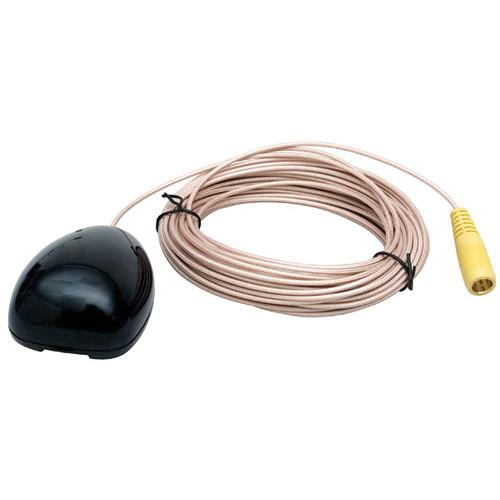

User Manual for Bogen Communications BCIRS Infrared Sensor with Mounting Brackets and 35' Cable Click to enlarge the picture
Contents of the user manual for the Bogen Communications BCIRS Infrared Sensor with
- Product category: Components & Accessories Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Components & Accessories
|
User manual for the Bogen Communications BCIRS Infrared Sensor with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The Bogen Communications BCIRS Infrared Sensor features a multiple array of wide-angle infrared-sensitive LEDs, a 35’ (10.67m) connecting cable with coaxial-type connector, and mounting brackets. The IR sensors act as antennae for the IR wireless microphone systems. A multiple array of wide-angle IR-sensitive LEDs placed behind the front-panel receptors receive the infrared signal emitted by the IR transmitter.You can connect the BCIRS IR Sensor to the BCWR Receiver (sold separately) by plugging both sensor coaxial-type plugs into the infrared sensor inputs. Each sensor input will receive both Channels A and B. Connect the BCIRS Sensor to the rear jacks on the BCWR Receiver and turn the BCWR Receiver ON. The Sensor Power LED will light to indicate that the sensor is properly connected to the BCWR Receiver. The Channel A and B IR LED indicators will light green when an infrared signal on the corresponding channel is detected.The BCIRS Sensor can be mounted on any surface using any of the included mounting brackets and screws. UPC: 765368370119 In the Box Bogen Communications BCIRS Infrared Sensor with Mounting Brackets and 35' Cable Mounting Brackets 35' (10.67m) Cable Limited 1-Year Warranty Table of Contents
|
