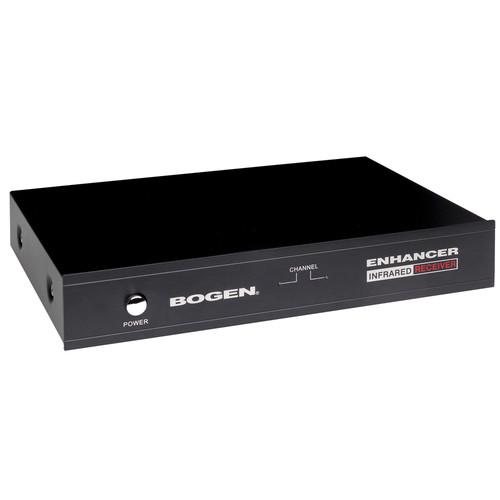

User Manual for Bogen Communications BCWR 2-Channel IR Wireless Microphone Receiver Click to enlarge the picture
Contents of the user manual for the Bogen Communications BCWR 2-Channel IR Wireless
- Product category: Components & Accessories Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Components & Accessories
|
User manual for the Bogen Communications BCWR 2-Channel IR Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The Bogen Communications BCWR Wireless Microphone Receiver offers a 2-channel operation simultaneously with 2 transmitters (sold separately). It provides an unbalanced, line-level mixed output through its RCA-type connector. - 2-Channel receiver offers a simultaneous 2-channel operation for 2 transmitters (Ch. A, Ch. B)
- Infrared signal reception LED indicators
- Channel A/B mixed audio output RCA-type connector
- Separate channel A and channel B volume controls
- 2 IR sensor coaxial-type inputs
UPC: 765368370034 In the Box Bogen Communications BCWR 2-Channel IR Wireless Microphone Receiver 16VAC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications BCWR 2-Channel IR Wireless Microphone Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications BCWR Specs | Mode | Infrared Frequency Modulated | | Receiving Channels | Dual-Channels A & B | | Carrier Frequency | Ch A: 2.0 MHz
Ch B: 2.6 MHz | | Audio Frequency Response | 60 Hz to 12 kHz | | Signal to Noise Ratio | >90 dB | | Audio Output | Audio Mix Output: 400 mV, unbalanced | | Operating Range | Up to 30.0' (9.14 m), line of sight | | Controls | Power On/Off (front); Ch A and Ch B Volume Controls (rear) | | Connectors | 2 x IR Sensor Coaxial-type jacks (rear)
1 x Ch A/B Audio Mixer output, RCA-type jack (rear)
1 x AC Power input jack (rear) | | Power Requirements | 16 VAC, 600 mA (via AC adapter) | | Power Consumption | 8 W | | Dimensions (W x H x D) | 10.6 x 2.0 x 7.4" (26.9 x 5.1 x 18.8 cm) | | Weight | 4.0 lb (1.8 kg) |
