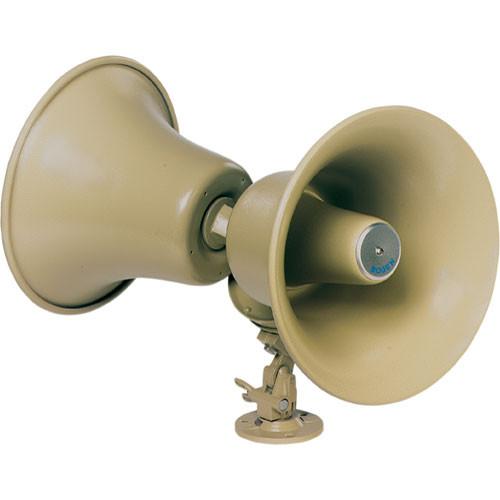

User Manual for Bogen Communications BDT30A 30W Bidirectional Twin-Horn Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bogen Communications BDT30A 30W Bidirectional Twin-Horn
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications BDT30A 30W Bidirectional Twin-Horn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The mocha Bogen Communications BDT30A is a 30W bidirectional twin-horn loudspeaker offering wide-angle coverage for paging, talkback, and security applications in work sites, schools, parking lots, warehouses, and more. Each horn delivers a dispersion angle of 100 degrees. The integrated 7-position watts/impedance switch allows simple tap configuration for operation with 25V or 70V constant-voltage systems.With a weatherproof design, metal construction, and a textured enamel finish, it ensures reliable durability indoors and outdoors. A protective cover shields the screw terminals and provides cable strain relief to inhibit damage to the connections. Easily install the BDT30A via its all-purpose mounting bracket or a separately available clamp or strap. - Twin reentrant horns for bidirectional projection
- Ideal for one-way and talkback paging applications
- Sturdy, weatherproof all-metal construction
- Up to 30W at 70V or 15W at 25V
- Rotary tap impedance selector switch
- Screw terminals allow fast and easy installation
- Self-aligning, field-replaceable diaphragm for easy maintenance
- All-purpose mounting bracket for simple installation
- Mountable to I-beam flange using Bogen BC1 beam clamp (available separately)
- Mountable to electrical box using Bogen HSES10 mounting strap (available separately)
- Supports connection of conduit fittings via Bogen TCSPT1 terminal cover (available separately)
UPC: 765368360097 In the Box Bogen Communications BDT30A 30W Bidirectional Twin-Horn Loudspeaker (Mocha) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications BDT30A 30W Bidirectional Twin-Horn Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications BDT30A Specs | Power Rating | 30 W RMS continuous
40 W RMS equalized | | Power Taps | Watts at 25 V: 1.8, 3.7, 7.5, 15
Watts at 70 V: 1.8, 3.7, 7.5, 15, 30 | | Frequency Response | 225 Hz to 14 kHz | | Impedance | 25/70 V | | SPL | 121 dB at 4' on axis with 30 W input at 1 kHz, each horn | | Beamwidth | 100° each horn | | Sensitivity | As Microphone: -22 dBm (ref: 10 dynes/cm
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
