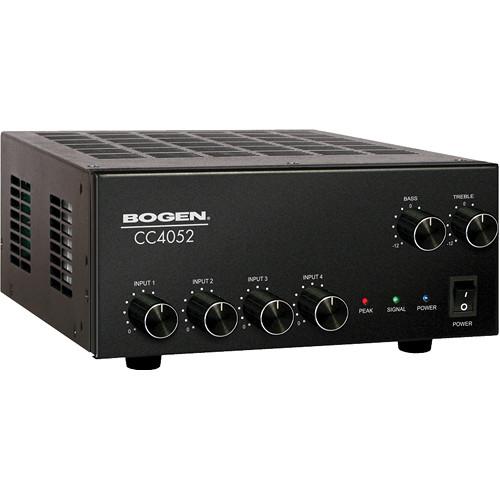

Product description The CC4052 from Bogen Communications is a compact mixer-amplifier that provide 40 watts of output power for installations such as restaurants, bars, retail establishments, among others. The unit features four inputs, three balanced microphone/line, one unbalanced auxiliary, and one telephone input, all with individual volume controls.
Features include two audio-activated priority muting levels (Input 1 can be disabled), individual phantom power on all the microphone inputs, bass and treble controls, peak and signal indicators, and a record output. Compatible with 70V, 25V, 4 Ω and 8 Ω speaker systems, the unit housed in a half-rack, 2U enclosure, allowing for two units to be placed side-by-side.
An optional rack mount adapter is available for single and side-by side configurations. - Three balanced microphone/line inputs
- Unbalanced auxiliary input
- Dedicated transformer-isolated telephone input with input level control
- Phantom power for all microphones inputs
- Volume controls for each input
- Two levels of muting priority
- Defeatable muting (Input 1)
- Compatible with 70V, 25V, 4 and 8 Ω systems
- Signal and peak indicator
- External 24V DC supply input
- Optional rack mount adapter available for single and side-by-side configurations
UPC: 765368482096 In the Box Bogen Communications CC4052 - Mixer-Amplifier with Telephone Mute Input for Installs AC Power Cable Three (3) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications CC4052 - Mixer-Amplifier with Telephone Mute Input for Installs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications CC4052 Specs | Output Power | 40W RMS; minimum 1 kHz @ rated distortion; continuous operation at 1/3 of Full Rated Power (FRP) | | Frequency Response | Balanced Microphone/Line: 100 Hz to 20 kHz, 0/-3 dB
Unbalanced Input: 80 Hz to 20 kHz, 0/-3 dB | | Distortion | Balanced Microphone/Line: <1% THD+N
Unbalanced Input: <1% THD+N | | Output Regulation | 2 dBr or better, no-load to full-load | | Output Impedance | 70V, 25V, 4 Ω, 8 Ω | | Record Output | 1.14V @ Full Rated Power (FRP) | | Sensitivity | Balanced Microphone: 1.15 mVrms (200 Ω)
Balanced Line: 70 mVrms (200 Ω)
Unbalanced RCA Input: 70 mVrms (10 kΩ)
TEL Input: 80 mVrms (600 Ω) | | Maximum Input Level | Balanced Microphone: 100 mVrms
Balanced Line: 6 mVrms
Unbalanced Input: 5 mVrms
TEL Input: 2.2 Vrms | | S/N | Fundamental: -74 dBr minimum referenced to FRP
Balanced Microphone: -59 dBr minimum referenced to FRP
Balanced Line: -70 dBr minimum referenced to FRP
Unbalanced Input: -70 dBr minimum referenced to FRP
TEL Input: -70 dBr minimum referenced to FRP | | Tone Controls | Treble: +/-10 dBr @ 10 kHz referenced to mid-band
Bass: +/-10 dBr @ 100 Hz referenced to mid-band | | VOX Trigger and Muting | Input 1 Trigger Level: 25 mV (approximately)
VOX Release Delay: 4 (+/-1) seconds
Muting Level: >-60 dB | | TEL Trigger and Muting | TEL In Trigger Level: 22 mV (approximately)
VOX Release Delay: <1 second
Muting Level: >-60 dB | | Phantom Power | 12V DC minimum, 18V DC maximum | | Connections | 3 x Phoenix Mic/Line Input
1 x Phoenix TEL Input
2 x RCA phono Auxiliary Input
2 x RCA phono Record Output
5 x Screw Terminal Output
2 x Screw Terminal Output 24V DC In
1 x 3-pin IEC Power Input
1 x Screw Terminal Earth | | Environmental | Maximum Ambient Temperature: 100°F (38°C) non-condensing | | Thermal Output | 141.5 BTU/hour (full power) | | Power Requirements | 120V AC, 60 Hz
24V DC, 3 A | | Dimensions (WxDxH) | 8.25 x 10.4 x 3.5" (210 x 264 x 89 mm) | | Weight | 11 lb (5 kg) | | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 7.0" |
