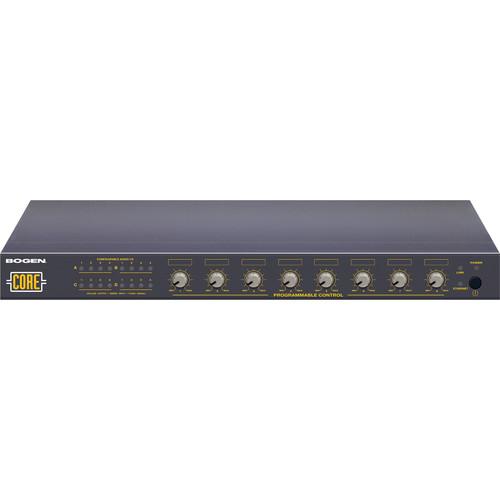

Product description Designed for small to medium installations, The CORE 12X4 from Bogen Communications is a versatile drag-and-drop DSP processor. The processor consists of a configurable hardware main frame, along with dedicated DSP software. The hardware system configuration is highly flexible, with front panel knobs that can be programmed to map to any functions within the DSP library and can be scaled to match the requirements of the project.
The software system design is PC based and once connected, allows for design, downloading, reversal of in-box designs, and live monitoring, calibration, and routing. Third-party control systems such as Crestron, AMX, Vity and others can also control unit either via RS-232 or IP commands. Up to fifty-three minutes of audio storage is available and audio files can be activated via a built-in scheduler, any of sixteen TTL inputs, or via an end user GUI interface custom built for each application.
Up to twelve CORE units can be networked together for expandability. A variety of accessories, including low cost analog controllers (RAC), digital controllers (URC), and various paging and control microphones (PPM, PPM Touch) are available for use with the system. Features - Twelve analog inputs and four analog outputs
- Configuration via PC/Laptop
- Programmable, scalable front panel knobs for DSP functions
- Third-party control via RS-232 or IP commands
- Full DSP drag-and-drop component library
- Up to fifty-three minute built-in message storage
- Sixteen built-in TTL inputs and eight logic outputs
- Hardware Components
- Main Frame
4 x Slots for input/output cards
16 x TTL/analog inputs
8 x TTL outputs
1 x RS485
1 x RS232 port
1 x Ethernet port
Each Input Card
4 x Channels with individual bypass
Mute
Sensitivity select
Phantom power
RTO (Route To Output)
VU meter
Signal present
Level control
Adjustable overload threshold
Each Output Card
4 x Channels with individual overload indicator
Mute
Meter
Signal present
Level control
Adjustable overload threshold - Software Components
- Delays
5 to 2000 ms
Dynamics
AGC (mono and stereo)
Automatic noise sensing
Compressor
Comp-limiter
Expander (mono and stereo)
Ducker (mono and stereo)
Mono and stereo gate
Voice Gate,
Gate with sidechain
Equalizers
Mono and Stereo GEQ (1 octave, 2/3 octave, 1/3 octave)
Mono and stereo PEQ (2, 4, 6, 8, 10, 16 bands)
Feedback Cancellation
Dynamic Feedback cancellation 1/5, 1/10, 1/20, and 1/100 octave with 4, 8, 12, or 16 bands
Inverter
Level Controls
4 x 4, 8 x 8, 16 x 16
Local Echo Suppression Module
Meters
1, 4, 8, 16 channel peak/RMS Logic
And, Not, Or, Nor gates with Net input/output for network applications
Message Repeater
Up to 53 minutes of audio can be stored inside the box and output two separate messages simultaneously to independent zones - messages can be activated using TTL inputs or via the built-in scheduler
Mixers
Automixers
Automixers with mix minus
Matrix mixers
Standard mixers
Room combiner
Noise Generator
White
Pink
Tone
Page Control Module
For zone paging applications
Selectors
4x1, 5x1, 6x1, 7x1, 8x1, 16x1, 32x1 for use with third-party control or ATEIS RAC, URC remote controllers
Custom Components
Build a custom program and password protect it In the Box Bogen Communications CORE 12X4 - Universal Audio Processor AC Power Cable System Software (Windows) Five (5) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications CORE 12X4 - Universal Audio Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications CORE 12X4 Specs | Frequency Response | 20 Hz to 20 kHz, +0/-0.6 dB @ +4 dBU | | Dynamic Range | >105 dB | | Gain | Maximum: 66 dB
Input Range: 0 to 54 dB | | Crosstalk | Line: <-78 db
Microphone: <-73 dB | | Inputs | 12 x Audio channels via balanced plug-in barrier strip connectors (programmable for line or microphone) | | Outputs | 4 x Audio channels via balanced plug-in barrier strip connectors | | Input Impedance | 8 kΩ | | Output Impedance | 200 Ω | | Maximum Input Level | +24 dBu | | Maximum Output Level | +24 dBu | | Conversion | A/D, D/A: 24-bit | | Sample Rate | 48 or 96 kHz (selectable) | | Phantom Power | +48V DC | | Power Requirements | 100~240V AC, 50/60 Hz Consumption: <145 W | | System Requirements | Computer running under Windows XP Professional,Vista, or Windows 7 | | Dimensions (WxDxH) | 17.1 x 11.6 x 1.75" (434 x 295 x 44 mm) | | Weight | 8 lb (3.6 kg) |
