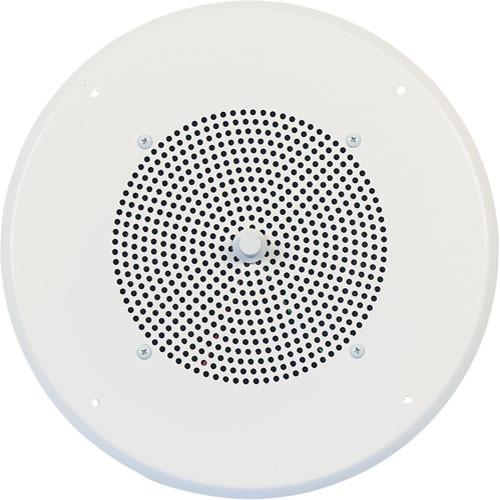

User Manual for Bogen Communications CS1EZ Easy Design 8" 1W Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the Bogen Communications CS1EZ Easy Design 8"
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications CS1EZ Easy Design 8" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The white Bogen Communications CS1EZ is an Easy Design series 8" 1W single-tap passive speaker assembled on a ceiling grille for paging, talkback, background music, and security applications in schools, warehouses, offices, and more. When connected to a 70V amplifier (available separately), the 8" cone-type loudspeaker delivers a 1W output, a maximum SPL of 95 dB, and a frequency response of 50 Hz to 12 kHz. Easily wire the CS1EZ using the screw terminal input connections, and adjust the volume via the front-mounted knob without having to remove the speaker or grille. The grille is constructed of steel to maintain rigidity, and features a durable enamel coating. - Single-tap design for use with 70V amplifier systems
- Heavy-duty, wire-wound volume control with front-mounted knob
- Screw terminal connections for fast installation
- Pre-assembled on a steel ceiling grille for recessed installation
- Finished in semi-gloss enamel
- Utilize Bogen TB8 tile bridge (available separately) to support the weight of the CS1EZ
UPC: 765368481815 In the Box Bogen Communications CS1EZ Easy Design 8" 1W Ceiling Speaker (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications CS1EZ Easy Design 8" 1W Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications CS1EZ Specs | Speaker Size | 8" / 20.3 cm | | Power Rating | 1 W RMS continuous | | Maximum SPL | 95 dB at 4' on axis with 1-watt input | | Frequency Response | 50 Hz to 12 kHz | | Input Impedance | 4.9 kOhms (for use on 70 V amplifier outputs) | | Input | Screw terminals | | Construction Material | Steel ceiling grille | | Dimensions (Diam. x Depth) | 13.0 x 3.3" / 33.0 x 8.3 cm | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 14.8 x 14.1 x 4.3" |
