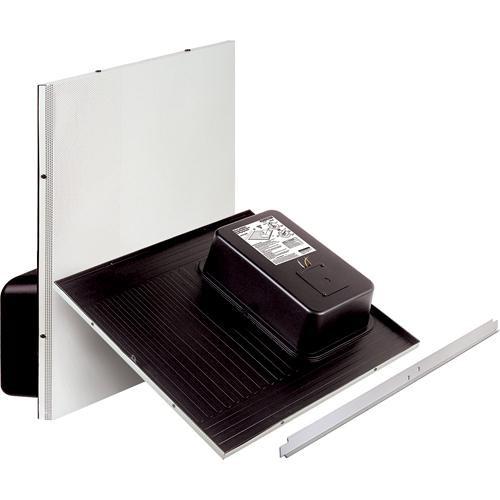

User Manual for Bogen Communications CSD2X2VRU - Drop-in Ceiling Mounted Speaker with Back Can Click to enlarge the picture
Contents of the user manual for the Bogen Communications CSD2X2VRU - Drop-in Ceiling
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications CSD2X2VRU - Drop-in Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The pair of Bogen CSD2X2 Drop-In Ceiling Speakers are easy-to-install 2 x 2' ceiling tile speakers for use with 25/70V commercial PA audio systems. They easily install into a 2 x 2' (61 x 61cm) cut-out in your existing ceiling tile. A tile support rail is included for a precise fit in any drop ceiling. The 8" cone speaker has a 10oz magnet with a 70V/25V, 4-watt transformer. - Steel protective back can protects exposed drivers at the rear of the speaker
- A recessed volume control is located on the front panel
- Multi-tap rotary switch with taps for 1/4 - 4W
- Perforated grille on entire 2 x 1' tile
UPC: 765368480528 In the Box Bogen Communications CSD2X2VRU - Drop-in Ceiling Mounted Speaker with Back Can (Pair, 70V/25V, Bright White) Tile Rail 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications CSD2X2VRU - Drop-in Ceiling Mounted Speaker with Back Can in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications CSD2X2VRU Specs | Active or Passive | Passive | | Frequency Response | 110Hz - 20kHz | | Power Capacity | 4W | | Maximum Sound Pressure Level (SPL) | 94dB | | Nominal Sensitivity | Not specified by the manufacturer | | Crossover | None | | Shielded | No | | Low Frequency Driver | 8" | | High Frequency Driver | None | | Enclosure Material | Not specified by the manufacturer | | Input Connections | Wire nuts in electrical box | | Environmental | Plenum-Rated meets requirements of UL standard 2043 for smoke and heat release | | Dimensions | 12.9 x 4.75 x 23.75" (327 x 120.65 x 603.25mm) | | Weight | 10 lbs (4.54kg) | | Specialties | For use with 2 x 2' or 2 x 4' ceiling tiles | | | | Package Weight | 32.5 lb | | Box Dimensions (LxWxH) | 27.0 x 27.0 x 7.0" |
