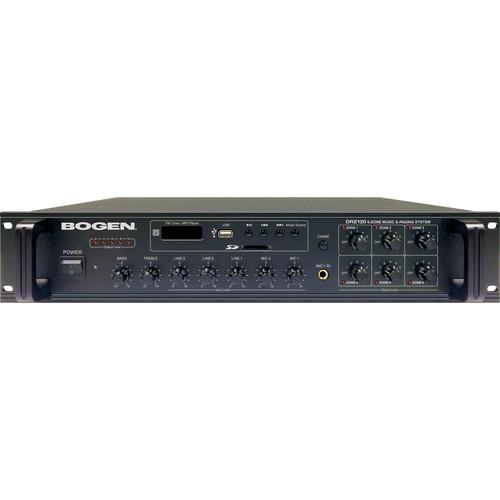

Product description The DRZ120 6-Zone Music & Paging System from Bogen Communications is a 120-watt amplifier with a digital FM tuner, well suited for commercial retail spaces, bars, and restaurants. Designed for 70-volt audio systems, the DRZ120 is the ideal front-end to any commercial audio paging system, supplying background music to six separate zones with its FM tuner. There are also microphone and line inputs for connecting additional equipment.On-board tone controls feature bass and treble controls, while MP3 files can be loaded and played from the on-board USB or SD card slots on the front panel. The front panel mic input can be set for Vox-activated override/muting of the other audio inputs. Additionally, there is a push-button activated Chime feature that produces a short, melodic series of four ascending bell-like alert tones which are played across all outputs. The DRZ120 ships with an infrared remote controller for the FM tuner and MP3 player. -
- Self-contained, 6-zone music and paging system with FM Tuner, MP3 Player, Mic and Line inputs.
- 120-watt audio output (into 8-Ohms)
- For use with 4-16 Ohms or 70-Volt speaker systems.
- Enable from 1-6 zones for music or paging
- 7 Total Audio Inputs: Mic1-4, Line1-3
- Mic1 input uses a front 1/4” TRS connector for a balanced Lo-Z microphone
- Mic1 Vox-activated muting of all other audio inputs governed via a Mute Control
- RCA inputs for Line1-3
- Built-in digital FM Tuner, with PLL synthesizer to provide accurate frequency selection
- Auto station search and manual tuning
- Back-lit tuner display, LCD
- FM 75-Ohm coaxial antenna connector
- Over 800 FM station presets
- Bass and Treble controls
- Infrared Remote Controller for FM tuner and MP3 player control
- Volume control
- Tuner/MP3 select button
- Preset and scan channel selection
- USB/SD media select
- MP3 play/pause/forward/ backward/repeat options
- EQ mode selection (none, Classic, Jazz, Rock, Bass & Pop)
- Chime button with priority output
- 5-segment LED output level meter
- Aux post-mix LINE output
- Power-on LED indicator
- Rack-mountable with integral brackets
UPC: 765368482775 In the Box Bogen Communications DRZ120 6-Zone Music & Paging System Wireless IR Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications DRZ120 6-Zone Music & Paging System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications DRZ120 Specs | | | Power Rating | 120 W into 8 Ohms (RMS) | | Distortion | <1% Rated output power @ 1 kHz | | Signal-to-Noise Ratio | Line: ≥ -74 dB | | Frequency Response | 80 Hz - 16 kHz @ 4 Ohms (±3 dB) | | Zone Output | 120 W @ 70 V max. for any single zone
20 W @ 70 V max. for each zone (assuming equal loads) | | Speaker Out | Aux Speaker Output: 4-16 Ohms | | Tone Controls | Bass: ±10 dB @ 100 Hz
Treble: ±10 dB @ 10 kHz | | Microphone Inputs | ≤ 3 mV/1 kOhms balanced
Front Connection: 1/4" / 6.35 mm
Rear Connections: 2x Euro-block, 1x XLR | | MIC1 | Mic1 Precedence: Vox-activated, with adjustable Mute Control | | Line Inputs | Line Input 1-3: ≤ 300 mV/10 kOhms unbalanced
Rear Connections: 3x stereo RCA | | AUX Outputs | Aux Line Output: 50 Ohms / 1 V RCA Jacks: 1x stereo RCA | | | | Tuner Type | Digital, with PLL Synthesizer | | Band | FM: 87.5 to 108 MHz | | Antenna | 75 Ohms coaxial | | Memory | Preset Memory: Over 800 FM stations
Memory Scan: Automatically presets stations | | Display | Backlit, LCD | | | | Power | Power Required: 120 VAC nominal @ 60 Hz
Power Consumption: 250 W | | Dimensions (WxHxD) | 19.1 x 3.5 x 13.8" / 48.6 x 8.9 x 34.9 cm | | Weight | 25.2 lb / 11.4 kg | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 21.5 x 18.0 x 7.45" |
