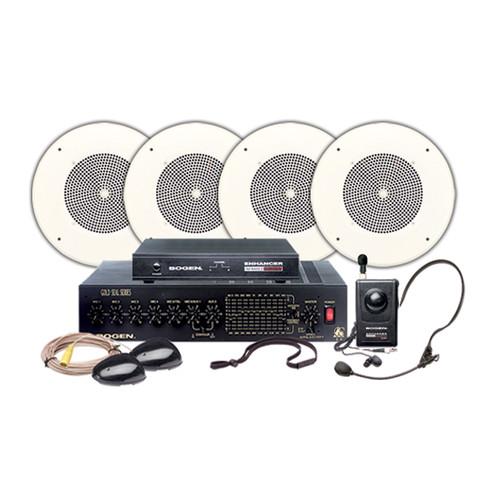

Product description The ESYS1 Enhancer Advanced System Package from Bogen Communications includes the Enhancer Dual-Channel IR Wireless Microphone System, GS35 35W Gold Seal Series Public Address Amplifier, four S86T725PG8WVR 8" Ceiling Speaker Grille Assemblies, four TB8 Tile Bridges, and four RE84 Ceiling Speaker Enclosures. The Enhancer Dual-Channel IR Wireless Microphone System is designed for educational and institutional applications that require enhancing the presenter's voice to all corners of the room. It uses infrared technology, eliminating the interference and crosstalk from adjacent rooms. The Enhancer System includes the BCWR Dual-Channel Infrared Receiver, BCWBT Bodypack Transmitter, BCLM Clip-On Lavalier Microphone, BCHM Headset Microphone, BCBM Bodypack Microphone, and two BCIRS Infrared Sensors. Additional sensors, handheld microphones, rechargeable batteries, and chargers are available separately to expand the system's capabilities. The GS35 35W Gold Seal Series Public Address Amplifier is suitable for public address systems. The amplifier features four dedicated XLR microphone inputs plus one dedicated aux input and two switchable inputs for either mic/aux or mic/telephone. Improved intelligibility is aided by the integrated Aphex Aural Exciter and the 10-band graphic equalizer that regulates acoustic EQ and feedback control. The S86T725PG8WVR 8" Ceiling Speaker Grille Assembly features an 8" cone speaker and 4W transformer pre-assembled onto an off-white color 13" steel grille. It has a recessed volume control. The RE84 Ceiling Speaker Enclosure is a protective enclosure for the included 8" speaker grille assembly, and is designed for recessed installations. It features one-piece steel construction that includes a mounting ring and a foam insert to reduce metallic resonance. The TB8 Tile Bridge is a load-bearing T-bar support designed to sustain the weight of the 8" Ceiling Speaker Grille Assembly and RE84 Speaker Enclosure in suspended ceiling construction. The use of the TB8 Tile Bridge improves environmental safety and eliminates unsightly sag in 2 x 2' and 2 x 4' acoustic ceiling tiles. - Infrared Wireless 2-Channel Microphone Voice Enhancement System The Infrared Wireless 2-Channel Microphone Voice Enhancement System from Bogen Communications offers professional performance and operating features for educational and institutional applications by enhancing a presenter’s voice to all corners of the room. The Enhancer System includes the BCWR Dual-Channel Infrared Receiver, BCWBT Bodypack Transmitter, BCLM Clip-On Lavalier Microphone, BCHM Headset Microphone, BCBM Bodypack Microphone, and two BCIRS Infrared Sensors. It uses infrared technology, eliminating the interference and crosstalk from adjacent rooms.
The Enhancer System helps presenters by reducing the effects of poor room acoustics and the weakening effect of voice traveling through air. Additional sensors, handheld microphones, rechargeable batteries and chargers are available separately to expand the system's capabilities. When integrated with Bogen’s wide range of amplifiers and speakers, the Enhancer provides an effective and flexible voice reinforcement system. Enhancer System - Infrared Wireless Microphone System designed for presenters in educational and institutional settings
- Two wide-angle, IR sensors allow for complete room coverage
- IR Sensors can be expanded to tailor coverage to every size room 1
Please Note: This feature requires additional BCIRS Infrared Sensors which are sold separately close - Unbalanced mixed audio output
- Flexible system configures to meet different needs in different settings
BCWR Dual-Channel Wireless Microphone Receiver - 2-Channel receiver offers a simultaneous 2-channel operation for 2 transmitters (Ch. A, Ch. B)
- Infrared signal reception LED indicators
- Channel A/B mixed audio output RCA-type connector
- Separate channel A and channel B volume controls
- Two IR sensor coaxial-type inputs
BCWBT Bodypack Transmitter - Wide-dispersion high-efficiency infrared emitter array LEDs in transmitters for optimum IR transmission
- Channel A/B Selector Switch
- 3.5mm locking jack for connection of body-pack, lapel, or headset microphones
- Microphone input volume control
- Belt clip and adjustable, neck-worn lanyard
- Requires 2 alkaline AA batteries or 2 NiMH AA rechargeable batteries (BCBRBP) 2
Please Note: 2 alkaline AA batteries are included while the BCBRBP Rechargeable Battery Pack is sold separately. close BCIRS Infrared Sensor - Multiple arrays of wide-angle infrared sensitive LEDs
- 35' connecting cable with coaxial-type connector
- Comes with mounting brackets
BCHM Headset Microphone - Lightweight adjustable boom arm
- Close-miked vocal pick-up
BCLM Lavalier Microphone - Close-miked vocal pick-up
BCBM Bodypack Microphone - Mounts directly to BCWBT Bodypack Transmitter
UPC: 765368370065 - GS35 Gold Seal Series Public Address Amplifier 35W The GS35 35W Gold Series Amplifier from Bogen is ideal for public address systems. This reliable, versatile amp features 4 dedicated XLR microphone inputs plus one dedicated aux input and two switchable inputs for either mic/aux or mic/telephone. Improved intelligibility is aided by the integrated Aphex Aural Exciter and the 10-band graphic equalizer which regulates Acoustic EQ and feedback control. The telephone input has voice activated muting with gradual fade back from the aux input after muting.
- 7 individuals level controls for the 4 dedicated XLR mic channels and 1 aux channel and 2 switchable channels
- 10-band graphic for acoustic EQ and feedback control
- Outputs for tape recording
- Aphex Aural Exciter helps improve intelligibility
- Ceiling Speaker Assembly with S86 8" Cone & Recessed Volume Control (Off-White) This Bogen Ceiling Speaker Assembly is a pre-assembled 8" ceiling mounted speaker for your 70V or 25V commercial audio system. The speaker is sold complete with transformer, 8" S86 cone and grille cover. It has an off-white finish and a recessed volume knob. The speaker is easily installed into drop-ceilings, features a 4W capacity and a 50 Hz to 12 kHz frequency response suitable for paging and background music.
- Recessed volume control in the center of the grill avoids inadvertent volume adjustments
- 8" S86 speaker for excellent sound quality
UPC: 765368481099 - TB8 Tile Bridge for S86 and S810 Speakers The TB8 Tile Bridge from Bogen is used to distribute the weight of S86 and S810 Speakers onto ceiling grids. UPC: 765368481372
- RE84 Ceiling Speaker Enclosure for 8" Speakers The RE84 from Bogen is a Ceiling Speaker Enclosure for 8" speakers in recessed installations. The one-piece steel construction includes a mounting ring and foam insert for metallic resonance reduction. UPC: 765368480450
In the Box Bundle Items Infrared Wireless 2-Channel Microphone Voice Enhancement System fsbzxtabdvuwcc - BCWR 2-Channel IR Wireless Microphone Receiver
- BCWBT Body-Pack Transmitter with Lavalier
- BCHM Headset Microphone for Enhancer Wireless System
- Body-Pack Microphone for BCWBT Wireless Body-Pack Transmitter
2 x - BCIRS Infrared Sensor with Mounting Brackets and 35' Cable
GS35 Gold Seal Series Public Address Amplifier 35W 4 x Ceiling Speaker Assembly with S86 8" Cone & Recessed Volume Control (Off-White) 4 x TB8 Tile Bridge for S86 and S810 Speakers 4 x RE84 Ceiling Speaker Enclosure for 8" Speakers Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications ESYS1 Enhancer Advanced System Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Infrared Wireless 2-Channel Microphone Voice Enhancement System
| | | Mode | Infrared frequency modulated | | Receiving Channels | Dual-channels A & B | | Carrier Frequency | Ch. A: 2.0 MHz
Ch. B: 2.6 MHz | | Audio Frequency Response | 60 Hz to 12 kHz | | Signal to Noise Ratio | > 90 dB | | Audio Output | Mixer Output: 400 mV | | Range Of View | Up to 30.0' (9.4 m) | | Controls | Power On/Off (front)
Ch. A and B volume (rear) | | Connectors | IR sensor coaxial-type jacks, Ch. A/B (rear)
AC power input jack (rear)
Audio mixed output RCA-type jack (rear) | | Power Requirements | 16 VAC, 600 mA (via AC adapter) | | Power Consumption | 8 W | | Dimensions (W x H x D) | 10.6 x 2.0 x 7.4" (26.9 x 5.08 x 18.8 cm) | | Weight | 4.0 lb (1.81 kg) | | | | Carrier Frequency | Ch. A: 2.0 MHz
Ch. B: 2.6 MHz | | Audio Input | Compatible With:
BCBM Bodypack omnidirectional condenser microphone
BCLM Lavalier-type omnidirectional condenser microphone
BCHM Headset-type unidirectional condenser microphone | | Controls | On/Off switch, volume control, Ch. A/B select switch | | Connectors | 3.5 mm locking jack (Mic connection)
DC input charge jack | | Power Requirements | 2 x AA batteries (2.4 VDC) (included) | | Dimensions (W x H x D) | 2.6 x 3.9 x 1.7" (6.6 x 9.9 x 4.3 cm) | | Weight | Transmitter: 3.6 oz (102.0 g)
Headset: 1.1 oz (31.2 g) | - GS35 Gold Seal Series Public Address Amplifier 35W
| Power Output | 35W | | Distortion | <0.5% | | Frequency Response | Transformer: 65-20,000Hz
Direct output: 20-20,000Hz | | Signal to Noise Ratio | Fundamental: -94 dB or better; Aux 1 & 2: -70 dB; Tel: -70 dB or better @ 600 ohms
Mic 1 - 6: -60 dB or better @ 200 ohms | | Output Impedance | Balanced or unbalanced 8-ohms, 25V, 25VCT, 70V, 4-ohm direct | | Muting | 0 to -30dB (aux 1 & 2) | | Output Connections | Output to Power Amp - 5V @ Rated Output via RCA jack
WMT1A Output - 25V @ Rated Output via RCA jack
Terminal strip | | Input Connections | XLR x 4
Terminal strip
Mono RCA x 2 | | Specialties | 10-band graphic EQ
Aphex Aural Exciter: Type A9 | | Dimensions | 16.5 x 3.5 x 12" (419.1 x 88.9 x 304.8mm) | | Weight | 19 lbs (8.61kg) | | | | Box Dimensions (LxWxH) | 21.5 x 17.5 x 8.0" | - Ceiling Speaker Assembly with S86 8" Cone & Recessed Volume Control (Off-White)
| Active or Passive | Active | | Frequency Response | 50Hz to 12kHz | | Power Capacity | 4W | | Maximum Sound Pressure Level (SPL) | 95dB | | Nominal Sensitivity | Not specified by the manufacturer | | Impedance | Not specified by the manufacturer | | Crossover | None | | Shielded | No | | Low Frequency Driver | 8" | | High Frequency Driver | None | | Enclosure Material | Not specified by the manufacturer | | Input Connections | Wire nuts or screw terminal (depending on model) | | Environmental | Not specified by the manufacturer | | Dimensions | 13 x 3.25" (33.02 x 8.26cm) Diameter x Depth | | Weight | 6oz Magnet Weight | | Specialties | For use with 2 x 2' or 2 x 4' ceiling tiles | | | | Box Dimensions (LxWxH) | 14.6 x 14.1 x 4.2" | - TB8 Tile Bridge for S86 and S810 Speakers
| | | Box Dimensions (LxWxH) | 17.717 x 14.0 x 2.0" | - RE84 Ceiling Speaker Enclosure for 8" Speakers
| | | Box Dimensions (LxWxH) | 12.0 x 12.0 x 5.0" |
