Product description

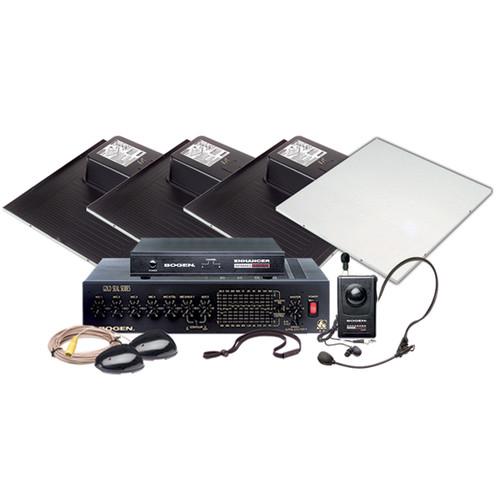

• Infrared Wireless 2-Channel Microphone Voice Enhancement System The Infrared Wireless 2-Channel Microphone Voice Enhancement System from Bogen Communications offers professional performance and operating features for educational and institutional applications by enhancing a presenter’s voice to all corners of the room. The Enhancer System includes the BCWR Dual-Channel Infrared Receiver, BCWBT Bodypack Transmitter, BCLM Clip-On Lavalier Microphone, BCHM Headset Microphone, BCBM Bodypack Microphone, and two BCIRS Infrared Sensors. It uses infrared technology, eliminating the interference and crosstalk from adjacent rooms.

  The Enhancer System helps presenters by reducing the effects of poor room acoustics and the weakening effect of voice traveling through air. Additional sensors, handheld microphones, rechargeable batteries and chargers are available separately to expand the system's capabilities. When integrated with Bogen’s wide range of amplifiers and speakers, the Enhancer provides an effective and flexible voice reinforcement system.

  Enhancer System

  • Infrared Wireless Microphone System designed for presenters in educational and institutional settings
  • Two wide-angle, IR sensors allow for complete room coverage
  • IR Sensors can be expanded to tailor coverage to every size room ¹

    Please Note:

    This feature requires additional BCIRS Infrared Sensors which are sold separately close
  • Unbalanced mixed audio output
  • Flexible system configures to meet different needs in different settings

  BCWR Dual-Channel Wireless Microphone Receiver

  • 2-Channel receiver offers a simultaneous 2-channel operation for 2 transmitters (Ch. A, Ch. B)
  • Infrared signal reception LED indicators
  • Channel A/B mixed audio output RCA-type connector
  • Separate channel A and channel B volume controls
  • Two IR sensor coaxial-type inputs

  BCWBT Bodypack Transmitter

  • Wide-dispersion high-efficiency infrared emitter array LEDs in transmitters for optimum IR transmission
  • Power On LED
  • Channel A/B Selector Switch
  • 3.5mm locking jack for connection of body-pack, lapel, or headset microphones
  • Microphone input volume control
  • Belt clip and adjustable, neck-worn lanyard
  • Requires 2 alkaline AA batteries or 2 NiMH AA rechargeable batteries (BCBRBP) ²

    Please Note:

    2 alkaline AA batteries are included while the BCBRBP Rechargeable Battery Pack is sold separately. close

  BCIRS Infrared Sensor

  • Multiple arrays of wide-angle infrared sensitive LEDs
  • 35' connecting cable with coaxial-type connector
  • Comes with mounting brackets

  BCHM Headset Microphone

  • Lightweight adjustable boom arm
  • Close-miked vocal pick-up
  • Hands-free operation
  • Cardioid polar pattern

  BCLM Lavalier Microphone

  • Weighs less than 1 oz
  • Close-miked vocal pick-up
  • Hands-free operation
  • Omnidirectional pattern

  BCBM Bodypack Microphone

  • Weighs less than 1 oz
  • Mounts directly to BCWBT Bodypack Transmitter
  • Hands-free operation
  • Omnidirectional pattern
  UPC: 765368370065
• GS35 Gold Seal Series Public Address Amplifier 35W The GS35 35W Gold Series Amplifier from Bogen is ideal for public address systems. This reliable, versatile amp features 4 dedicated XLR microphone inputs plus one dedicated aux input and two switchable inputs for either mic/aux or mic/telephone. Improved intelligibility is aided by the integrated Aphex Aural Exciter and the 10-band graphic equalizer which regulates Acoustic EQ and feedback control. The telephone input has voice activated muting with gradual fade back from the aux input after muting.
  • 7 individuals level controls for the 4 dedicated XLR mic channels and 1 aux channel and 2 switchable channels
  • 10-band graphic for acoustic EQ and feedback control
  • Outputs for tape recording
  • Aphex Aural Exciter helps improve intelligibility
• BCWHT Wireless Handheld Microphone/Transmitter The Bogen Communications BCWHT Wireless Handheld Microphone/Transmitter is used with the Infrared Wireless 2-Channel Microphone Voice Enhancement System. This transmitter operates on 2 AA batteries (included) or on a rechargeable NiMH battery pack (not included).
  • Multiple emitter array of high-efficiency infrared emission LEDs for optimum IR transmission
  • Power On LED
  • Powerful unidirectional dynamic capsule for optimum audio, minimum handling noise, and maximum feedback rejection
  • Rugged steel mesh ball-screen with anti-roll ring
  • Requires 2 alkaline AA batteries or BCHRB NiMH Rechargeable Battery Pack ¹

    Please Note:

    2 alkaline AA batteries are included while BCHRB NiMH Rechargeable Battery Pack is sold separately close
  UPC: 765368370010
• CSD2X2 - Drop-in Ceiling Mounted Speaker with Back Can (Pair, 70V/25V, Off White) The pair of Bogen CSD2X2 Drop-In Ceiling Speakers are easy-to-install 2 x 2' ceiling tile speakers for use with 25/70V commercial PA audio systems. They easily install into a 2 x 2' (61 x 61cm) cut-out in your existing ceiling tile. A tile support rail is included for a precise fit in any drop ceiling. The 8" cone speaker has a 10oz magnet with a 70V/25V, 4-watt transformer.
  • Steel protective back can protects exposed drivers at the rear of the speaker
  • Multi-tap rotary switch with taps for 1/4 - 4W
  • 25/70V transformer
  • Perforated grille on entire 2 x 1' tile
  UPC: 765368480030

• BCWR 2-Channel IR Wireless Microphone Receiver

• BCWBT Body-Pack Transmitter with Lavalier

• BCHM Headset Microphone for Enhancer Wireless System

• Body-Pack Microphone for BCWBT Wireless Body-Pack Transmitter

2 x
• BCIRS Infrared Sensor with Mounting Brackets and 35' Cable

• 6' RCA Audio Cable

• Limited 1-Year Warranty

• 1-Year Warranty

• 2 x AA Battery

• Limited 1-Year Warranty

• Tile Rail

• 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Infrared Wireless 2-Channel Microphone Voice Enhancement System

  Mode	Infrared frequency modulated
  Receiving Channels	Dual-channels A & B
  Carrier Frequency	Ch. A: 2.0 MHz Ch. B: 2.6 MHz
  Audio Frequency Response	60 Hz to 12 kHz
  Signal to Noise Ratio	> 90 dB
  Audio Output	Mixer Output: 400 mV
  Range Of View	Up to 30.0' (9.4 m)
  Controls	Power On/Off (front) Ch. A and B volume (rear)
  Connectors	IR sensor coaxial-type jacks, Ch. A/B (rear) AC power input jack (rear) Audio mixed output RCA-type jack (rear)
  Power Requirements	16 VAC, 600 mA (via AC adapter)
  Power Consumption	8 W
  Dimensions (W x H x D)	10.6 x 2.0 x 7.4" (26.9 x 5.08 x 18.8 cm)
  Weight	4.0 lb (1.81 kg)

  Carrier Frequency	Ch. A: 2.0 MHz Ch. B: 2.6 MHz
  Audio Input	Compatible With: BCBM Bodypack omnidirectional condenser microphone BCLM Lavalier-type omnidirectional condenser microphone BCHM Headset-type unidirectional condenser microphone
  Controls	On/Off switch, volume control, Ch. A/B select switch
  Connectors	3.5 mm locking jack (Mic connection) DC input charge jack
  Power Requirements	2 x AA batteries (2.4 VDC) (included)
  Dimensions (W x H x D)	2.6 x 3.9 x 1.7" (6.6 x 9.9 x 4.3 cm)
  Weight	Transmitter: 3.6 oz (102.0 g) Headset: 1.1 oz (31.2 g)

• GS35 Gold Seal Series Public Address Amplifier 35W

  Power Output	35W
  Distortion	<0.5%
  Frequency Response	Transformer: 65-20,000Hz Direct output: 20-20,000Hz
  Signal to Noise Ratio	Fundamental: -94 dB or better; Aux 1 & 2: -70 dB; Tel: -70 dB or better @ 600 ohms Mic 1 - 6: -60 dB or better @ 200 ohms
  Output Impedance	Balanced or unbalanced 8-ohms, 25V, 25VCT, 70V, 4-ohm direct
  Muting	0 to -30dB (aux 1 & 2)
  Output Connections	Output to Power Amp - 5V @ Rated Output via RCA jack WMT1A Output - 25V @ Rated Output via RCA jack Terminal strip
  Input Connections	XLR x 4 Terminal strip Mono RCA x 2
  Specialties	10-band graphic EQ Aphex Aural Exciter: Type A9
  Dimensions	16.5 x 3.5 x 12" (419.1 x 88.9 x 304.8mm)
  Weight	19 lbs (8.61kg)

  Box Dimensions (LxWxH)	21.5 x 17.5 x 8.0"

• BCWHT Wireless Handheld Microphone/Transmitter

  Carrier Frequency	Ch B: 2.6 MHz
  Audio Input	Unidirectional dynamic cartridge
  Controls	On/Off Switch
  Power Requirements	2 x AA Batteries (2.4 VDC) or optional BCHRBP NiMH Rechargeable Battery Pack
  Dimensions (Ø x D)	2.2 x 10.2" (5.6 x 25.9 cm)
  Weight	14.0 oz (396.9 g)

  Box Dimensions (LxWxH)	12.0 x 4.0 x 3.0"

• CSD2X2 - Drop-in Ceiling Mounted Speaker with Back Can (Pair, 70V/25V, Off White)

  Active or Passive	Passive
  Frequency Response	110Hz - 20kHz
  Power Capacity	4W
  Maximum Sound Pressure Level (SPL)	94dB
  Nominal Sensitivity	Not specified by the manufacturer
  Crossover	None
  Shielded	No
  Low Frequency Driver	8"
  High Frequency Driver	None
  Enclosure Material	Not specified by the manufacturer
  Input Connections	Wire nuts in electrical box
  Environmental	Plenum-Rated meets requirements of UL standard 2043 for smoke and heat release
  Dimensions	12.9 x 4.75 x 23.75" (327 x 120.65 x 603.25mm)
  Weight	10 lbs (4.54kg)
  Specialties	For use with 2 x 2' or 2 x 4' ceiling tiles

  Box Dimensions (LxWxH)	27.5 x 27.0 x 10.0"
