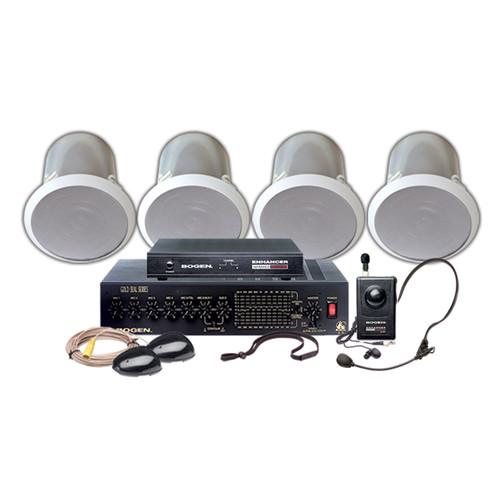

Bogen Communications ESYS4 Enhancer Advanced System

User Manual for Bogen Communications ESYS4 Enhancer Advanced System Package

• Product category: Assistive Listening Systems Bogen Communications
• Brand: Bogen Communications
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bogen Communications Assistive Listening Systems

Product description

• Infrared Wireless 2-Channel Microphone Voice Enhancement System The Infrared Wireless 2-Channel Microphone Voice Enhancement System from Bogen Communications offers professional performance and operating features for educational and institutional applications by enhancing a presenter’s voice to all corners of the room. The Enhancer System includes the BCWR Dual-Channel Infrared Receiver, BCWBT Bodypack Transmitter, BCLM Clip-On Lavalier Microphone, BCHM Headset Microphone, BCBM Bodypack Microphone, and two BCIRS Infrared Sensors. It uses infrared technology, eliminating the interference and crosstalk from adjacent rooms.

  The Enhancer System helps presenters by reducing the effects of poor room acoustics and the weakening effect of voice traveling through air. Additional sensors, handheld microphones, rechargeable batteries and chargers are available separately to expand the system's capabilities. When integrated with Bogen’s wide range of amplifiers and speakers, the Enhancer provides an effective and flexible voice reinforcement system.

  Enhancer System

  • Infrared Wireless Microphone System designed for presenters in educational and institutional settings
  • Two wide-angle, IR sensors allow for complete room coverage
  • IR Sensors can be expanded to tailor coverage to every size room ¹

    Please Note:

    This feature requires additional BCIRS Infrared Sensors which are sold separately close
  • Unbalanced mixed audio output
  • Flexible system configures to meet different needs in different settings

  BCWR Dual-Channel Wireless Microphone Receiver

  • 2-Channel receiver offers a simultaneous 2-channel operation for 2 transmitters (Ch. A, Ch. B)
  • Infrared signal reception LED indicators
  • Channel A/B mixed audio output RCA-type connector
  • Separate channel A and channel B volume controls
  • Two IR sensor coaxial-type inputs

  BCWBT Bodypack Transmitter

  • Wide-dispersion high-efficiency infrared emitter array LEDs in transmitters for optimum IR transmission
  • Power On LED
  • Channel A/B Selector Switch
  • 3.5mm locking jack for connection of body-pack, lapel, or headset microphones
  • Microphone input volume control
  • Belt clip and adjustable, neck-worn lanyard
  • Requires 2 alkaline AA batteries or 2 NiMH AA rechargeable batteries (BCBRBP) ²

    Please Note:

    2 alkaline AA batteries are included while the BCBRBP Rechargeable Battery Pack is sold separately. close

  BCIRS Infrared Sensor

  • Multiple arrays of wide-angle infrared sensitive LEDs
  • 35' connecting cable with coaxial-type connector
  • Comes with mounting brackets

  BCHM Headset Microphone

  • Lightweight adjustable boom arm
  • Close-miked vocal pick-up
  • Hands-free operation
  • Cardioid polar pattern

  BCLM Lavalier Microphone

  • Weighs less than 1 oz
  • Close-miked vocal pick-up
  • Hands-free operation
  • Omnidirectional pattern

  BCBM Bodypack Microphone

  • Weighs less than 1 oz
  • Mounts directly to BCWBT Bodypack Transmitter
  • Hands-free operation
  • Omnidirectional pattern
  UPC: 765368370065
• GS60 Gold Seal Series Public Address Amplifier 60W The GS60 60W Gold Series Amplifier from Bogen is ideal for public address systems. This reliable, versatile amp features 4 dedicated XLR microphone inputs plus one dedicated aux input and two switchable inputs for either mic/aux or mic/telephone. Improved intelligibility is aided by the integrated Aphex Aural Exciter and the 10-band graphic equalizer which regulates Acoustic EQ and feedback control. The telephone input has voice activated muting with gradual fade back from the aux input after muting.
  • 7 individuals level controls for the 4 dedicated XLR mic channels and 1 aux channel and 2 switchable channels
  • 10-band graphic for acoustic EQ and feedback control
  • Outputs for tape recording
  • Aphex Aural Exciter helps improve intelligibility
• HFCS1 High Fidelity Ceiling Speaker (Off-white) The off-white HFCS1 High Fidelity Ceiling Speaker from Bogen Communications is a loudspeaker designed to deliver superior sound and clear intelligibility in a variety of ceiling environments. The speaker can be easily installed in hard-surfaced ceilings, suspended ceilings, and new constructions. It contains a wide dispersion coaxial driver and has a single attachment point for a safety cable (sold separately).

  This High Fidelity speaker features a low-distortion speaker design and a computer-matched venting system to deliver high intelligibility and low-frequency response for both music and speech reinforcement. The speaker offers several levels of power output controlled via a front-mounted rotary tap selector switch (under grille).
  • Wide-dispersion coaxial driver for broad and even coverage
  • Designed to deliver good off-axis coverage with smooth contouring
  • Computer-matched venting system for full bass output
  • Large back can for deeper bass response
  • High-power handling capability for foreground sound
  • Selectable power taps via front-mounted control: 32, 16, 8, 4, 2, and 1W @ 70V and 32, 16, 8, 4, and 2 @ 100V
  • 16 Ω input for non-transformer, multi-speaker systems (selectable via tap selector switch)
  • Easy wiring with plug-in connector
  • Integral swing-out clamps for easy installation
  • Connector provides loop-through terminals for next speaker
  • Attachment point for seismic cable (safety cable)
  • Input terminal cover with knockouts and safety eyelet provides protection for connections
  UPC: 765368480269
• TBCR Tile Bridge Support Ring for HFCS1 The TBCR from Bogen is a Tile Bridge Support Ring for the HFCS1. This support will hold the weight of clamping type ceiling speakers in suspended ceiling installations. UPC: 765368100426

• BCWR 2-Channel IR Wireless Microphone Receiver

• BCWBT Body-Pack Transmitter with Lavalier

• BCHM Headset Microphone for Enhancer Wireless System

• Body-Pack Microphone for BCWBT Wireless Body-Pack Transmitter

2 x
• BCIRS Infrared Sensor with Mounting Brackets and 35' Cable

• 6' RCA Audio Cable

• Limited 1-Year Warranty

• 1-Year Warranty

• Input Terminal Cover (2 Halves)

• 4 x Screw

• Snap-Lock Input Plug

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Infrared Wireless 2-Channel Microphone Voice Enhancement System

  Mode	Infrared frequency modulated
  Receiving Channels	Dual-channels A & B
  Carrier Frequency	Ch. A: 2.0 MHz Ch. B: 2.6 MHz
  Audio Frequency Response	60 Hz to 12 kHz
  Signal to Noise Ratio	> 90 dB
  Audio Output	Mixer Output: 400 mV
  Range Of View	Up to 30.0' (9.4 m)
  Controls	Power On/Off (front) Ch. A and B volume (rear)
  Connectors	IR sensor coaxial-type jacks, Ch. A/B (rear) AC power input jack (rear) Audio mixed output RCA-type jack (rear)
  Power Requirements	16 VAC, 600 mA (via AC adapter)
  Power Consumption	8 W
  Dimensions (W x H x D)	10.6 x 2.0 x 7.4" (26.9 x 5.08 x 18.8 cm)
  Weight	4.0 lb (1.81 kg)

  Carrier Frequency	Ch. A: 2.0 MHz Ch. B: 2.6 MHz
  Audio Input	Compatible With: BCBM Bodypack omnidirectional condenser microphone BCLM Lavalier-type omnidirectional condenser microphone BCHM Headset-type unidirectional condenser microphone
  Controls	On/Off switch, volume control, Ch. A/B select switch
  Connectors	3.5 mm locking jack (Mic connection) DC input charge jack
  Power Requirements	2 x AA batteries (2.4 VDC) (included)
  Dimensions (W x H x D)	2.6 x 3.9 x 1.7" (6.6 x 9.9 x 4.3 cm)
  Weight	Transmitter: 3.6 oz (102.0 g) Headset: 1.1 oz (31.2 g)

• GS60 Gold Seal Series Public Address Amplifier 60W

  Power Output	60W
  Distortion	<0.5%
  Frequency Response	Transformer: 65-20,000Hz Direct output: 20-20,000Hz
  Signal to Noise Ratio	Fundamental: -94 dB or better; Aux 1 & 2: -70 dB; Tel: -70 dB or better @ 600 ohms Mic 1 - 6: -60 dB or better @ 200 ohms
  Output Impedance	Balanced or unbalanced 8-ohms, 25V, 25VCT, 70V, 4-ohm direct
  Muting	0 to -30dB (aux 1 & 2)
  Output Connections	Output to Power Amp - 5V @ Rated Output via RCA jack WMT1A Output - 25V @ Rated Output via RCA jack Terminal strip
  Input Connections	XLR x 4 Terminal strip Mono RCA x 2
  Specialties	10-band graphic EQ Aphex Aural Exciter: Type A9
  Dimensions	16.5 x 3.5 x 12" (419.1 x 88.9 x 304.8mm)
  Weight	24 lbs (10.89kg)

  Box Dimensions (LxWxH)	21.1 x 17.4 x 8.1"

• HFCS1 High Fidelity Ceiling Speaker (Off-white)

  LF Driver Size	6.5" (165 mm) polypropylene cone
  HF Driver Size	0.75" (20 mm) polycarbonate dome
  Frequency Response	65 Hz - 19 kHz @ -10 dB
  Sensitivity	1 W / 1 m: 89 dB (average 100 Hz to 10 kHz)
  Impedance	Low: 16 Ω / High (70 / 100 V)
  Power Input	75 W @ 16 Ω, 32 W @ 70 / 100 V maximum
  Power Settings	70 V: 32, 16, 8, 4, 2, 1 100 V: 32, 16, 8, 4, 2
  UL Listings	Standard 60065 for US and Canada
  Materials	Baffle: Fire-rated (94 VO) ABS Back Can: Heavy-gauge steel
  Termination	4 x terminal input connector
  Color	Off-white
  Dimensions (Diam. x Depth)	12.3 x 12" (31.2 x 30.5 cm)
  Weight	9 lb (4.1 kg)

  Box Dimensions (LxWxH)	14.6 x 14.3 x 10.3"

• TBCR Tile Bridge Support Ring for HFCS1

  Dimensions

  17 x 1.13 x 24" (431.8 x 28.58 x 609.6mm)

  Box Dimensions (LxWxH)	24.0 x 14.5 x 1.75"
