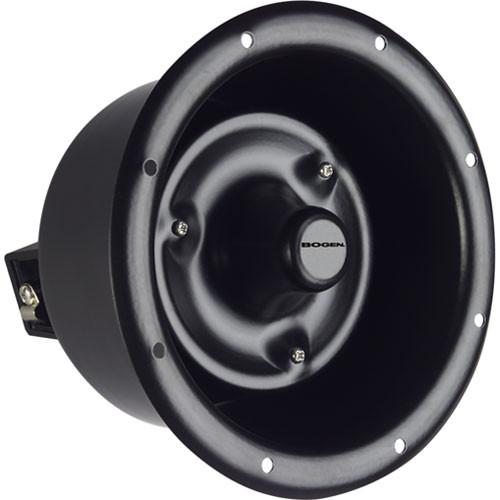

User Manual for Bogen Communications FMH15T Flange-Mounted 15W Reentrant Horn Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bogen Communications FMH15T Flange-Mounted 15W Reentrant
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications FMH15T Flange-Mounted 15W Reentrant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The black Bogen Communications FMH15T is a flange-mounted 15W reentrant horn loudspeaker offering high voice intelligibility for paging, talkback, and security applications in work sites, schools, parks, warehouses, and more. The horn delivers a dispersion angle of 100 degrees, and handles up to 15W at 25V or 70V. The integrated 7-position watts/impedance switch allows simple tap configuration for operation at a variety of wattage settings. With a weatherproof design, metal construction, and an enamel finish, it ensures reliable durability indoors and outdoors. A self-aligning, field-replaceable diaphragm and screw terminals enable easy maintenance and setup. The FMH15T supports multiple mounting options via separately available accessories. - Designed to emphasize voice intelligibility
- Built-in rotary impedance selector for use with 70V or 25V constant-voltage lines
- Weatherproof and vandal-resistant for applications in hostile environments
- Screw terminals allow fast and easy installation
- Self-aligning, field replaceable diaphragm for easy field maintenance
- BBFM6 flush-mount enclosure, BBSM6 surface-mount enclosure, SGHD8 heavy-duty cast aluminum grille, and FMHAR8 adapter ring are available separately for versatile installation options
UPC: 765368480207 In the Box Bogen Communications FMH15T Flange-Mounted 15W Reentrant Horn Loudspeaker (Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications FMH15T Flange-Mounted 15W Reentrant Horn Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications FMH15T Specs | Power Rating | 15 W RMS continuous | | Power Taps | Watts at 25 V: 0.125, 0.25, 0.5, 0.9, 1.8, 7, 15
Watts at 70 V: 0.9, 1.8, 3.6, 7.5, 15 | | Frequency Response | 600 Hz to 14 kHz | | Impedance | 25/70 V | | SPL | At 15 W: 115 dB at 1 m on axis
At 1 W: 104 dB at 1 m on axis | | Dispersion | 100° | | Input | Screw terminals | | Construction Material | Metal | | Dimensions | Flange Diameter: 6.9" / 17.5 cm
Body Diameter: 5.4" / 13.7 cm
Depth: 5.5" / 14 cm
Mounting Hole Pattern: 6.1" / 15.6 cm
Mounting Hole Spacing: 45° from adjacent hole | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 8.8 x 8.6 x 6.1" |
