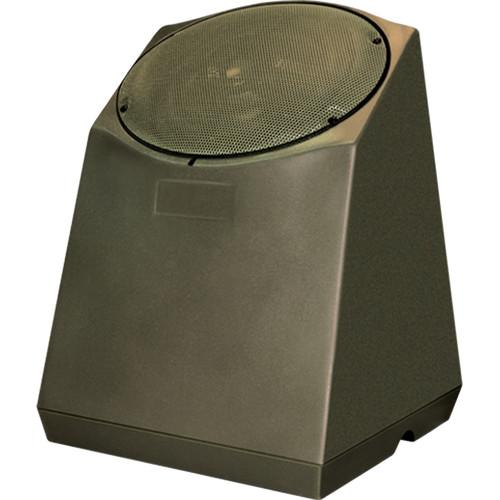

User Manual for Bogen Communications G8G Outdoor In-Ground All-Weather Speaker Click to enlarge the picture
Contents of the user manual for the Bogen Communications G8G Outdoor In-Ground All-Weather
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications G8G Outdoor In-Ground All-Weather contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The green G8G Outdoor In-Ground All-Weather Speaker from Bogen Communications is an 8" loudspeaker which uses NEAR Metal Diaphragm Technology (MDT) and NEAR Magnetic Liquid Suspension (MLS) to provide superior sound and weather durability. The drivers are encased in a polyethylene enclosure, with a stainless steel grille protecting the driver elements (tweeter and woofer). An input pigtail is provided with multiple wire selection for 8Ω or 70V operation. This G8 speaker is designed to be buried up to 10" in the ground. Midrange and high frequencies are balanced to the low frequency output when the enclosure is installed as recommended. The earth reduces the enclosure's resonance, improving the clarity and detail of the sound. - Outdoor, in-ground, all-weather speaker with fully-sealed enclosure
- Sloped cabinet panels ensure pull-out resistance of the loudspeaker when buried
- 10" maximum installation hole depth
- Metal-alloy MDT woofer cone delivers natural sound with ultra-low distortion
- High efficiency and power handling for optimum performance
- Dual-layer voice coil with separate inner and outer windings for high output with ultra-low distortion
- Patented MLS magnetic fluid voice coil suspension replaces distortion-causing mechanical spider
- Compound rubber surrounds resist UV rays and salt spray and chemicals
- Multiple input power connections
- High-density, rotational-molded enclosure resists chipping, scratching, and damage from impact
- Low-resonance cabinet structure
- Corrosion-resistant driver frames
- Wide coverage angles produce a broad sound field which provides even coverage throughout listening area
UPC: 765368100785 In the Box Bogen Communications G8G Outdoor In-Ground All-Weather Speaker (Green) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications G8G Outdoor In-Ground All-Weather Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications G8G Specs | LF Driver Size | 8" (203 mm) nominal diameter metal alloy cone utilizing patented Magnetic Liquid Suspension (MLS) | | HF Driver Size | 1" (25 mm) titanium cone coaxial design | | Frequency Response | 45 Hz - 20 kHz @ -10 dB | | Sensitivity | 1 W / 1 m: 91 dB SPL | | Maximum SPL | 114 dB continuous, 120 dB Peak @ 1 m | | Power Input | 150 W (8Ω) or 64 W (70 V) maximum | | Impedance | Nominal 8Ω or 70 V | | Power Settings | 70 V: 2, 4, 8, 16, 32, and 64 W | | Termination | Input: 8 x color-coded conductor cable | | Certifications & Ratings | Meets or exceeds Mil-Std-810E, IEC IP56 | | Enclosure Material | LLDPE (Linked Low-Density Polyethylene, UV-Inhibited) | | Color | Green | | Dimensions (H x W x D) | 17.25 x 13 x 12.25" (44 x 33 x 31 cm) | | Weight | 14 lb (6.4 kg) | | | | Box Dimensions (LxWxH) | 16.0 x 15.0 x 5.0" |
