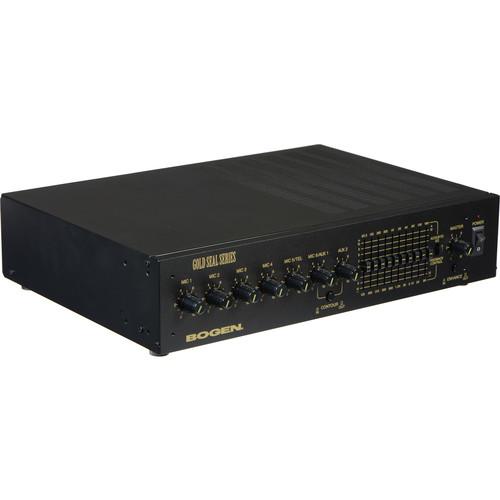

Product description Incorporating Class-D Amplification into its design, the Bogen Gold Seal Series GS35D is a 35W rackmountable PA intended for public-address scenarios, such as conferences, panel discussions, presentations, seminars, clubs, outdoor events, or any other circumstance in which a PA must be complemented by telephone-paging capabilities. This amp sports a dual-function 10-band EQ, a variable-loudness contour, and an Audio Enhancement feature for improved clarity of speaking.
Overall, the GS35D can accommodate 4x XLR balanced mics, 2x auxiliary inputs, and 1x telephone input, while simultaneously providing 4- and 8-Ohm speaker outputs for 25V, 25VCT, and 70V distributed systems. The GS35D also offers a booster-amp output, a tape output, and a power output.

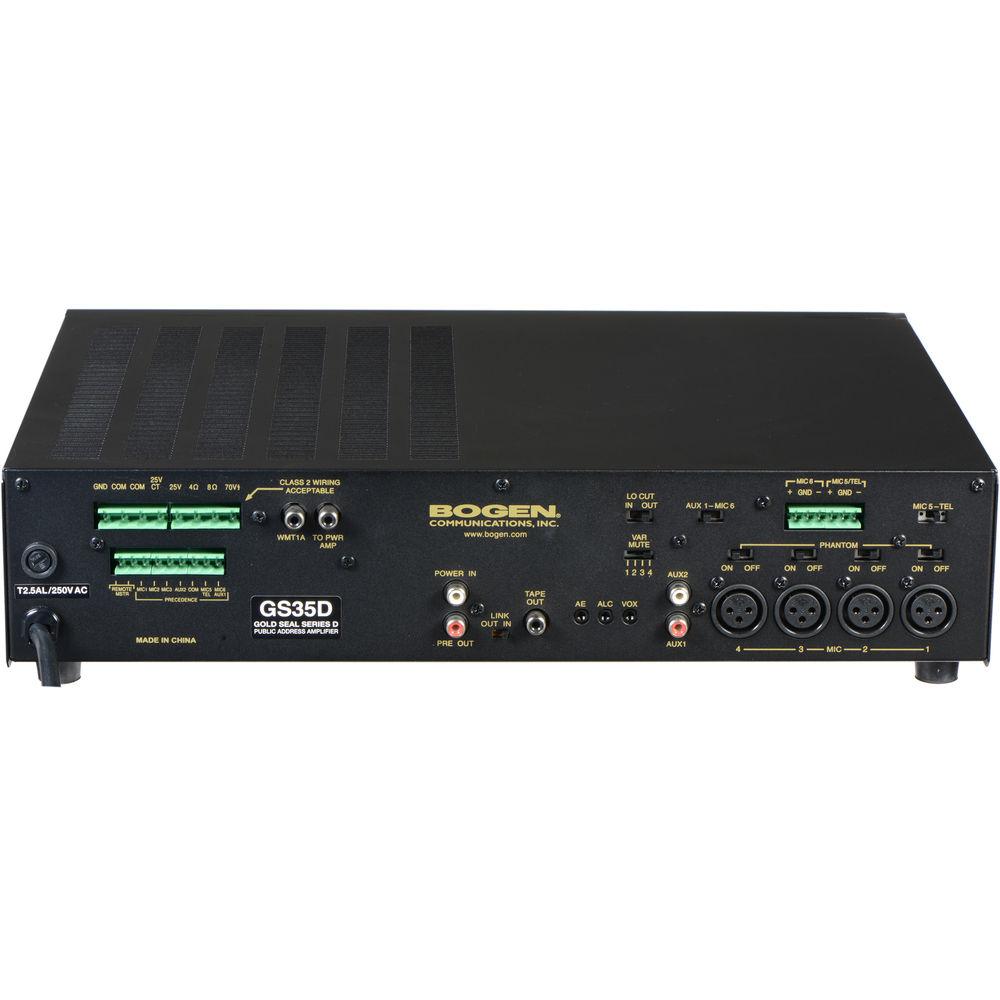

Turn your attention to the rear panel, and you'll notice a bevy of connection possibilities: 4x XLR connections, phoenix connectors to service its screw terminal, and two RCA jacks for auxiliary devices. The XLR inputs all have phantom power switches, should you need to power condenser microphones. If you wish to apply phantom power to channels five and six, you can utilize an internal jumper to do so. - Audio-Sculpting Options

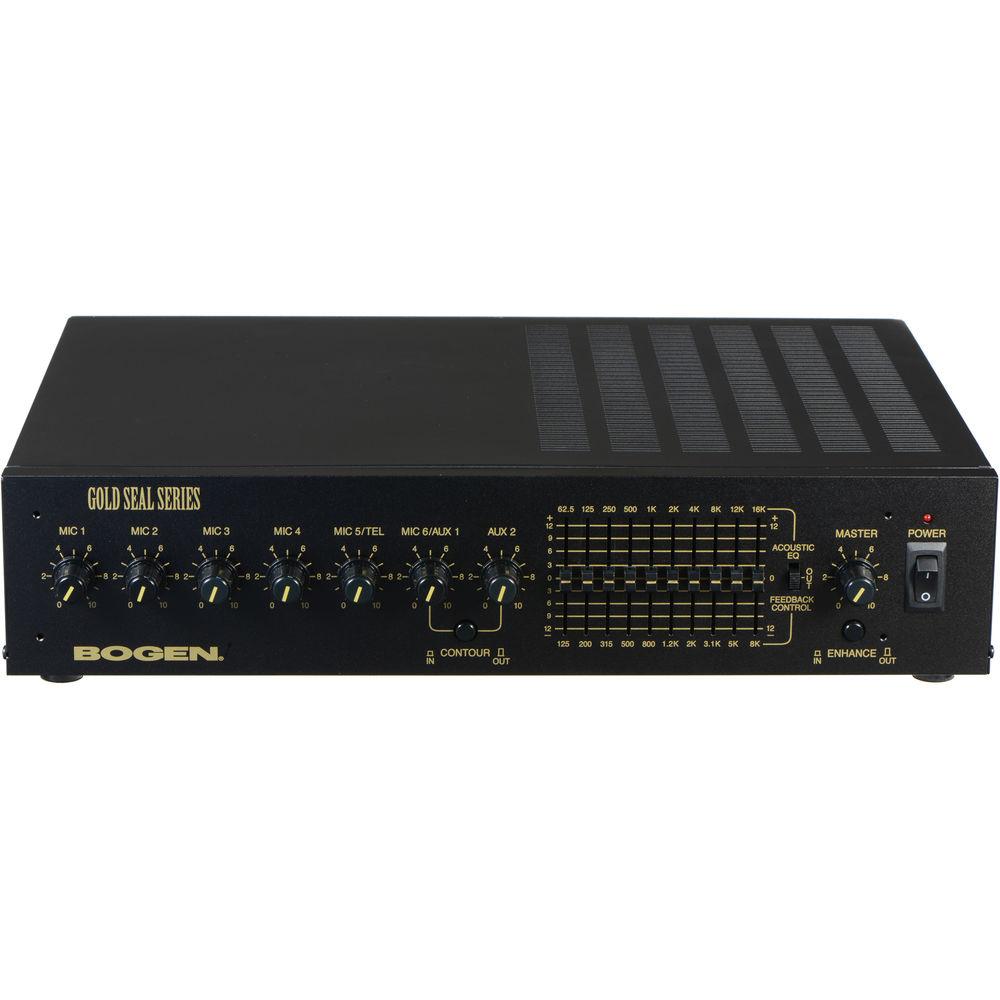

- A dual 10-Band EQ located on the front panel can be utilized to control feedback or for other acoustic-shaping purposes, while an Audio Enhancement feature regenerates upper harmonics to inject a sense of presence into the signal chain, resulting in clarity improvements, increased intelligibility, and a boost in perceived volume. This feature can be blended with incoming dry audio via a rear-panel knob. Furthermore, a Contour Switch allows you to restore high and low frequency otherwise ignored by the human ear at low volume levels. This effect, if instantiated, gradually subsides as you crank the volume of the overall system.
- Telephone-Paging Controls
- The GS35D boasts such features as Automatic Level Control for differing voice levels/speaking styles, voice-activated muting over auxiliary tracks, and a variable-mute function which allows you to select the level of attenuation from -10 to -60 dB whilst paging.
- Additional Features
-
- Remote master-volume-control capability
- Insert optional signal-processing units
- Booster-amp output
- Low-frequency roll-off for mic channels
Link switch controlling internal connection between preamp/power amp stage (for use with external signal-processing equipment)
- RCA unbalanced output, pre-EQ and master volume, for recording
UPC: 765368482799 In the Box Bogen Communications Gold Seal Series GS35D 35W Public Address Amplifier Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications Gold Seal Series GS35D 35W Public Address Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications v Specs | Power Rating | 35 W (RMS) | | Frequency Response | Transformer Output: 65 Hz to 20 kHz, +0/-2 dB @ -2 dB Direct Output - 20 Hz to 20 kHz, +0/-1 dB @ rated power | | Distortion | Transformer Output: 0.5% (max.), 0.3% (typ.), 65 Hz to 20 kHz @ -2 dB Direct Output: 0.5% (max.), 0.3% (typ.), 20 Hz to 20 kHz | | Signal to Noise | Fundamental: -70 dB or better
Aux 1 and 2: -70 dB or better
Tel: -70 dB @ 600 Ohms
Mics 1-6: -60 dB @ 200 Ohms | | Inputs | 4x XLR balanced inputs
2x balanced screw terminal inputs, 1x for Mic/Tel (via phoenix connectors)
2x unbalanced RCA auxiliary inputs
1x unbalanced RCA power input | | Input Sensitivity | XLR inputs: 0.35 mV (200 Ohms)
Auxiliary inputs: 0.085 V (10 kOhms)
Telephone inputs: 0.07 V (600 Ohms)
Power input: 1 V | | Outputs | 1x Terminal strip
4x unbalanced RCA outputs (tape, preamp, power-amp, 600 Ohms 1WMT1A) | | Output Sensitivity | Power amp: 5V @ rated output via RCA jack
Power output: 1 V via RCA jack
WMTIA output: 25 V @ rated output via RCA jack
Tape output: 687 mV @ rated output via RCA jack | | Output Impedance | 4 Ohms, 8 Ohms, 25 V, 25 VCT, 70 V | | Output Regulation | > 2 dB from no load to full load | | AC Input Voltage | 120 VAC | | AC Current (l) | 0.9 A | | Variable Mute Range | -60, -21, -10, 0 dB (aux 1 & 2) | | Automatic Level Function | Distortion: <0.5%
Compression: 25 dB (Tel) | | VOX Threshold | Input 20 mV (VOX control max. CW position) | | Mic Precedence | -60 dB: mic 1, 2, 3, mic 5 / tel, mic 6 / aux, aux 2 | | Phantom Power | 13 VDC | | Low Cut Filters | 3 dB @ 100 Hz | | Loudness Switch | +8 dB @ 100 Hz, +4 dB @ 10 kHz (Aux 1 & 2 control at 1/4 CW position) | | Overload Protection | Electronic with automatic reset | | Thermal Protection | Thermistor attached to heat sink | | Dimensions and Weight | Not specified by manufacturer | | | | Package Weight | 14.2 lb | | Box Dimensions (LxWxH) | 19.5 x 15.0 x 5.8" |
