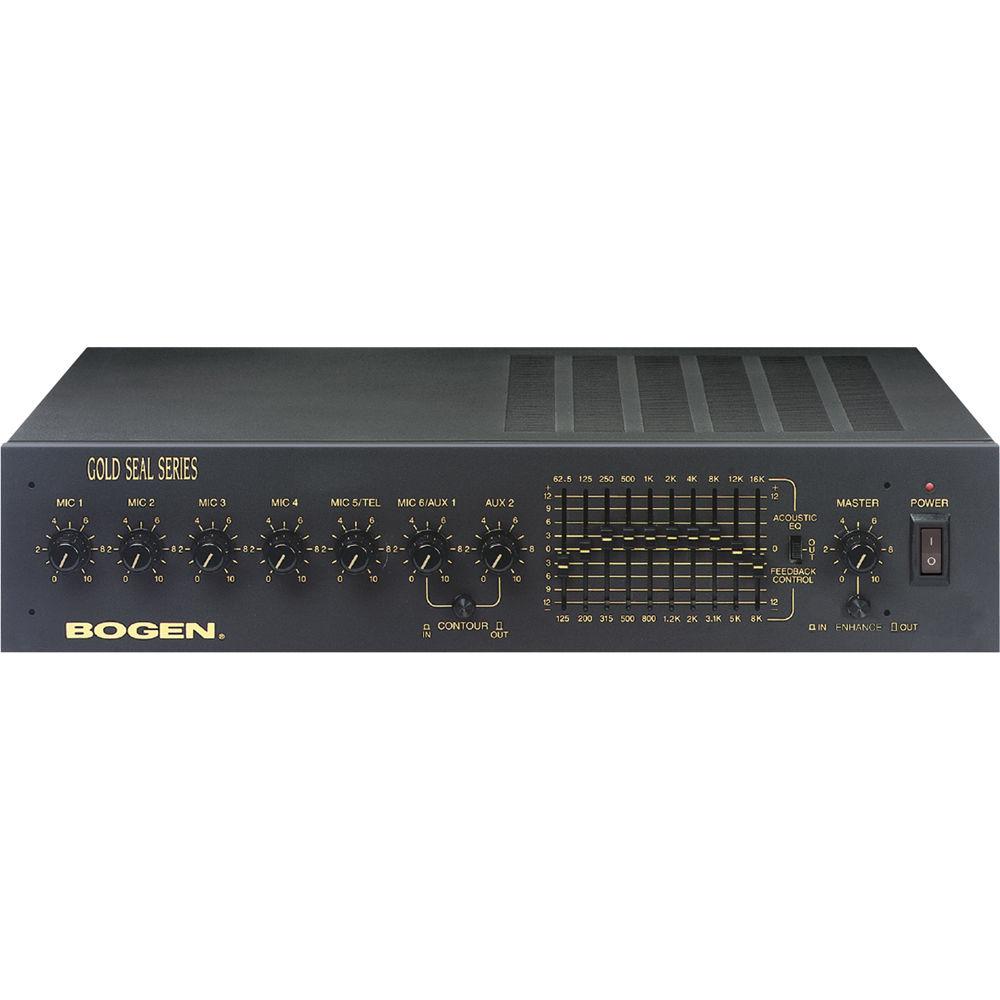

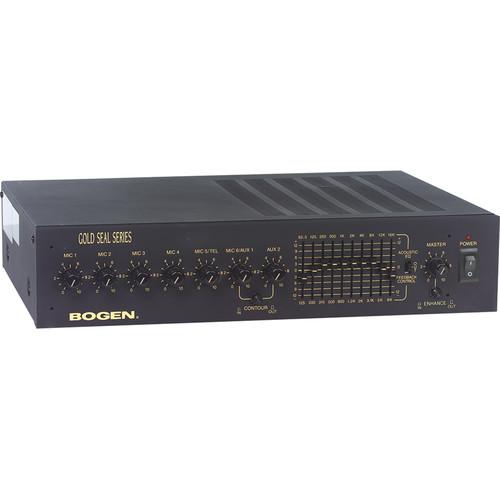

Product description The Bogen GS100D Gold Seal Series Amplifier (100W) is a 6-channel Class-D rack-mountable power amplifier with a dual-function 10-band EQ, a variable loudness contour, an Audio Enhancement circuit, and telephone paging capabilities. The GS100D accommodates up to six balanced mics, two auxiliary inputs, and a telephone input. It has 4 and 8 Ohm speaker outputs, 25V, 25VCT, and 70V for distributed systems, a booster amp and power amp output, and a recording device feed.

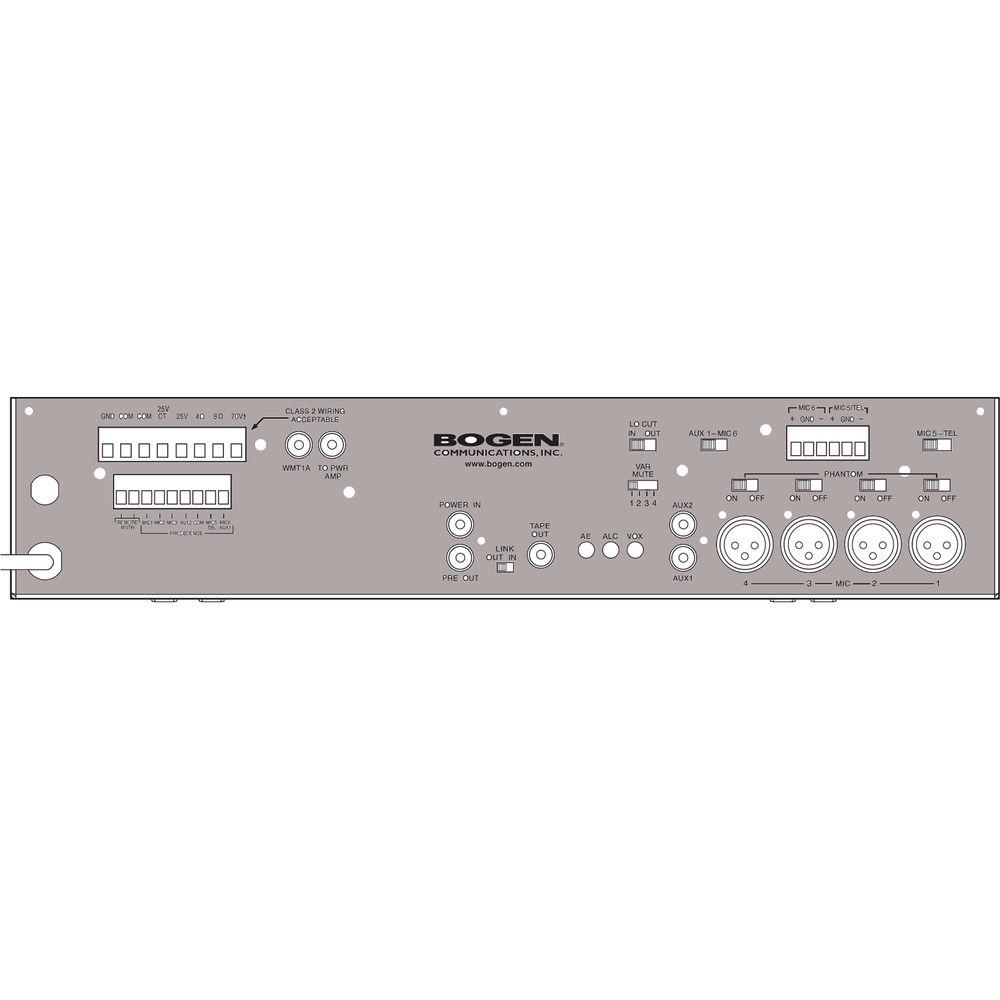

For the microphone inputs the PA has four XLR connections, one screw terminal, and an RCA jack, each with switchable phantom power and low frequency roll off. The GS100D has dedicated volume controls for all inputs, with a global audio enhancement switch with mix control. Also, the aux 1 / mic 6 and aux 2 channels have a contour switch for EQing loudness. The mic 5 / tel and mic 6 / aux 1 inputs are switch-selectable, and the mic/aux/tel precedence function enables external mute control for individual inputs. It also has a line-matching transformer output (available separately), and a telephone paging input feature with automatic level control and voice activation for muting the aux inputs.
Its dual-function 10-band EQ can be used for either feedback control or acoustic shaping. With the GS100D, you can insert signal processing units, activate the EQ contour switch for aux 1 & 2, and/or engage the global audio enhancement switch to finesse your overall sound. You can change the master level via a remote volume control (GSRVC; available separately), which is functional for up to 1000'.
The Gold Seal Series 100 is suitable for sound-reinforcement tasks at conferences, panel discussions, presentations, seminars, clubs, and outdoor events. -
- Six microphone inputs
- Telephone input with automatic level control
- Auxiliary output for recording
- 10-band graphic EQ for feedback control or acoustic shaping
- Loudness contour function
- Global audio enhancement switch
- Phantom power for all mic inputs
- Aux input muting
- Remote master volume control capability
- Insert optional signal-processing units
- Booster amp output
- Low-frequency roll-off for mic channels
- Optional rack-mounting kit: GSDRPK
- Optional security cover: GSTRC
UPC: 765368482812 In the Box Bogen Communications GS100D Gold Seal Series Amplifier (100W) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications GS100D Gold Seal Series Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications GS100D Specs | Power Rating | 100 W (RMS) | | Transformer Output | Frequency Response: 65 Hz to 20 kHz, +0/-2 dB
Distortion: 0.5% (max), 65 Hz to 20 kHz | | SNR | Fundamental: -70 dB
Aux 1 and 2: -70 dB
Tel: -70 dB @ 600 Ohms
Mics 1-6: -60 dB @ 200 Ohms | | Inputs | Microphone
4x XLR (low-Z balanced)
2x pluggable screw terminals (low-Z balanced)
Sensitivity: 0.35 mV (200 Ohms)
Aux 2x Hi-Z RCA
Sensitivity: 0.085 V (10 kOhms)
Telephone: Pluggable screw terminals, sensitivity: 0.07 V (600 Ohms)
Pluggable Terminal Strip: Precedence (mics 1-3, mic 5 / tel, mic 6 / aux 1, aux 2, com) | | Outputs | WMT1A: RCA, 25 V @ rated output
Power Amp: RCA, 5 V @ rated output
Tape Out: RCA, 700 mV @ rated output
Pluggable Terminal Strip: Gnd, com, loads, 25 V, 70 V
Preamp: RCA | | Output Impedance | Balanced or unbalanced 4 Ohm or 8 Ohm | | Output Regulation | > 2 dB from no load to full load | | AC Input Voltage | 120 V ~ 60 Hz | | AC Current (l) | 2.1 A | | Variable Mute Range | -60, -21, -10, 0 dB (aux 1 & 2) | | Automatic Level Function | Distortion: <0.5%
Compression: 25 dB (Tel) | | VOX Threshold | Input 20 mV (VOX control max cw position) | | Mic Precedence | -60 dB: mic 1, 2, 3, mic 5 / tel, mic 6 / aux, aux 2 | | Phantom Power | 13 VDC | | Low Cut Filters | 3 dB @ 100 Hz | | Loudness Switch | +8 dB @ 100 Hz, +4 dB @ 10 kHz (Aux 1 & 2 control at 1/4 cw position) | | Overload Protection | Electronic with automatic reset | | Thermal Protection | Thermistor attached to heat sink | | Dimensions (W × H × D) | 16.5 x 3.5 x 13.5" / 41.9 x 8.9 x 34.3 cm | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 19.5 x 15.0 x 5.5" |
