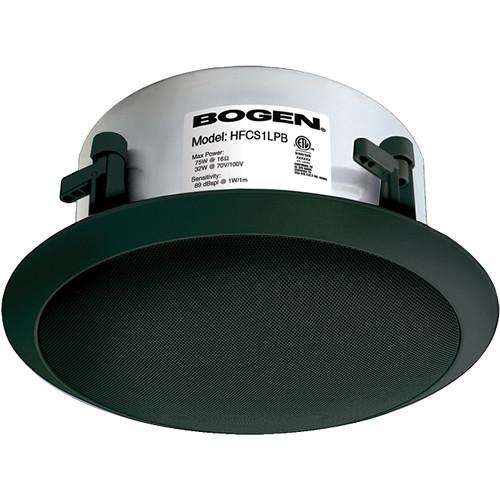

Product description The black HFCS1LPB High Fidelity Ceiling Speaker from Bogen Communications is a loudspeaker designed to deliver superior sound and clear intelligibility in a variety of ceiling environments. The speaker can be easily installed in hard-surfaced ceilings, suspended ceilings, and new constructions. It contains a wide dispersion coaxial driver and has a single attachment point for a safety cable (sold separately).
This High Fidelity speaker features a low-distortion speaker design and a computer-matched venting system to deliver high intelligibility and low-frequency response for both music and speech reinforcement. The speaker offers several levels of power output controlled via a front-mounted rotary tap selector switch (under grille). - Wide-dispersion coaxial driver for broad and even coverage
- Designed to deliver good off-axis coverage with smooth contouring
- Computer-matched venting system for full bass output
- Low-profile housing allows greater range of installations
- High-power handling capability for foreground sound
- Selectable power taps via front-mounted control: 32, 16, 8, 4, 2, and 1W @ 70V and 32, 16, 8, 4, and 2 @ 100V
- 16 Ω input for non-transformer, multi-speaker systems (selectable via tap selector switch)
- Easy wiring with plug-in connector
- Integral swing-out clamps for easy installation
- Connector provides loop-through terminals for next speaker
- Attachment point for seismic cable (safety cable)
- Input terminal cover with knockouts and safety eyelet provides protection for connections
UPC: 765368482157 In the Box Bogen Communications HFCS1LPB High Fidelity Ceiling Speaker (Black) Input Terminal Cover (2 Halves) 4 x Screw Snap-Lock Input Plug Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications HFCS1LPB High Fidelity Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications HFCS1LPB Specs | LF Driver Size | 6.5" (165 mm) polypropylene cone | | HF Driver Size | 0.75" (20 mm) polycarbonate dome | | Frequency Response | 78 Hz - 19 kHz @ -10 dB | | Sensitivity | 1 W / 1 m: 89 dB (average 100 Hz to 10 kHz) | | Impedance | Low: 16 Ω / High (70 / 100 V) | | Power Input | 75 W @ 16 Ω, 32 W @ 70 / 100 V maximum | | Power Settings | 70 V: 32, 16, 8, 4, 2, 1
100 V: 32, 16, 8, 4, 2 | | UL Listings | Standard 60065 for US and Canada | | Materials | Baffle: Fire-rated (94 VO) ABS
Back Can: Heavy-gauge steel | | Termination | 4 x terminal input connector | | Color | Black | | Dimensions (Diam. x Depth) | 12.3 x 7.8" (31.2 x 19.7 cm) | | Weight | 8 lb (3.6 kg) | | | | Box Dimensions (LxWxH) | 15.0 x 14.0 x 11.0" |
