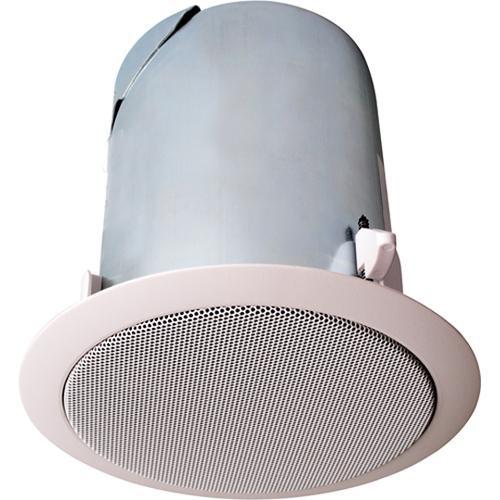

User Manual for Bogen Communications HFSF1 Small Footprint High-Fidelity 70V Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the Bogen Communications HFSF1 Small Footprint High-Fidelity
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications HFSF1 Small Footprint High-Fidelity contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The HFSF1 Small-Profile Ceiling Speaker is intended for use in 70V commercial audio and paging systems. This sturdy speaker is easy to install and only requires a 6-1/4" diameter opening in walls, ceilings or ceiling tiles. Its 7.25" enclosure keeps it compact and unobtrusive. Selectable power taps are mounted in the front. The HFSF1 is an ideal solution for commercial offices, retail and anywhere a small 70V speaker is required. - Mounts into a 6-1/4" diameter opening in ceilings, walls, etc.
- Installs in a wide range of ceiling types
- For 70V and low-impedance systems
- Off-white paintable finish
UPC: 765368460315 In the Box Bogen Communications HFSF1 Small Footprint High-Fidelity 70V Ceiling Speaker Snap-Lock Input Connector Steel Terminal Cover 2 x Mounting Screws 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications HFSF1 Small Footprint High-Fidelity 70V Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications HFSF1 Specs | Active or Passive | Passive | | Frequency Response | 78Hz - 20kHz | | Power Capacity | 50W @ 16 ohms, 16W @ 70V | | Maximum Sound Pressure Level (SPL) | 86dB | | Impedance | Low (16ohms) / High (70V) | | Crossover | Not Specified by Manufacturer | | Shielded | No | | Low Frequency Driver | 4" (10.16mm) Polypropylene Cone | | High Frequency Driver | 3/4" Polycarbonate Dome | | Enclosure Material | Baffle: Fire-rated (94VO) ABS
Back Can: Plated steel | | Input Connections | 4 Terminal plug-in connector | | Dimensions | 7.25" (18.41cm) Diameter
7.50" (19.05cm) Mounting Depth | | Weight | 4.5 lbs (2.04kg) | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 9.2 x 8.2 x 7.9" |
