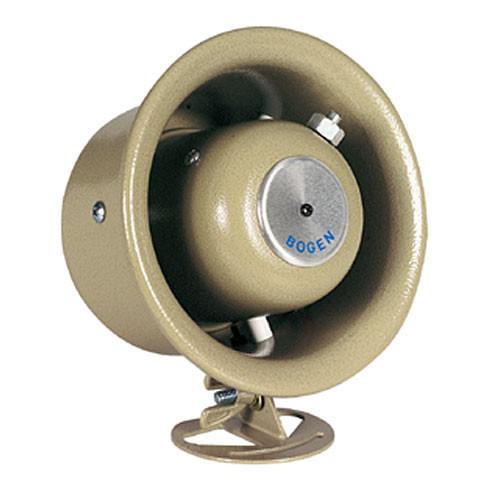

Product description The mocha Bogen Communications HS7EZ is an Easy Design series 7.5W single-tap paging horn offering intelligible voice reproduction and versatile positioning for paging, talkback, and security applications in work sites, schools, parking lots, warehouses, and more. When connected to a 70V amplifier (available separately), it delivers a 7.5W output, a sound pressure level of 105 dB, and a frequency response of 250 Hz to 14 kHz. Volume is adjustable via a stepped attenuator control. Its weatherproof, all-metal housing ensures reliable durability indoors and outdoors, and can be precisely tilted and swiveled using the sturdy mounting bracket. Banding slots allow mounting to a beam or pillar, and I-beam flange mounting is supported via the Bogen BC1 clamp (available separately). A 12" lead wire permits simple electrical connections to your 70V amp. - Stepped attenuator volume control
- 12" lead wire for simple electrical connections
- Weatherproof metal housing covered in a durable textured enamel finish
- Tilt-and-swivel mounting bracket provides flexible positioning
- Banding slots allow easy attachment to a beam or pillar
- Mount to I-beam flange using Bogen BC1 beam clamp (available separately)
- Bogen TCSPT1 terminal cover (available separately) enables connection of conduit fittings
In the Box Bogen Communications HS7EZ Easy Design 7.5W Paging Horn (Mocha) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications HS7EZ Easy Design 7.5W Paging Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications HS7EZ Specs | Power Rating | 7.5 W RMS continuous | | Sound Pressure Level | 105 dB SPL at 4' on axis with rated power output at 1 kHz | | Frequency Response | 250 Hz to 14 kHz | | Dispersion | 120° | | Input Impedance | 653 Ohms | | Input | 12" / 30.5 cm lead wire | | Construction Material | Weatherproof metal | | Dimensions (Diam. x Depth) | 6 x 4" / 15.2 x 10.2 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 7.25 x 6.25 x 5.0" |
