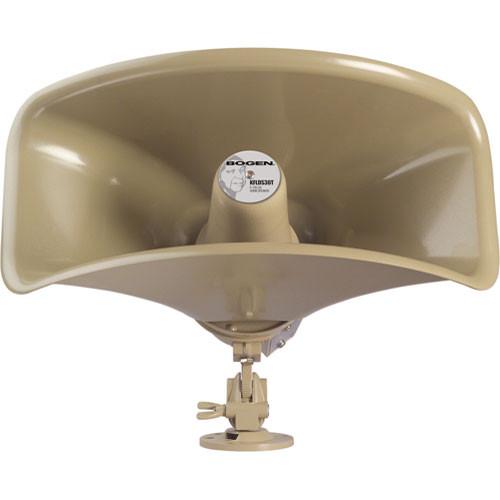

User Manual for Bogen Communications KFLDS30T 30W Wide-Dispersion Reentrant Horn Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bogen Communications KFLDS30T 30W Wide-Dispersion Reentrant
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications KFLDS30T 30W Wide-Dispersion Reentrant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description Finished in mocha enamel, the Bogen Communications KFLDS30T is a wide-dispersion reentrant horn loudspeaker offering versatile orientation and adjustable tap settings for indoor and outdoor paging applications with constant voltage systems. Sturdy aluminum and polycarbonate construction combined with a weatherproof design deliver reliable durability in a variety of environments. With a 30W power rating at 70V (15W at 25V), it produces a high maximum SPL of 119 dB. The 7-position tap selector switch enables quick configuration of impedance and wattage settings. The rotatable horn allows the 70 x 95° dispersion angle to be splayed vertically or horizontally, and the tilt-and-swivel mounting bracket ensures simple positioning. A protective plastic cover shields the connectors, protects the tap selector, and serves as strain relief for your audio line, which can be easily attached to the KFLDS30T's screw terminals. - Weatherproof design for indoor and outdoor use
- Self-aligning, field-replaceable diaphragm
- 70 x 95° dispersion with rotatable horn flare
- 7-position, weather-sealed tap selector switch
- All-purpose mounting bracket provides precise positioning in the vertical and horizontal planes with a single adjustment
- Screw terminals for easy audio line connection
- Plastic cover protects connectors and tap selector switch, and provides strain relief for the audio line
- Mountable to an I-beam flange using Bogen BC1 beam clamp (available separately) or to an electrical box using Bogen HSES10 mounting strap (available separately)
- Connect conduit fittings via Bogen TCSPT1 terminal cover (available separately)
UPC: 765368480276 In the Box Bogen Communications KFLDS30T 30W Wide-Dispersion Reentrant Horn Loudspeaker (Mocha) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications KFLDS30T 30W Wide-Dispersion Reentrant Horn Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications KFLDS30T Specs | Frequency Response | 300 Hz to 12 kHz | | Power Rating | 30 W RMS at 70 V
15 W RMS at 25 V | | Impedance | 25/70 V | | Power Taps | Watts at 70 V: 1.8, 3.7, 7.5, 15, or 30
Watts at 25 V: 0.25, 0.5, 0.9, 1.8, 3.7, 7.5, or 15 | | SPL | At 30 W: 119 dB at 1 meter on axis (average 400 Hz to 3 kHz)
At 1 W: 104 dB at 1 meter on axis (average 400 Hz to 3 kHz) | | Dispersion | 70 x 95° with rotatable horn flare | | Construction | Aluminum and polycarbonate | | Dimensions (W x H x D) | 14.4 x 8.3 x 12.9" / 36.5 x 21.0 x 32.7 cm | | Weight | 6 lb / 2.7 kg | | | | Package Weight | 8.55 lb | | Box Dimensions (LxWxH) | 15.5 x 11.8 x 10.8" |
