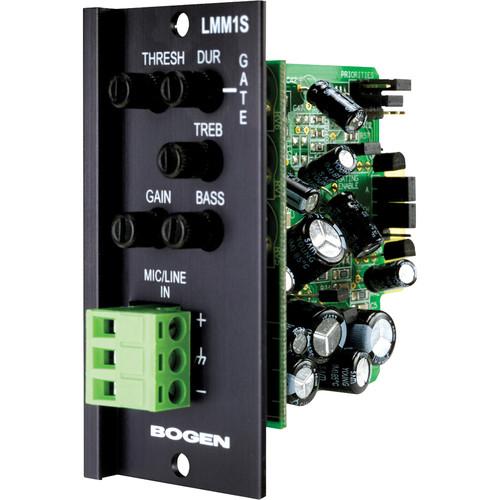

Product description The LMM1S Microphone/Line Input Module with Screw Terminal Connector from Bogen Communications is an actively balanced plug-in module designed to pre-amplify microphone inputs to line-level. It is compatible with the Vector mixer/pre-amplifier model VMIX. A mic/line switch sets the input gain range for the intended input device. Jumpers are used to select between 4 levels of priority; the LMM1S can mute lower priority modules and can be muted from higher priority modules plugged into the same VMIX. When using the module with condenser microphones, a jumper can be set for the module to supply 24V phantom power. This input module features bass & treble, gain/trim, and gate threshhold & duration controls. - Line/microphone attenuator switch
- Gain, bass, and treble controls
- Gating with threshold and duration
- Screw terminal connectors
UPC: 765368200560 In the Box Bogen Communications LMM1S Microphone/Line Input Module with Screw Terminal Connector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications LMM1S Microphone Line Input Module with Screw Terminal Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications LMM1S Specs | Compatibility | Vector mixer/pre-amplifier VMIX | | Gain | Microphone: 18 to 60 dB
Line: -2 to 40 dB | | Frequency Response | 20 Hz - 50 kHz (+0/-3 dB) | | S/N | 20 Hz - 20 kHz: -76 dBV @ 60 dB gain | | Distortion | < 0.01% | | Input Impedance | Microphone mode: 2 kΩ
Line mode: 15 kΩ | | Gate Threshold | 2 - 25 mV @ minimum gain | | Gate | 0.5 - 5 second duration | | Priority | 4 levels | | Tone | ± 10 dB @ 100 Hz and 10 kHz | | CMRR | > 80 dB @ 1 kHz | | Controls | 1 x gain
1 x bass
1 x treble
1 x threshold
1 x duration | | Connector | 1 x 3-position pluggable Euro screw, microphone/line input | | Dimensions (W x H x D) | 1.4 x 3.1 x 3.5" (34.9 x 79.4 x 88.9 mm) | | Weight | 2.2 oz (62.4 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.858 x 3.78 x 1.654" |
