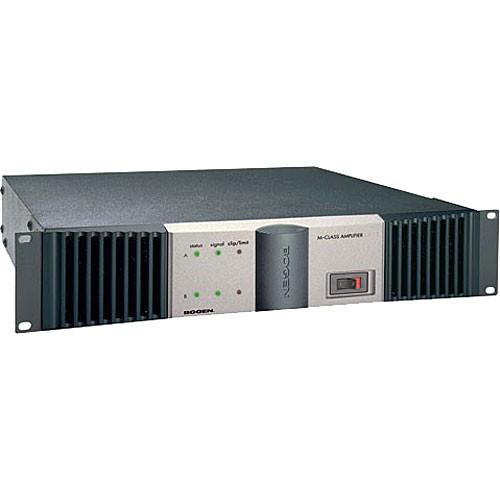

User Manual for Bogen Communications M300 M-Class Power Amplifier Click to enlarge the picture
Contents of the user manual for the Bogen Communications M300 M-Class Power Amplifier
- Product category: Standard Amplifiers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Standard Amplifiers
|
User manual for the Bogen Communications M300 M-Class Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The M300 M-Class Power Amplifier from Bogen is an amplifier that produces 300W stereo and 600W mono output power. This powerful amp allows installation of up to 2 input modules. These modules can be used for a variety of professional installations such as inputs from microphones, telephone systems, stereo sources, mono sources, or daisy-chaining of amplifiers for sound reinforcement applications, and more.The M300 relies on a massive power toroidal transformer. These amplifiers are built for solid performance with low distortion and a high slew rate. Output module circuitry is located away from input module circuitry, minimizing noise and ground loops. The amplifiers require little maintenance and cleaning as internal electronic components are located outside of the forced air-stream flow. Front-mounted fan filters provide easy removal and cleaning.The M-Class amplifier is enclosed in a heavy-duty, 14-gauge chassis. Three modes of operation are available including 70V mono, dual mono, and stereo. This full featured amp is packaged in only 2 rack units of space and can be stacked above or below other units without requiring extra ventilation space. The M300 M-Class Power Amplifier includes two fan filters with two grilles, a control-knob cover, four rubber feet with screws, two rack ears, and a preinstalled balanced input module. - Three selectable low-frequency rolloff choices of Flat/65/125 Hz
- 2 x 1 mixer function when in mono modes
- Post- and pre-EQ output feeds (in Mono mode)
- DC, overload, and thermal protection circuits
- Back-slope AC voltage stabilization provides dependable performance even with varying AC line voltages
UPC: 765368391046 In the Box Bogen Communications M300 M-Class Power Amplifier 2 x Filter and Grille Balanced, High Impedance Stereo Input Module (Preinstalled) Control Knob Cover 4 x Rubber Feet 2 x Rack Ears Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications M300 M-Class Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications M300 Specs | Power Rating | 600 W @ 70V Mono
300 W per Channel @ 4 Ohms
200 W per Channel @ 8 Ohms | | Input Sensitivity | 0.840 V for 300 W @ 4 Ohms | | Input Impedance | 4 to 8 Ohms, 70 V | | Frequency Response | 20 Hz to 20 kHz @ 1 W | | Signal-to-Noise Ratio | 103 dB Ref. 8 Ohms, F.P. | | Total Harmonic Distortion (THD) | <.02% | | Input Connections | 2 x Bogen Std. 12-Pin Connector Module / RCA Input | | Output Connectors | 5-Pin Touch-Proof Barrier Strip, RCA Pre- & Post-EQ Output | | Controls Front Panel | Power On/Off
Volume Control | | Controls (Rear) | Channel Balance
Lo-Cut Filter
Impedance Selector | | Indicators | Status (On/Protect/Sleep), Clip/Limit, Signal | | Cooling | Forced Air, Variable Speed Fan | | Power Consumption | 12 A | | Power Requirements | 95-130 VAC/60 Hz | | Specialties | 2 x Module Bay | | Dimensions | 17.0 x 3.5 x 18.5" / 43.2 x 8.9 x 47.0 cm | | Weight | 41.0 lb / 18.6 kg | | | | Package Weight | 46.0 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 10.0" |
