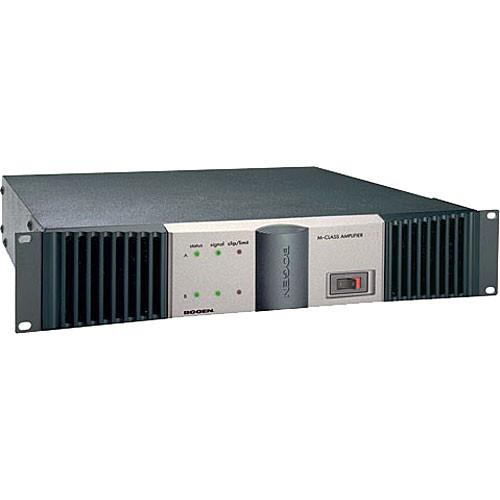

User Manual for Bogen Communications M450 M-Class Power Amplifier Click to enlarge the picture
Contents of the user manual for the Bogen Communications M450 M-Class Power Amplifier
- Product category: Standard Amplifiers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Standard Amplifiers
|
User manual for the Bogen Communications M450 M-Class Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The M450 M-Class Power Amplifier from Bogen is an amplifier that produces 450W of stereo or 900W of mono output power. This powerful amp allows installation of up to 2 input modules. These modules can be used for a variety of professional installations and can accept inputs from microphones, telephone systems, stereo sources, mono sources, the daisy-chaining of amplifiers for sound reinforcement applications, and more. A single standard input module with screw terminal inputs is supplied.The M450 relies on a massive power toroidal transformer and is built for solid performance with low distortion and a high slew rate. Output module circuitry is located away from input module circuitry, minimizing noise and ground loops. The amplifier requires little maintenance and cleaning, as internal electronic components are located outside of the forced air-stream flow. Front-mounted fan filters provide easy removal and cleaning.The M-Class amplifier is enclosed in a heavy-duty, 14-gauge chassis. Three modes of operation are available including 70V mono, dual mono, and stereo. This full-featured amp is packaged in only 2 rack spaces and can be stacked above or below without requiring extra ventilation space. The M450 M-Class Power Amplifier includes two grilles with filters, a control knob cover, four rubber feet with screws, two rack ears, and the aforementioned pre-installed balanced input module. - 3 selectable low-frequency roll-off filter choices: Flat /65 Hz /125 Hz
- 2x1 mixer function when in mono modes
- Post- and Pre-EQ output feeds (in mono mode)
- DC, overload, short circuit, and thermal protection circuits
- Back-Slope AC voltage stabilization provides dependable performance even with varying AC line voltages
UPC: 765368391084 In the Box Bogen Communications M450 M-Class Power Amplifier 2 x Filters and Grilles Balanced, High Impedance Stereo Input Module (Pre-Installed) Control Knob Cover 4 x Rubber Feet and Screws 2 x Rack Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications M450 M-Class Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications M450 Specs | Power Rating | 70 V Mono: 900 W @ 5.5 Ohms
4 Ohms: 450 W per Channel
8 Ohms: 300 W per Channel | | Input Sensitivity | 1.010 V for 450 W @ 4 Ohms | | Input Impedance | 4 to 8 Ohms, 70 V | | Frequency Response | 20 Hz to 20 kHz (+/- 0.25 dB) @ 1 W | | Signal-to-Noise Ratio | 106 dB ref. 8 Ohms, F.P. | | Total Harmonic Distortion (THD) | <.02% | | Input Connections | 1 x Pre-Installed Balanced Input Module with Screw Terminal Inputs | | Output Connectors | 5-Pin Touch-Proof Barrier Strip, RCA Pre- & Post-EQ Output | | Controls Front Panel | Power On/Off
Volume Control | | Controls (Rear) | Channel Balance
Lo-Cut Filter
Impedance Selector | | Indicators | Status (On/Protect/Sleep), Clip/Limit, Signal | | Cooling | Forced Air, Variable Speed Fan | | Power Consumption | 12 A | | Power Requirements | 95-130 VAC, 60 Hz | | Specialties | 2 Module Bays | | Dimensions | 17.0 x 3.5 x 18.5" / 43.2 x 8.9 x 47.0 cm | | Weight | 44.0 lb / 20.0 kg | | | | Package Weight | 48.0 lb | | Box Dimensions (LxWxH) | 24.0 x 23.0 x 9.0" |
