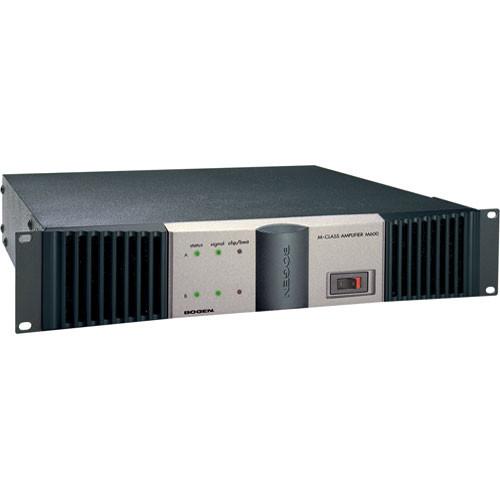

Product description The M600 M-Class Power Amplifier from Bogen is an amplifier that produces 600W stereo and 1200W mono output power. This powerful amp allows installation of up to 2 input modules. These modules can be used for a variety of professional installations and can accept inputs from microphones, telephone systems, stereo sources, mono sources, daisy-chained amplifiers for sound reinforcement applications, and more. A single standard input module with screw-terminal inputs is supplied.The M600 relies on a massive power toroidal transformer. These amplifiers are built for solid performance with low distortion and a high slew rate. Output module circuitry is located away from input module circuitry, minimizing noise and ground loops. The amplifiers require little maintenance and cleaning, as internal electronic components are located outside of the forced air-stream flow. Front-mounted fan filters provide easy removal and cleaning.The M-Class amplifier is enclosed in a 2 rack space, heavy-duty, 14-gauge chassis. Three modes of operation are available including 70V mono, dual mono, and stereo. This full featured amp is packaged in only 2 rack spaces and can be stacked with other components above or below without requiring extra ventilation space. The M600 M-Class Power Amplifier includes two grilles with filters, a control knob cover, four rubber feet with screws, two rack ears, and the aforementioned pre-installed balanced input module. - 3 selectable low-frequency roll-off choices: Flat /65 Hz /125 Hz
- 2x1 mixer function when in mono modes
- Post- and pre-EQ output feeds (in mono modes)
- DC, overload, short circuit, and thermal protection circuits
- Back-Slope AC voltage stabilization provides dependable performance even with varying AC line voltages
UPC: 765368391121 In the Box Bogen Communications M600 M-Class Power Amplifier 2 x Grilles with Filters Balanced, High-Impedance Stereo Input Module (Pre-Installed) Control Knob Cover 4 x Rubber Feet and Screws 2 x Rack Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications M600 M-Class Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications M600 Specs | Power Output | 70 V Mono: 1200 W @ 4 Ohms
4 Ohms: 600 W per Channel
8 Ohms: 400 W per Channel | | Input Sensitivity | 1.161 V for 600 W @ 4 Ohms | | Input Impedance | 4 to 8 Ohms, 70 V | | Frequency Response | 20 Hz to 20 kHz (+/- 0.25 dB) @ 1 W | | Signal-to-Noise Ratio | 109 dB ref. 8 Ohms, F.P. | | Total Harmonic Distortion (THD) | <.02% | | Input Connections | 2 x Input Module Bays
1 x Pre-installed Balanced Input Module with Screw Terminal Connections | | Output Connectors | 5-Pin Touch-Proof Barrier Strip, RCA Pre- & Post-EQ Output | | Controls Front Panel | Power On/Off
Volume Control | | Controls (Rear) | Channel Balance
Lo-Cut Filter
Impedance Selector | | Indicators | Status (On/Protect/Sleep), Clip/Limit, Signal | | Cooling | Forced Air, Variable-Speed Fan | | Power Consumption | 20 A | | Power Requirements | 95-130 VAC, 60 Hz | | Dimensions | 17.0 x 3.5 x 18.5" / 43.2 x 8.9 x 47.0 cm | | Weight | 46.0 lb / 20.9 kg | | | | Package Weight | 54.0 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 9.5" |
