User Manual for Bogen Communications MCD1X2U Speaker Module and Grille Kit Click to enlarge the picture
Contents of the user manual for the Bogen Communications MCD1X2U Speaker Module and
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications MCD1X2U Speaker Module and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|

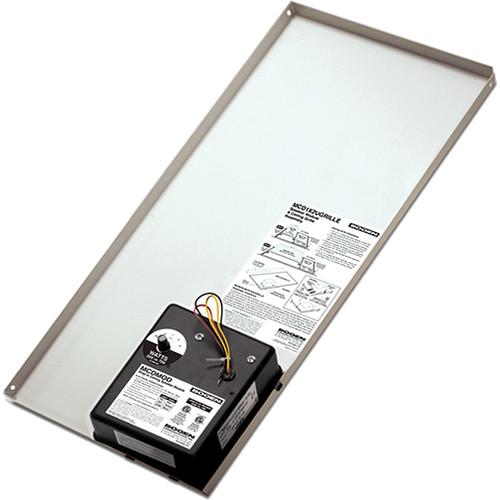

Product description The MCD1X2U from Bogen is a kit which consists of a MCDMOD Speaker Module and a MCD1X2UGRILLE 1' x 2' Ceiling Grille. - MCDMOD Speaker Module The MCDMOD from Bogen is a fully-enclosed MCD speaker module for drop-in ceiling sound reinforcement. The MCDMOD snaps onto a speaker assembly grille (sold separately). Since the module is not attached to the grille, it provides you the option of making wire connections before or after grille placement in the ceiling.
- 4.5" full-range speaker with a secondary high-frequency radiator
- 120° wide dispersion angles
- Broad sound field for even coverage throughout the listening area
- 1' x 2' Ceiling Grille for Modular Drop-In Ceiling Speaker (Off-White) The off-white 1' x 2' Ceiling Grille from Bogen Communications is a drop-in speaker grille for a modular drop-in ceiling speaker. Depending on the application's aesthetics or grid configuration, you may select the 1' x 2' Ceiling Grille to fit in either 2' x 2' or 2' x 4' suspended ceilings. It features 3 seismic attachment points and includes a tile support rail crossbar.
- 3 seismic attachment points
- Includes tile support rail crossbar
In the Box Bundle Items MCDMOD Speaker Module fsqbxwywxsdtsxyv 1' x 2' Ceiling Grille for Modular Drop-In Ceiling Speaker (Off-White) - Tile Support Rail Crossbar
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications MCD1X2U Speaker Module and Grille Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MCDMOD Speaker Module
| Speaker | 4.5" (11.4 cm) full-range | | Dispersion | 120° wide | | Rotary Switch | 4, 2, 1, 1/2, and 1/4 W power tap settings | | Compatibility | 70 V / 25 V systems | | Frequency Response | 160 Hz to 10.5 kHz | | Sensitivity | 85 dB (1 W / 1 m) | | UL Listed | UL Standard 60065 for U.S. and Canada
UL Standard 1480 for U.S. | | Dimensions (W x H x D) | 5.75 x 2.50 x 6.75" (14.6 x 6.4 x 17.2 cm) | | Weight | 2.5 lb (1.1 kg) | - 1' x 2' Ceiling Grille for Modular Drop-In Ceiling Speaker (Off-White)
| Material | Industrial grade steel | | Finish | Off-white, powder-coated | | Dimensions | 11.88 x 0.63 x 23.75" (30.2 x 1.6 x 60.3 cm) | | Weight | 2.5 lb (1.1 kg) |
