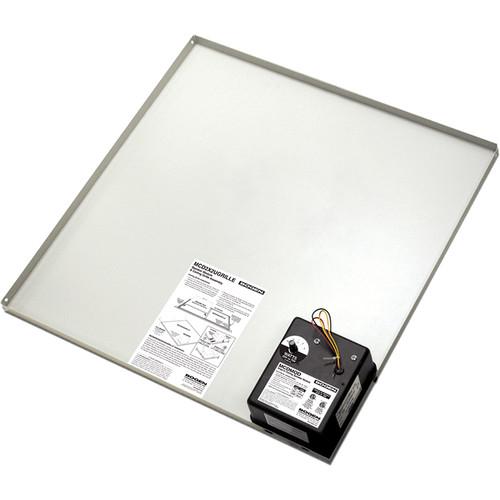

Product description The MCD2X2U from Bogen Communications is a kit which consists of a MCDMOD Speaker Module and a MCD2X2UGRILLE 2 x 2' Ceiling Grille, that when combined provide a modular drop-in ceiling panel with an integrated 25 V or 70 V speaker. - MCDMOD Speaker Module The MCDMOD from Bogen is a fully-enclosed MCD speaker module for drop-in ceiling sound reinforcement. The MCDMOD snaps onto a speaker assembly grille (sold separately). Since the module is not attached to the grille, it provides you the option of making wire connections before or after grille placement in the ceiling.
- 4.5" full-range speaker with a secondary high-frequency radiator
- 120° wide dispersion angles
- Broad sound field for even coverage throughout the listening area
- 2' x 2' Ceiling Grille for Modular Drop-In Ceiling Speaker (Off-White) The off-white 2' x 2' Ceiling Grille from Bogen Communications is a drop-in speaker grille for a modular drop-in ceiling speaker. Depending on the application's aesthetics or grid configuration, you may select the 2' x 2' Ceiling Grille to fit in either 2' x 2' or 2' x 4' suspended ceilings. It features 3 seismic attachment points and includes a tile support rail crossbar.
- 3 seismic attachment points
- Includes tile support rail crossbar
In the Box Bundle Items MCDMOD Speaker Module yuyafbcaxtuwzuue 2' x 2' Ceiling Grille for Modular Drop-In Ceiling Speaker (Off-White) - Tile Support Rail Crossbar
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications MCD2X2U Speaker Module and Grille Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MCDMOD Speaker Module
| Speaker | 4.5" (11.4 cm) full-range | | Dispersion | 120° wide | | Rotary Switch | 4, 2, 1, 1/2, and 1/4 W power tap settings | | Compatibility | 70 V / 25 V systems | | Frequency Response | 160 Hz to 10.5 kHz | | Sensitivity | 85 dB (1 W / 1 m) | | UL Listed | UL Standard 60065 for U.S. and Canada
UL Standard 1480 for U.S. | | Dimensions (W x H x D) | 5.75 x 2.50 x 6.75" (14.6 x 6.4 x 17.2 cm) | | Weight | 2.5 lb (1.1 kg) | - 2' x 2' Ceiling Grille for Modular Drop-In Ceiling Speaker (Off-White)
| Material | Industrial grade steel | | Finish | Off-white, powder-coated | | Dimensions | 23.75 x 0.63 x 23.75" (60.3 x 1.6 x 60.3 cm) | | Weight | 4.5 lb (2 kg) |
