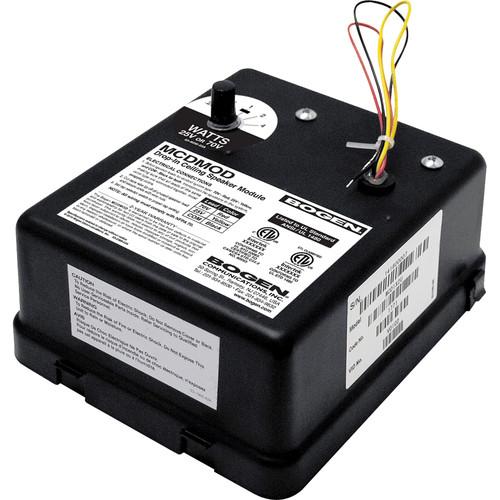

User Manual for Bogen Communications MCDMOD Speaker Module Click to enlarge the picture
Contents of the user manual for the Bogen Communications MCDMOD Speaker Module
- Product category: Accessories Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Accessories
|
User manual for the Bogen Communications MCDMOD Speaker Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The MCDMOD from Bogen is a fully-enclosed MCD speaker module for drop-in ceiling sound reinforcement. The MCDMOD snaps onto a speaker assembly grille (sold separately). Since the module is not attached to the grille, it provides you the option of making wire connections before or after grille placement in the ceiling. - 4.5" full-range speaker with a secondary high-frequency radiator
- 120° wide dispersion angles
- Broad sound field for even coverage throughout the listening area
In the Box Bogen Communications MCDMOD Speaker Module Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications MCDMOD Speaker Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications MCDMOD Specs | Speaker | 4.5" (11.4 cm) full-range | | Dispersion | 120° wide | | Rotary Switch | 4, 2, 1, 1/2, and 1/4 W power tap settings | | Compatibility | 70 V / 25 V systems | | Frequency Response | 160 Hz to 10.5 kHz | | Sensitivity | 85 dB (1 W / 1 m) | | UL Listed | UL Standard 60065 for U.S. and Canada
UL Standard 1480 for U.S. | | Dimensions (W x H x D) | 5.75 x 2.50 x 6.75" (14.6 x 6.4 x 17.2 cm) | | Weight | 2.5 lb (1.1 kg) |
