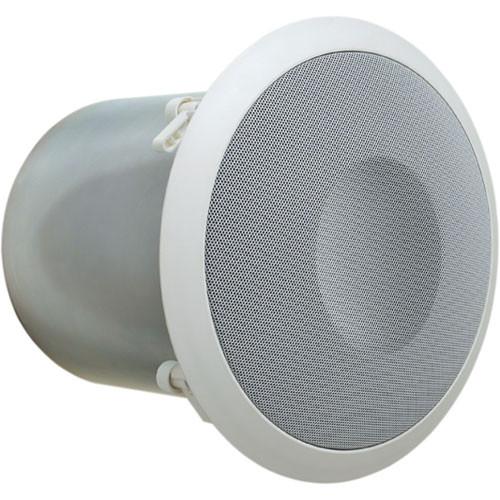

Product description The off-white OCS1 Orbit Ceiling Speaker from Bogen is a 2-way, 6.5" coaxial speaker. It is suitable for various ceiling applications as it can be installed on hard surfaced ceilings, or in suspended ceilings and new construction (with an optional TBCR bracket).
The speaker utilizes a spiderless driver and a one-piece metal alloy cone structure for clear articulation in both music and speech. It features a wide-dispersion coaxial driver, which has a coverage of 140° and a computer-matched venting system for full bass response. The speaker affords the user flexibility as it can be used at 16-ohms, or with 70V or 100V systems and power input selection is chosen by a front-mounted rotary switch located under the removable grille. - The Orbit speaker utilitzes Bogen's NEAR technologies such as MDT (Metal Diagram Technology) and MLS (Magnetic Liquid Suspension) for efficient, reliable sound
- Selectable power taps via front-mounted control
- Wide-dispersion coaxial driver provides coverage of 140°
- High definition metal-alloy cone
- High power handling capability
- 16-ohm input for non-transformer multi-speaker systems
- Snap-on connector for easier wiring
- Connector provides loop-through to next speaker
- Input terminal cover with knockouts and safety eyelet provides protection for connections
- Low-resonance cabinet structure
- Can be painted to match decor
- Integral swing-out clamps for installation in the ceiling surface
- Steel grille assembly with fine perforation, color-matched to baffle
- ABS material containing fire inhibitors with a 94VO rating
- Listed to UL Standard 60065 for US and Canada
UPC: 765368100389 In the Box Bogen Communications OCS1 Orbit Ceiling Speaker (Off-White) Input Terminal Cover Snap-Lock Input Connector Removable Grille Cover 4 x Screw Limited 5-Year warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications OCS1 Orbit Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications OCS1 Specs | | | Speaker Design | Coaxial ceiling speaker | | Frequency Response | 45 to 19,000 Hz (-10 dB with 16 ohm input) | | Power Input | 100W @ 16 ohms 3
32W @ 70V / 100V | | Power Settings | 70V: 32, 16, 8, 4, 2, 1W & 16 ohms
100V: 32, 16, 8, 4, 2W & 16 ohms | | Coverage Area | 140° | | Impedance | Low (16 ohms)
High (70V / 100V) | | Sensitivity | 89.5 dB / SPL | | Enclosure | Heavy-gauge plated steel back can | | | | Woofer | 6.5" MDT metal-alloy cone (MLS Voice Coil Centering System) | | Tweeter | 0.75" (20 mm) Polycarbonate dome, coaxially mounted | | | | Connector Type | 4-Screw snap-lock terminal strip | | Color | Off-White | | Cut-Out Size | 10.75" (273 mm) | | Mounting Depth | 11" (279 mm) minimum | | Dimensions (Diam. x Depth) | 12.4 x 12" (314 x 305 mm) | | Weight | 10 lbs (4.53 kg) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 15.0 x 14.3 x 14.0" |
