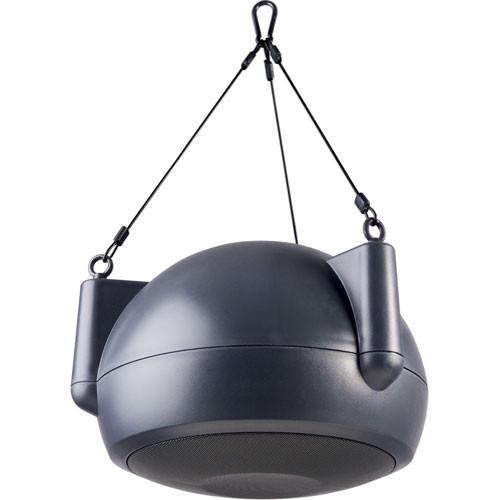

User Manual for Bogen Communications OPS1B Orbit Pendant Speaker Click to enlarge the picture
Contents of the user manual for the Bogen Communications OPS1B Orbit Pendant Speaker
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications OPS1B Orbit Pendant Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The OPS1B Orbit Pendant Speaker (Dark Gray) from Bogen is ideal for high ceiling and open space applications. This speaker uses a spiderless driver and one-piece metal alloy cone structure for exceptional articulation in both music and speech. The coaxial driver has wide dispersion of 140° with computer-matched venting system for full bass response. The OCS1 can be used with 16-ohms, 70V and 100V systems for flexibility. Enclosed in a low-resonance cabinet structure that employs an easy to use suspension system, which includes three-suspension cables with attached forged eye-bolts. - The Orbit speaker utilitzes Bogen's NEAR technologies, such as MDT (Metal Diagram Technology) and MLS (Magnetic Liquid Suspension) for efficient, reliable sound
- Selectable power taps via front-mounted control
- Coaxial driver provides dispersion of 140°
UPC: 765368100396 In the Box Bogen Communications OPS1B Orbit Pendant Speaker (Dark Gray) 3 x Suspension Cables 3 x Forged Eye Bolts 3 x Nuts Quick-Snap Clip Snap-Lock Input Connector 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications OPS1B Orbit Pendant Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications OPS1B Specs | | | Speaker Design | Coaxial Pendant Speaker | | Power Rating | 100W @ 16 ohms; 32W @ 70V/100V | | Impedance | Low (16 ohms) / High (70V/100V) | | Frequency Response | 45-19,000Hz | | Sensitivity | 89.5dBspl | | Crossover | Not specified by the manufacturer | | Enclosure | Heavy-gauge plated steel
Fire-rated (94VO) ABS | | Shielded | Not specified by the manufacturer | | | | Tweeter | 0.75" (20mm) Polycarbonate Dome | | Midrange | None | | Woofer | 6.5" MDT Metal-Alloy Cone (MLS Voice Coil Centering System) | | | | Connector Type | Terminal Strip | | Dimensions | 15" (381mm) Diameter x 9.25" (234mm) Depth | | Mounting Depth | Not applicable | | Weight | 10 lbs (4.53kg) | | Color | Dark Gray | | | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 16.0 x 15.0 x 12.0" |
