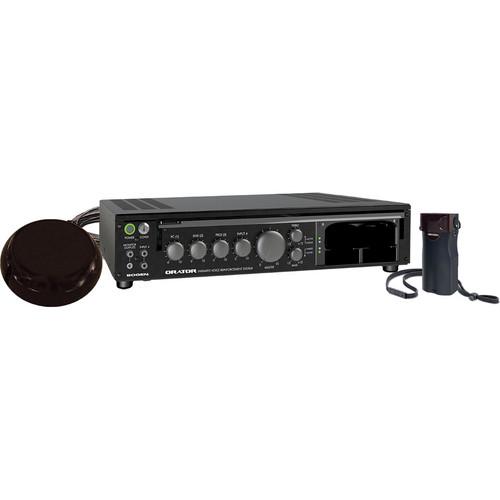

Product description The Bogen Orator 1 Voice Reinforcement System is a flexible and portable wireless microphone PA system aimed at presentation, speech and classroom applications. The system features the ORB35 compact base unit which features a built-in infrared receiver, 35 watt amplifier and multi-channel mixer.Also included is the OMX1 microphone transmitter that operates as a stand-alone microphone and a bodypack transmitter with an external microphone input. The microphone ships with a lanyard for wearing around the neck. The system easily connects to external speakers and there are several inputs for additional microphones and line level devices.There are 2 charging bays at the front of the ORB35 base unit for charging up to 2 OMX1 microphone transmitters. Also featured are base and treble controls, as well as a graphic EQ for in depth control over tone. The system also includes an infrared sensor (ORS1) that may be positioned anywhere in the room in order to achieve the best possible reception. ORB35 Receiver Base Unit - Dual front-mounted charging docks for mic/transmitters
- Master volume, plus separate volume controls for each input
- 8-band EQ: front-mounted bass and treble controls, plus 6-band rear-mounted graphic EQ
- Speaker output impedances: 70V, 25V, or 8-ohms
- Output feeds: booster amp, subwoofer
- Front-mounted system output (for assistive listening devices, recording, etc.)
- Page input with VOX-triggered priority override function
- Rotating, lockable front cover for tamper protection and secure storage of the mic/transmitters (2 keys provided)
- Confirmation tone with volume control (defeatable)
ORS1 IR Sensor - Remotely mounted sensor connects using standard coaxial cable
- Add additional sensors to improve reception in trouble spots
- Surface or T-bracket mounting
OMX1 Microphone Transmitter - Can be used as a handheld microphone, as well as worn on a lanyard around the neck, or as a body-pack with external microphone
- Built-in microphone with recessed volume control
- Optimally sized for handheld and pendant use
- Sculpted Comfort Grip for easy handling
- adjustable lanyard with break-away clasp for neck worn applications
- Rugged, reliable, spring-wire belt clip
- Use built-in microphone or external microphone (according to user preference)
- AUX input for wireless connection of audio sources (computers, MP3 players, etc.)
- Recharges when placed in receiver / base unit for storage
- Rechargeable, high-capacity Li-ion battery is included
- Comprehensive battery / status indicator
- Mute other mic / transmitter in the room via
- Initiate intercom call via function button (defeatable)
- Selection tab ensures each mic / transmitter will only store/recharge in its designated charging dock
- ID label strip to identify each mic/transmitter
- Battery charge status indicator
In the Box Bogen Communications Orator 1 Voice Reinforcement System ORB35 Receiver Base OMX1 Microphone/Transmitter 2 x Security Cover Keys 2 x Dock Selection Tabs Lanyard Lanyard Attachment Plate Rechargeable Li-ion Battery 5 x Blank Identification Cards Infrared Sensor Sensor Cable - 50' Long (15m) ORS1 Mounting Bracket & Hardware 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications Orator 1 Voice Reinforcement System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications Orator Specs | | | Tuning | Infrared Frequency Modulated | | Output Power | Amplifier: 35 Watts | | Output Impedance | Speaker: Balanced or unbalanced 8 ohms, 25V, 70V | | Channels | Two Independent Channels | | Carrier Frequency | 4 operational frequencies between 1.8 -2.7MHz
Selectable as two bands: 1.8/2.4 MHz or 2.1/2.7MHz | | Range | Up to 40' | | Frequency Response | 60Hz -20kHz Aux inputs, 100Hz -10kHz Channel A & B | | Signal to Noise Ratio | > 70dB Aux /Page inputs; > 60dB Channel A & B | | Distortion | <1% Aux inputs, < 3%Channel A & B | | Input Sensitivity | ORB35: AUX: 85mV; Priority Page: 150mV or 25/70V | | Input Impedance | ORB35:AUX: >10k ohms; Priority Page:1k ohms (min.) | | Controls | Front-Mounted: AUX 1-4 Level, Master Volume, Bass and Treble
Rear-Mounted: Channel A & B Level, Page Override Level, 6 bands of EQ, Confirmation Tone Level | | Audio Inputs | Front-Mounted: AUX 4 (Stereo combining RCA jacks)
Rear-Mounted: AUX 1-AUX 4 (Stereo combining RCA jacks); Page Override (pluggable terminal strip) | | Audio Outputs | Front-Mounted: Monitor Out (RCA jack and 1/8" Mini)
Rear-Mounted: Booster Out and Subwoofer Out (RCA jacks); Speaker connections (pluggable terminal strip) | | Switches | Front-Mounted: Power
Rear-Mounted: EQ In/Out, 8-position DIP switch (configuration) | | Control Connectors | Rear-Mounted: Sensor input (F-type Connector)
Rear-Mounted: C-form relay contact set (pluggable terminal strip) | | EQ Section | Bass and Treble controls (± 12 dB at 100 Hz and 10 kHz, respectively); 6-Band Graphic EQ (± 12 dB at 250, 500, 1k, 2k, 4k, and 8kHz) | | Indicators | Power; 2 Channel Active (one for each channel), 2 Charging (one for each dock) | | Power/Battery Chargers | Two front-mounted with lockable rotating cover | | Security | Rotating cover; lock/unlock in both open or closed positions | | Power Supply | 120V AC, 1A | | Dimensions (WxHxD) | 17.25 x 3.5 x 12.5" (43.81 x 8.89 x 31.75cm) | | Weight | 16 lb (7.25kg) | | | | Carrier Frequency | 4 operational frequencies between 1.8 - 2.7MHz | | Audio Inputs | Built-in Condenser Microphone;
MIC (external): Condenser only, mono 1/8" mini plug, 2V DC through 680 ohms, 1mV sensitivity min. 10 mV max AUX: Stereo or mono 1/8" mini plug, 3k Ω(min.) input, 250mV sensitivity | | Controls | On/Off Switch, Input Volume Control, 2 function buttons | | Batteries | Li-ion, Rechargeable, Bogen P/N 45-7543-05
0-15 hours (approx.), depending on transmit frequency | | Dimensions (WxHxD) | 1.9 x 4 x 1.2" (4.82 x 10.16 x 3.04cm) | | Weight | 4 oz (113g) |
