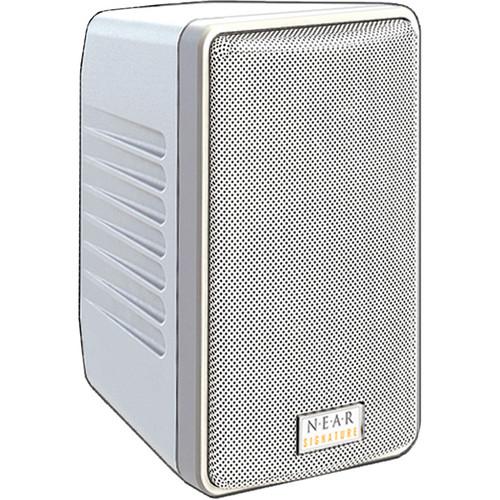

User Manual for Bogen Communications S4T 4.5" High-Performance 2-Way Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bogen Communications S4T 4.5" High-Performance 2-Way
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications S4T 4.5" High-Performance 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The S4T 4.5" High-Performance 2-Way Passive Loudspeaker (White) from Bogen Communications provides detailed audio from a compact and robust design. The speaker features a 4.5" metal alloy MDT cone woofer that utilizes patented NEAR MLS ferrofluid suspension to keep the voice coil centered for reduced distortion. The 1" titanium tweeter with ferrofluid damping provides crisp, soaring treble. Polymer compound cone surrounds resist UV rays, chemicals, and salt spray for excellent longevity.
The speaker has a 75W power handling capability at 8 ohms to provide a strong performance. It also has a 16W transformer with multiple power taps for use with 70V systems. This provides wide compatibility with a variety of sound systems. The injection-molded UV-protected ABS cabinet provides lasting good looks and durability with low resonance for excellent clarity. The cabinet features a powder-coated aluminum grille and mounting bracket for long-term use. The bracket uses hemispherical swivel mounting to make it easy to install, aim, and lock in the position of the speaker. - Compact and robust design with high-resolution metal cone drivers with broad dispersion
- The 4.5" metal alloy MDT cone woofer utilizes patented NEAR MLS ferrofluid suspension to keep the voice coil centered for reduced distortion
- The 1" titanium tweeter with ferrofluid damping provides crisp, soaring treble
- Polymer compound cone surrounds resist UV rays, chemicals, and salt spray for excellent longevity
- The speaker has a 75W power handling capability at 8 ohms to provide a strong performance. It also has a 16W transformer with multiple power taps for use with 70V systems. This provides wide compatibility with a variety of sound systems
- The injection-molded UV-protected ABS cabinet provides lasting good looks and durability with low resonance for excellent audio clarity
- The cabinet features a powder-coated aluminum grille and mounting bracket for long-term use
- The bracket uses hemispherical swivel mounting to make it easy to install, aim, and lock in the position of the speaker
UPC: 765368100716 In the Box Bogen Communications S4T 4.5" High-Performance 2-Way Passive Loudspeaker (White) Mounting Bracket 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications S4T 4.5" High-Performance 2-Way Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications S4TW Specs | Frequency Response | 58Hz - 18kHz (-10dB) | | Woofer | 4.5" (114mm) Metal Composite Cone with MLS Voice Coil Guidance System | | Tweeter | 1" (25mm) Titanium Cone Tweeter | | Sensitivity | 86dB SPL | | Dispersion | 150° x 120° (HxV) | | Impedance | 8 Ohms and 70V | | Power Input | 75W Max @ 8 Ohms | | Transformer | 16W with Taps at 16, 8, 4, 2, and 1W for 70V Systems | | Connectors | Pressure Clamp Terminals | | Cabinet | White Injection-Molded ABS Plastic Cabinet with Matching Powder-Coated Aluminum Grille and Bracket | | Dimensions (WxHxD) | 5.25 x 8.25 x 5.4" (133 x 210 x 137mm) (Without Bracket)
5.25 x 8.25 x 7.4" (133 x 210 x 188mm) (With Bracket) | | Weight | 5.75 lbs (2.61kg) | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 9.6 x 7.9 x 7.7" |
