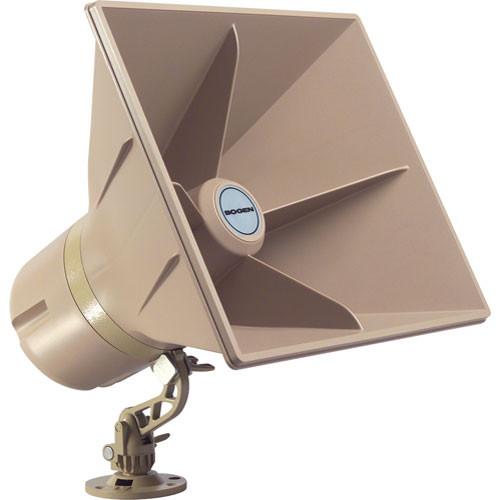

Product description The Bogen Communications SAH15 is a 15W high-efficiency digital switching self-amplified horn offering extended frequency response and versatile positioning for paging, talkback, background music, and security applications in work sites, schools, parking lots, warehouses, and more. With a built-in amplifier, it delivers a 15W output, a maximum SPL of 124 dB, and a frequency response of 275 Hz to 14 kHz while maintaining low heat dissipation and low current draw. It operates via a 24 VDC power source.Its weatherproof, UV-protected lightweight plastic housing ensures reliable durability indoors and outdoors, and can be precisely rotated, tilted, and swiveled via the cast aluminum mount. Attachment to an electrical box is supported with the supplied mounting strap. The screw terminals, which are protected by a removable access cover, ensure simple wiring. The SAH15's volume control is indexed to allow accurate and repeatable level adjustments. - Digital switching amplifier technology provides low DC current draw and heat dissipation compared to conventional analog amplifiers
- Low heat dissipation allows operation with continuous background music and in higher ambient temperatures than conventional analog self-amplified horn speakers
- Extended frequency response from 1.6" diameter voice coil
- Predictable 120 x 90° dispersion pattern over the full frequency range ensures optimal intelligibility and ease of layout
- Rotate, tilt, and swivel speaker positioning
- Weatherproof UV-protected plastic housing
- Simple and secure cast aluminum swivel mount
- Screw terminal strip for easy wire connections
- Indexed volume control knob
- Easily removable access cover
- Includes strap for mounting the horn to an electrical box
- Mount to I-beam flange using Bogen BC1 beam clamp (available separately)
In the Box Bogen Communications SAH15 High-Efficiency Digital Switching Self-Amplified Horn (15W) Mounting Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications SAH15 High-Efficiency Digital Switching Self-Amplified Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications SAH15 Specs | Power Rating | 15 W | | Maximum SPL | 124 dB | | Frequency Response | 275 Hz to 14 kHz | | Input Sensitivity | 125 mVrms | | Input Impedance | 2 kOhms | | Dispersion | 120 x 90° | | Current Consumption | 9 CU / 450 mA typical | | Power Requirement | 24 VDC nominal | | Magnet | Size: 3.5" / 9 cm
Weight: 12 oz / 340.2 g | | Construction Material | Housing: UV-protected plastic
Mount: Cast aluminum | | Voice Coil Diameter | 1.6" / 4.1 cm | | Dimensions (W x H x D) | 10.6 x 12.0 x 11.5" / 27.0 x 30.5 x 29.2 cm | | Weight | 6 lb / 2.7 kg | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 12.0 x 12.0 x 10.0" |
