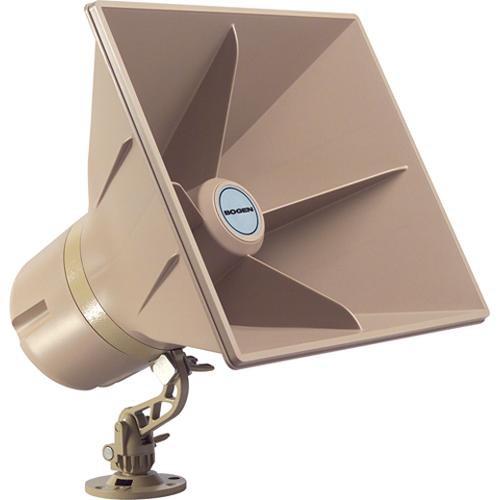

User Manual for Bogen Communications SAH30 High-Efficiency Digital Switching Self-Amplified Horn Click to enlarge the picture
Contents of the user manual for the Bogen Communications SAH30 High-Efficiency Digital Switching
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications SAH30 High-Efficiency Digital Switching contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The Bogen Communications SAH30 is a 30W high-efficiency digital switching self-amplified horn offering extended frequency response and versatile positioning for paging, talkback, background music, and security applications in work sites, schools, parking lots, warehouses, and more. With a built-in amplifier, it delivers a 30W output, a maximum SPL of 127 dB, and a frequency response of 275 Hz to 14 kHz while maintaining low heat dissipation and low current draw. It operates via a 24 VDC power source.Its weatherproof, UV-protected lightweight plastic housing ensures reliable durability indoors and outdoors, and can be precisely rotated, tilted, and swiveled via the cast aluminum mount. Attachment to an electrical box is supported with the supplied mounting strap. The screw terminals, which are protected by a removable access cover, ensure simple wiring. The SAH30's volume control is indexed to allow accurate and repeatable level adjustments. - Digital switching amplifier technology provides low DC current draw and heat dissipation compared to conventional analog amplifiers
- Low heat dissipation allows operation with continuous background music and in higher ambient temperatures than conventional analog self-amplified horn speakers
- Extended frequency response from 1.6" diameter voice coil
- Predictable 120 x 90° dispersion pattern over the full frequency range ensures optimal intelligibility and ease of layout
- Rotate, tilt, and swivel speaker positioning
- Weatherproof UV-protected plastic housing
- Simple and secure cast aluminum swivel mount
- Screw terminal strip for easy wire connections
- Indexed volume control knob
- Easily removable access cover
- Includes strap for mounting the horn to an electrical box
- Mount to I-beam flange using Bogen BC1 beam clamp (available separately)
UPC: 765368360035 In the Box Bogen Communications SAH30 High-Efficiency Digital Switching Self-Amplified Horn (30W) Mounting Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications SAH30 High-Efficiency Digital Switching Self-Amplified Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications SAH30 Specs | Power Rating | 30 W | | Maximum SPL | 127 dB | | Frequency Response | 275 Hz to 14 kHz | | Input Sensitivity | 125 mVrms | | Input Impedance | 2 kOhms | | Dispersion | 120 x 90° | | Current Consumption | 17 CU / 850 mA typical | | Power Requirement | 24 VDC nominal | | Magnet | Size: 3.9" / 10 cm
Weight: 16 oz / 453.6 g | | Construction Material | Housing: UV-protected plastic
Mount: Cast aluminum | | Voice Coil Diameter | 1.6" / 4.1 cm | | Dimensions (W x H x D) | 10.6 x 12.0 x 11.5" / 27.0 x 30.5 x 29.2 cm | | Weight | 6 lb / 2.7 kg | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 13.0 x 12.9 x 11.7" |
