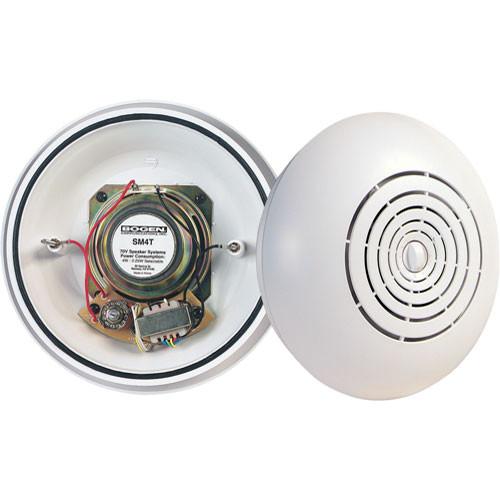

User Manual for Bogen Communications SM4T Easy Install 4W Surface-Mount Speaker Click to enlarge the picture
Contents of the user manual for the Bogen Communications SM4T Easy Install 4W
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications SM4T Easy Install 4W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The off-white Bogen Communications SM4T is an Easy Install series 4W surface-mount speaker in a lightweight ABS plastic shell offering intelligible voice reproduction for paging, talkback, and security applications in schools, warehouses, offices, and more. This multi-tap speaker is compatible with 25 and 70V amplifiers, and delivers a maximum power output of 4W across a frequency range of 125 Hz to 15 kHz with a 120° dispersion angle. A rotary switch grants access to five power tap settings.Easily wire the SM4T using the color-coded mounting studs, and adjust the volume via the front-mounted knob without having to remove the speaker. Mounting hardware is supplied for simple, tool-free installation. - Simple three-step installation process takes less than one minute and requires no tools
- Surface-mount design eliminates need to cut ceiling tile
- Can be installed in any drop ceiling with standard ceiling tiles
- Lightweight and durable plastic shell with a paintable off-white finish
- O-ring seal holds speaker tight to ceiling surface, negating whistling and ensuring smoother sound without peaks
- Compatible with 25 and 70V systems
- Switch-selectable taps at 1/4, 1/2, 1, 2, and 4 watts
- Wire-wound volume control on outside of speaker for easy access
- 125 Hz to 15 kHz frequency response contributes to intelligible voice reproduction
- Direct and reflected sound paths create a wide dispersion angle of 120°
- Color-coded mounting studs identify polarity simplify electrical connections
- Textured studs easily pierce ceiling tile and secure wire nut connections
- Wide-bottom, easy-to-handle mounting wing nuts provide secure speaker mounting
- Compatible with SMTB tile bridge (available separately)
- Includes all necessary mounting hardware
UPC: 765368481778 In the Box Bogen Communications SM4T Easy Install 4W Surface-Mount Speaker (Off-White) Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications SM4T Easy Install 4W Surface-Mount Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications SM4T Specs | Power Rating | 4 W | | Power Taps | Watts at 25 or 70 V: 1/4, 1/2, 1, 2, or 4 | | Frequency Response | 125 Hz to 15 kHz | | Impedance | 25 or 70 V | | Sensitivity | 90 dB SPL (1 W, 1 m) | | Dispersion | 120° | | Input | Mounting studs | | Construction Material | ABS plastic | | Base Diameter | 8.8" / 22.2 cm | | Dimensions (Diam. x Depth) | 9.5 x 3.0" / 24.1 x 7.6 cm | | Weight | 2 lb / 0.9 kg | | Flame Test | 94-5VA | | Compliance | NFPA National Code 160b
UL-2043 | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 10.3 x 10.2 x 5.75" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
