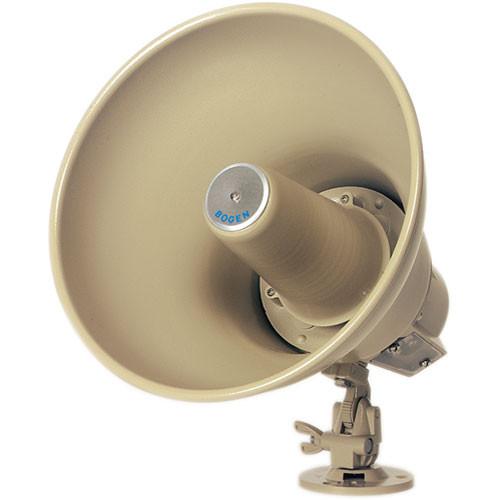

User Manual for Bogen Communications SPT30A 30W Reentrant Horn Loudspeaker for 25V & 70V Amplifiers Click to enlarge the picture
Contents of the user manual for the Bogen Communications SPT30A 30W Reentrant Horn
- Product category: Installed Speakers Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Installed Speakers
|
User manual for the Bogen Communications SPT30A 30W Reentrant Horn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The mocha Bogen Communications SPT30A is a 30W reentrant horn loudspeaker offering intelligible voice reproduction and versatile positioning for paging, talkback, and security applications in work sites, schools, parking lots, warehouses, and more. When connected to a 25V or 70V amplifier (available separately), it delivers a 30W output, a sound pressure level of 125 dB, and a frequency response of 225 Hz to 14 kHz. Impedance and power taps are adjustable via a seven-position rotary selector, which is protected by a plastic cover that also provides cable strain relief.Its weatherproof, all-metal housing ensures reliable durability indoors and outdoors, and can be precisely tilted and swiveled using the sturdy mounting bracket. Banding slots allow mounting to a beam or pillar, and alternative mounting options are supported via separately available accessories. The screw terminal input connections accommodate quick wiring to your constant-voltage amp. The self-aligning diaphragm is field-replaceable. - For use with 25V or 70V constant-voltage amplifiers
- Screw terminal input for simple electrical connections
- Weatherproof metal housing covered in a durable textured enamel finish
- Plastic cover protects connectors and impedance selector, and provides cable strain relief
- 7-position, weather-sealed, rotary tap impedance selector
- Self-aligning, field-replaceable diaphragm
- All-purpose mounting bracket with tilt-and-swivel base provides precise positioning in the vertical and horizontal planes with a single adjustment
- Banding slots allow easy attachment to a beam or pillar
- Mount to I-beam flange using Bogen BC1 beam clamp (available separately)
- Mount to electrical box using Bogen HSES10 mounting strap (available separately)
- Bogen TCSPT1 terminal cover (available separately) enables connection of conduit fittings
UPC: 765368360370 In the Box Bogen Communications SPT30A 30W Reentrant Horn Loudspeaker for 25V & 70V Amplifiers (Mocha) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications SPT30A 30W Reentrant Horn Loudspeaker for 25V & 70V Amplifiers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications SPT30A Specs | Power Rating | 30 W RMS continuous, 40 W equalized | | Power Taps | Watts at 25 V: 1.8, 3.7, 7.5, 15
Watts at 70 V: 1.8, 3.7, 7.5, 15, 30 | | Sound Pressure Level | 125 dB SPL at 4' on axis with 30 W input at 1 kHz | | Frequency Response | 225 Hz to 14 kHz | | Dispersion | 100° | | Impedance | 25 V, 70 V | | Sensitivity | As Microphone: -22 dBm (ref: 10 dynes/cm
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
