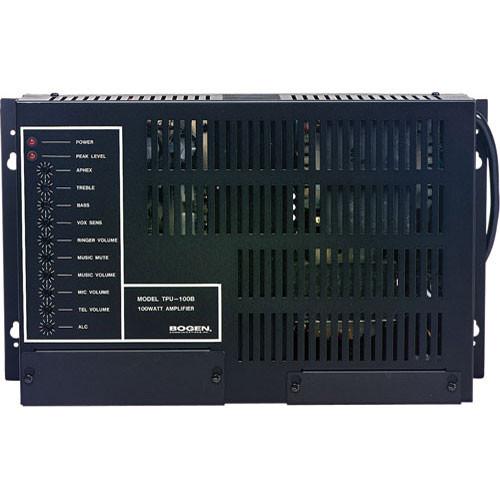

User Manual for Bogen Communications TPU100B - Telephone Paging Amplifier Click to enlarge the picture
Contents of the user manual for the Bogen Communications TPU100B - Telephone Paging
- Product category: Message Announcers & Alerts Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Message Announcers & Alerts
|
User manual for the Bogen Communications TPU100B - Telephone Paging contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The Bogen TPU100B Paging Amplifier features 100 watts of power, is wall mounted and provides inputs for a paging microphone, music source, external telephone ringer, music mute trigger and more. The TPU100B amplifies background music and pages sent via telephone lines in any office setting, retail space, etc.A variable music mute function adjusts the mute level of background music during pages and the on-board Aphex® Aural Exciter feature improves tonal quality and enhances intelligibility of the pages. There is an on-board ALC limiting circuit that prevents overload and distortion due to excessive audio peaks. Separate microphone and music volume controls also provide flexible control over the audio mix. - Choice of outputs include 16-ohm, 25VCT, 25V, 70V balanced or unbalanced
- Choice of inputs include RCA or screw-terminal Music Input, balanced microphone input, music mute trigger, contact ring, telephone ring and ground
- Flat design for easy wall mounting
- Comprehensive dial controls on the front panel
- Music Mute variable level adjustment
- Aphex® Aural Exciter tonal enhancement feature
UPC: 765368200737 In the Box Bogen Communications TPU100B - Telephone Paging Amplifier (100W) 6 x 3/4" Solid Wall Mounting Screws 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications TPU100B - Telephone Paging Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications TPU100B Specs | Inputs | Screw Terminals:
Music Mute, Mic Balanced, GND, TEL, Music In, GND, Contact Ring, Tel RingRCA:
Music and Bridging | | Outputs | Screw Terminals (Removable Panel):
16-ohms, 70V, 25V, 25VCT, COM and GND | | Maximum Amplifier Power | 100W | | Frequency Response | 70Hz to 15kHz +/- 1dB | | Hum & Noise | -70dB (From 20Hz to 20KHz) | | Distortion | Less Than 1% (80Hz to 15kHz) | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 17.0 x 13.0 x 8.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
