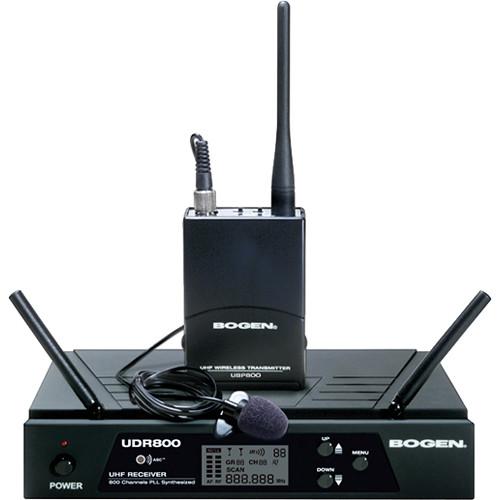

Product description The UDMS800BP from Bogen Communications is a UHF wireless bodypack microphone system which includes the UBP800 bodypack transmitter, a lavalier mic, and the UDR800 UHF receiver. The 800-channel PLL-synthesized UHF receiver offers 800 user-selectable frequencies and the system offers operation up to 500' line-of-sight. - Features:
-
- Includes: UBP800 bodypack transmitter, lavalier mic, and UDR800 UHF receiver
- 800-channel PLL-synthesized UHF receiver offers 800 user-selectable frequencies
- 120 dB dynamic range
- Operation up to 500' line-of-sight
- Locking 3.5mm mini-jack provides secure connection for removable mic
- Audio mute switch for transmitter
- 1/2 rack receiver design
UPC: 765368481945 In the Box Bogen Communications UDMS800BP - UHF Wireless Bodypack Microphone System Bodypack Antenna Lavalier Microphone Clip UBP800 Bodypack Transmitter Lavalier Microphone UDR800 UHF Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications UDMS800BP - UHF Wireless Bodypack Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications UDMS800BP Specs | | | Operating Frequency | 470 MHz - 490 MHz (U.S.)
800 Switchable Channels; 25 kHz/step | | Frequency Stability | <0.005% | | Frequency Response | 50 Hz - 18 kHz +/-3 dB | | Dynamic Range | 120 dB | | Harmonic Distortion | <0.5% | | Modulation | FM(F3E) +/-25 kHz normal, +/-75 kHz max | | Operating Range | 150 - 250' (45.72 - 76.20 m) typical, 500' (152 m) max. line-of-sight | | | | Type | Dual conversion super heterodyne with Digi-True Diversity (dual antennas with optimum reception selected) | | Selectivity | 60 dB, normal +/-75 kHz offset | | Image Rejection | -70 dB, minimum | | Sensitivity | -107 dBm, normal | | Spurious Rejection | 65 dB, normal | | Mute | Adjustable (-65 dBm to -95 dBm), tone squelch 40 kHz | | Controls | Power On/Off push switch, volume line level pot, menu, up/down buttons | | LCD | Mute, AF/RF bars, A/B diversity, IR, GR/CH, mute level, scan, frequency | | LED | Power On | | Audio Outputs | Line out (unbalanced): adjustable line audio output
Mic out (balanced): Fixed mic level output | | Output Impedance | Unbalanced: 1 kΩ and Balanced: for 600 Ω loads | | Antennas | Dual permanently attached swivel antennas | | Construction | ABS plastic | | Power Supply | 22 V DC/0.4 A | | Dimensions (WxHxD) | 7.95 x 1.61 x 5.11" (20.2 x 4.1 x 13 cm) | | Weight | 1 lb (454 g) | | | | RF Output Power | +17 dBm Max, +14 dBm (25 mW typical) | | Spurious Emission | -50 dBc normal | | Input Impedance | 5 kΩ (lavalier); 500 kΩ (instrument) | | Controls | Power and Audio On/Off switches, input level | | Connector | Locking 1/8" (3.5 mm) mini-jack | | LED Display | Bi-Color - Power On (green) and Low Battery On (red) | | Antenna | External removable | | Batteries | Type: 2x AAA alkaline or NiMH | | Construction | ABS plastic | | Cord Length | Lavalier: 4' (1.21 m) long cord | | Dimensions | 2.25 x 3.38 x 1" (5.7 x 8.6 x 2.5 cm) | | Weight | Bodypack: 2.8 oz (79 g)
Lavalier: 0.6 oz (17 g) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 11.9 x 11.2 x 2.3" |
