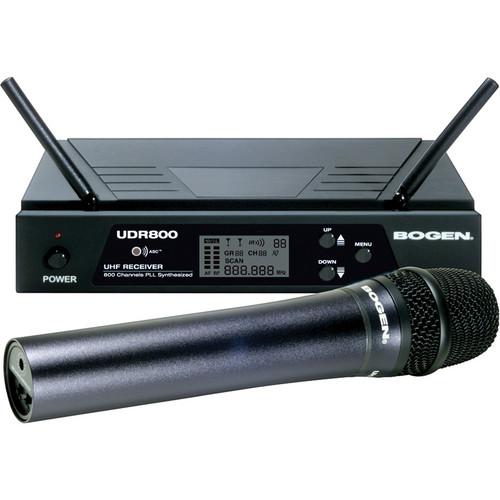

User Manual for Bogen Communications UDMS800HH Handheld Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Bogen Communications UDMS800HH Handheld Wireless Microphone
- Product category: Wireless Transmitters Bogen Communications
- Brand: Bogen Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bogen Communications Wireless Transmitters
|
User manual for the Bogen Communications UDMS800HH Handheld Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bogen Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bogen Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bogen Communications product will considerably shorten its lifespan!
|
Product description The Bogen UDMS800HH Handheld Wireless Microphone System offers an array of professional features at an affordable price. The system includes the Bogen UDR800 UHF receiver and UHT800 handheld microphone transmitter for cable-free speech and performances during presentations, sermons, singing and much more. The system operates on the reliable UHF frequency band, and features up to 800 user selectable frequencies for professional level stability and control. Bogen's DigiTRU Diversity reception minimizes RF noise and frequency drops. ASC auto-sync establishes quick remote channel syncing between the transmitter and receiver, and the rear panel features both microphone and line level outputs. The transmitter will operate for up to 10 hours on AAA alkaline or NiMH batteries. UDR800 UHF Receiver - Unsurpassed state-of-the-art PLL UHF performance with 120dB dynamic range and operation, up to 500' (line-of-sight)
- 800 user-selectable UHF frequencies, one touch Auto-Scan/Sync open channel automatic selection and sync
- ASC (Auto-Sync Channels) download feature sends selected Channel information to transmitter via IR sender for easy frequency synchronization
- Sophisticated IF filtering for optimal simultaneous operation of multiple systems in same location
- DigiTRU Diversity for maximum range and dropout protection
- 120dB Dynamic Range - the quietest and best sounding UHF wireless available at any price
- Tone Squelch for locking out potential interference, and special circuitry for noiseless transmitter on/off switching
- Dual front panel permanently attached swivel antennas
- Front panel with LCD displays A/B diversity, Group/Channel with frequency, ASC transfer status, RF/AF level, Mute (squelch) level, and push On/Off power switch
- Back panel with fixed Balanced XLR, MIC Level and adjustable unbalanced 1/4" jacks, audio line outputs and DC input jack
- Half-rack receiver design with top folding dual antennas
- Unique snap-out side panel locking tabs for single receiver or dual receivers (side-by-side) optional rack mounting (mounting kits sold separately)
- Externally powered with included DC adapter (22VDC 400mA)
UHT800 Handheld Microphone - Sleek metal housing with internal antenna for optimum aesthetics and durable long life
- Unidirectional neodymium dynamic cartridge for optimum sound, maximum feedback rejection, and minimal handling noise
- 800 easily selectable channels via IR Sync for easy synchronization with receiver selected channel
- Easy accessible audio level adjustment for optimum sound
- Power On/Off an dAudio mute switch allows convenient audio muting with the transmitter "On"
- Status LED indicators for unit "On" (Green) and for low battery alert "On" (Red)
- Convenient, economical operation with two AA alkaline or NiMH batteries
UPC: 765368481938 In the Box Bogen Communications UDMS800HH Handheld Wireless Microphone System 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications UDMS800HH Handheld Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications UDMS800HH Specs | | | Operating Frequency | 470MHz - 490MHz (U.S.)
800 Switchable Channels; 25kHz/step | | Frequency Stability | <0.005% | | Frequency Response | 50Hz - 18kHz +/-3dB | | Dynamic Range | 120dB | | Operating Radio Frequency | < 0.5% | | Modulation | FM(F3E) +/-25 kH znormal, +/-75 kHz max | | Operating Range | 150 - 250' (45.72 - 76.20m) typical, 500' (152m) max. line-of-sight | | | | Type | Dual conversion super heterodyne with Digi-True Diversity (dual antennas with optimum reception selected) | | Selectivity | 60dB, normal +/- 75kHz offset | | Image Rejection | -70dB, minimum | | Sensitivity | -107dBm, normal | | Spurious Rejection | 65dB, normal | | Mute | Adjustable (-65dBm to -95dBm), tone squelch 40kHz | | Controls | Power On/Off push switch, volume line level pot, menu, up/downbuttons | | LCD | Mute, AF/RF bars, A/B diversity, IR, GR/CH, mute level, scan, frequency | | LED | Power On | | Audio Outputs | Line out (unbalanced): adjustable line audio output
Mic out (balanced): Fixed mic level output | | Output Impedance | Unbalanced: 1kΩ and Balanced: for 600Ω loads | | Antennas | Dual permanently attached swivel antennas | | Construction | ABS plastic | | Power Supply | 22V DC/0.4A | | Dimensions (WxHxD) | 7.95 x 1.61 x 5.11" (20.2 x 4.1 x 13cm) | | Weight | 1 lb (454g) | | | | Type | UHT800 Handheld | | RF Output Power | +17dBm Max, +14dBm (25mW typical) | | Spurious Emission | -50dBc normal | | Input Impedance | 3.0k Ω | | Controls | Power and Audio On/Off switches, input level | | LED Display | Bi-Color - Power On (green) and Low Battery On (red) | | Antenna | Integral | | Batteries | Type: 2x AAA alkaline or NiMH
8 - 10 hours | | Construction | Metal | | Dimensions (LxDiameter) | 9 x 2" (23.1 x 5.1cm) | | Weight | 10 oz (283g) | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 11.811 x 11.26 x 2.284" |
