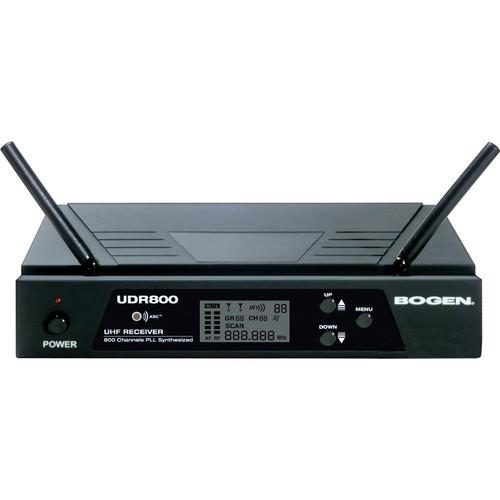

Product description The Bogen UDR800 UHF Wireless Microphone Receiver is used in the UDMS800 wireless microphone systems. The receiver operates on the reliable UHF frequency band, and features up to 800 user selectable frequencies for professional level stability and control. Bogen's DigiTRU Diversity reception minimizes RF noise and frequency drops. ASC auto-sync establishes quick remote channel syncing between the transmitter and receiver, and the rear panel features both microphone and line level outputs. - Unsurpassed state-of-the-art PLL UHF performance with 120dB dynamic range and operation, up to 500' (line-of-sight)
- 800 user-selectable UHF frequencies, one touch Auto-Scan/Sync open channel automatic selection and sync
- ASC (Auto-Sync Channels) download feature sends selected Channel information to transmitter via IR sender for easy frequency synchronization
- Sophisticated IF filtering for optimal simultaneous operation of multiple systems in same location
- DigiTRU Diversity for maximum range and dropout protection
- 120dB Dynamic Range - the quietest and best sounding UHF wireless available at any price
- Tone Squelch for locking out potential interference, and special circuitry for noiseless transmitter on/off switching
- Dual front panel permanently attached swivel antennas
- Front panel with LCD displays A/B diversity, Group/Channel with frequency, ASC transfer status, RF/AF level, Mute (squelch) level, and push On/Off power switch
- Back panel with fixed Balanced XLR, MIC Level and adjustable unbalanced 1/4" jacks, audio line outputs and DC input jack
- Half-rack receiver design with top folding dual antennas
- Unique snap-out side panel locking tabs for single receiver or dual receivers (side-by-side) optional rack mounting (mounting kits sold separately)
- Externally powered with included DC adapter (22VDC 400mA)
UPC: 765368481952 In the Box Bogen Communications UDR800 UHF Wireless Microphone Receiver 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bogen Communications UDR800 UHF Wireless Microphone Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBogen Communications UDR800 Specs | Type | Dual conversion super heterodyne with Digi-True Diversity (dual antennas with optimum reception selected) | | Selectivity | 60dB, normal +/- 75kHz offset | | Image Rejection | -70dB, minimum | | Sensitivity | -107dBm, normal | | Spurious Rejection | 65dB, normal | | Mute | Adjustable (-65dBm to -95dBm), tone squelch 40kHz | | Controls | Power On/Off push switch, volume line level pot, menu, up/downbuttons | | LCD | Mute, AF/RF bars, A/B diversity, IR, GR/CH, mute level, scan, frequency | | LED | Power On | | Audio Outputs | Line out (unbalanced): adjustable line audio output
Mic out (balanced): Fixed mic level output | | Output Impedance | Unbalanced: 1kΩ and Balanced: for 600Ω loads | | Antennas | Dual permanently attached swivel antennas | | Construction | ABS plastic | | Power Supply | 22V DC/0.4A | | Dimensions (WxHxD) | 7.95 x 1.61 x 5.11" (20.2 x 4.1 x 13cm) | | Weight | 1 lb (454g) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 11.732 x 11.102 x 2.284" |
